Altronix TROVE2 ALTX/KISI 16DR/PTC/220V - T2KE33F16DV

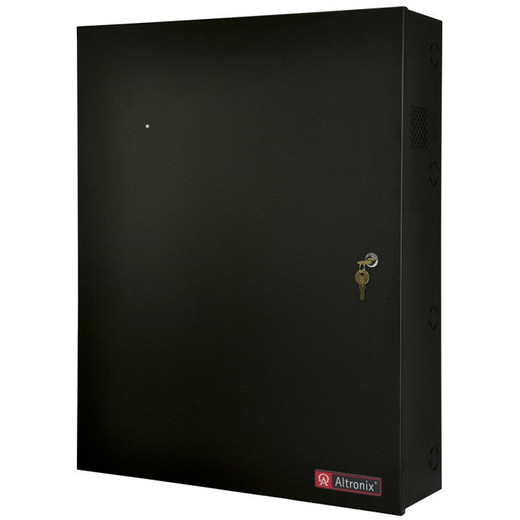

Altronix T2KE33F16DV Integrated Access Control Power Chassis

Overview

The Altronix T2KE33F16DV is a specialized power integration chassis designed to consolidate power distribution and battery backup for up to 16 doors of access control systems. It simplifies installation by providing a single point for power management, reducing wiring complexity and cabinet space. This unit is ideal for medium to large commercial installations requiring robust and organized power for multiple access points. The T2KE33F16DV model specifically addresses the need for integrated power and protection for systems utilizing 220V input.

Compatibility

This chassis is engineered to integrate seamlessly with Altronix power distribution modules and access control power distribution boards. It is designed to work with various access control systems that require centralized power, including but not limited to those from manufacturers like HID, Mercury Security, and other systems utilizing standard 12VDC or 24VDC power inputs. Specifically, it is compatible with Altronix sub-assemblies like the ALTX/KISI series boards for 16-door configurations and PTC protected output modules.

Installation Notes

The T2KE33F16DV requires a 220VAC input power source. Installation involves mounting the chassis, connecting the main AC power, installing compatible Altronix power distribution boards (e.g., ALTX/KISI series) and PTC output modules, and then wiring the access control readers, locks, and controllers to the respective outputs. Ensure proper grounding and adherence to local electrical codes. The unit is designed for cabinet or wall mounting.

What's in the Box

• 1x Altronix T2KE33F16DV Chassis
• 1x Mounting Template
• 1x Installation Manual
