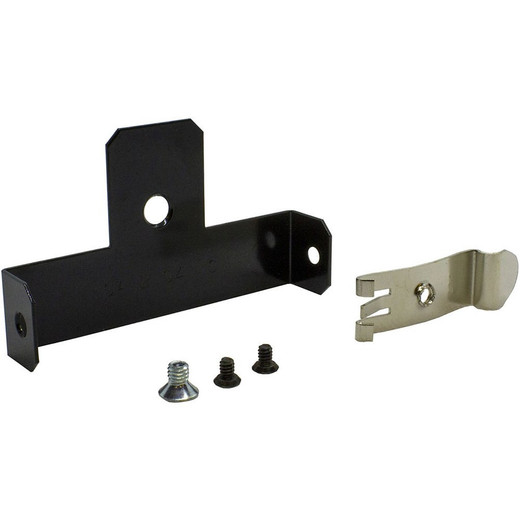

Transition Networks WMBD-F DIN Rail Flat Wall Mount Kit

Overview

The Transition Networks WMBD-F is a flat wall mount adapter designed to securely attach devices that utilize a DIN rail mounting system to a flat vertical surface. This accessory is essential for installations where a standard DIN rail is not available or practical, allowing for flexible deployment of media converters, network switches, or other industrial control equipment in structured wiring closets, control panels, or wall-mounted enclosures. The WMBD-F provides a stable platform for the WMBD-F model, ensuring reliable operation in commercial and industrial environments.

Compatibility

This mount is specifically designed for Transition Networks media converters that feature DIN rail mounting capabilities. It is compatible with devices that have a standard 35mm DIN rail interface, enabling them to be affixed to flat surfaces. While the primary use is with Transition Networks products, it can accommodate any device with a compatible DIN rail form factor.

Installation Notes

Installation involves securing the WMBD-F adapter to a flat wall or panel using appropriate fasteners (not included). Once the adapter is mounted, the compatible Transition Networks device can be slid onto the integrated DIN rail. Ensure the mounting surface is structurally sound to support the weight of the device and any associated cabling. The flat profile of the mount minimizes protrusion from the wall.

What's in the Box

• 1x WMBD-F DIN Rail Flat Wall Mount Kit
