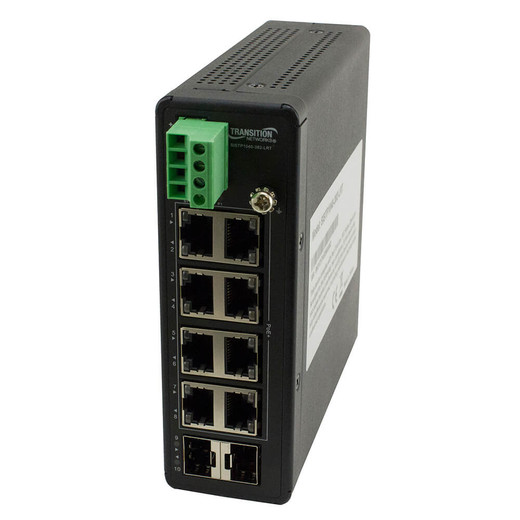

Transition Networks SISTP1040-382-LRT 8-Port Gigabit PoE+ Switch
Overview
The Transition Networks SISTP1040-382-LRT is an 8-port unmanaged gigabit ethernet switch with integrated PoE+ power delivery, purpose-built for field deployment in security, surveillance, and remote infrastructure applications. Because it requires zero configuration, the SISTP1040-382-LRT (often searched as SISTP1040 382 LRT) deploys in minutes — no management console, no firmware updates, no learning curve. Plug in power, connect cameras or access points, and run. This matters when you're commissioning IP cameras across a warehouse perimeter or wiring up access control nodes in a distributed site.
Key Features
- 8 Gigabit Ethernet Ports with PoE+: Each port delivers full 1 Gbps bandwidth and up to 30W per port via IEEE 802.3at+ PoE+. That's enough to power a mid-range IP camera (typically 10–20W) plus deliver video data on the same cable — eliminates the need for separate power runs on the camera side.
- Unmanaged Architecture: No VLAN configuration, no port mirroring setup, no SNMP traps to configure. The switch learns MAC addresses automatically and forwards traffic intelligently. Ideal when your integration team is stretched thin or the site lacks IT infrastructure expertise.
- Plug-and-Play Deployment: Power on, and it works. No boot delays, no IP address assignment to the switch itself, no management access required. Reduces on-site labor — critical for remote or temporary installations.
- Low Latency: Unmanaged switches introduce minimal latency because they don't process every frame through a CPU. For real-time surveillance or access control, that's a tangible advantage over legacy hub-based systems.
- Compact Form Factor: Desktop or DIN-rail mountable footprint fits into small junction boxes or equipment closets without taking up a full rack shelf. Saves floor space in retrofit installations.
- 5-Year Limited Warranty: Covers hardware defects and manufacturing faults, providing predictable replacement cost if a port fails or a power supply goes bad.
Integration & Compatibility
The SISTP1040-382-LRT connects to any standard 10/100/1000Base-T device: IP cameras, wireless access points, IP intercoms, badge readers, network printers, and edge recording devices. Because it's unmanaged, it works transparently upstream — no special configuration needed on a managed switch or router to accept traffic from the SISTP1040-382-LRT. Deploy it as a local aggregation point in a larger surveillance network, or as a standalone PoE hub for a small remote site. For larger deployments, consider a managed network switch if you need VLAN segmentation, QoS, or traffic prioritization across dozens of cameras.
When to Choose a Different Model
If you need VLAN isolation, port mirroring to a monitoring port, or bandwidth management across different traffic types, the SISTP1040-382-LRT is not the right choice — step up to Transition Networks' managed gigabit switch line. If your deployment requires redundant uplinks or a larger port count (16, 24, or 48 ports), you'll want a different family member or a carrier-grade access switch. For sites where powering fewer than 4 cameras, a smaller 4-port PoE switch may reduce costs without sacrificing capability.
Frequently Asked Questions
Q: Can I daisy-chain multiple SISTP1040-382-LRT switches?
A: Yes. Connect one port from the first switch to a port on the second switch, and they will forward traffic between domains automatically. No management needed, but keep in mind that daisy-chaining reduces the available bandwidth for each additional switch in the chain.
Q: What's the total power budget on the SISTP1040-382-LRT?
A: Each PoE+ port supplies up to 30W. If you're running eight cameras at 15W each, you'll need 120W total — confirm your external power supply supports that headroom before installation.
Q: Does the SISTP1040-382-LRT support VLAN tagging?
A: No. It is an unmanaged switch, so it does not process VLAN tags. All ports operate in a single broadcast domain. If you need traffic isolation, select a managed switch instead.
Q: Is the SISTP1040-382-LRT suitable for outdoor use?
A: The switch itself is rated for indoor use. If you need to deploy it in a weatherproof enclosure, use an external industrial cabinet or DIN-rail enclosure rated for your climate zone.
Q: What happens if PoE power is lost on one port?
A: That port will stop delivering power to the connected device, but the switch will continue to operate normally on all other ports. No port shutdown or reset.
Q: Can I use the SISTP1040-382-LRT with a PoE injector on the uplink?
A: Yes. If your upstream connection does not support PoE, insert a PoE injector or a PoE+ powered device on the uplink port, and the switch will pass power to all downstream ports normally.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SISTP1040-382-LRT hits a practical sweet spot for distributed surveillance and access control networks where managed switching overhead is overhead you don't want. Eight gigabit PoE+ ports mean you can power and connect eight cameras (or a mix of cameras, access points, and readers) with a single external 12VDC or AC power input — no per-port power supplies, no cable clutter. The unmanaged architecture is a feature, not a limitation: it removes configuration complexity and eliminates a potential failure point (switch firmware crashes or lockups). That matters when you're supporting remote sites where hands-on IT expertise is limited.
Technical Highlights:
- IEEE 802.3at+ PoE+ at 30W per port: Sufficient for most mid-to-high power IP cameras (Axis P32 series, Hikvision 4K domes, Bosch MIC series) plus bandwidth headroom. At full utilization (all eight ports), you need a robust external power supply — don't skimp on wall adapter quality.
- Zero-touch operation: No IP address assignment, no login credentials, no firmware patches — the switch works the moment power and ethernet are connected. Saves 30–45 minutes per site during initial deployment and handover.
- Gigabit backplane with low latency: Unmanaged switches forward frames at wire speed without CPU intervention. For real-time video and alarm signaling, this means no queuing delays or dropped packets due to processing overhead.
Deployment Considerations:
- No VLAN support or traffic isolation — if you need segmentation between guest, camera, and access control networks, this is not your switch. You'll need a managed alternative.
- Power budget discipline: Eight 25W cameras = 200W total. Verify your external power supply (and the circuit breaker feeding it) can handle sustained load. Undersized power is a common on-site failure mode.
Best fit: branch office surveillance with 4–8 cameras, warehouse perimeter camera clusters, retail multi-door access control hubs, and telecom backhaul aggregation where you want plug-and-play reliability over advanced switching features. Deploy the SISTP1040-382-LRT when your installation team values speed and simplicity over management granularity.
