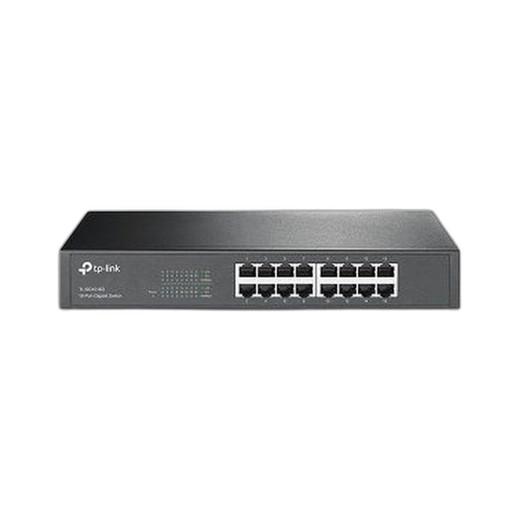

TP-Link TL-SG1016D Switch Desktop/Rackmount 16 10/100/1000M

TP-Link TL-SG1016D 16-Port Gigabit Unmanaged Switch

Overview

The TL-SG1016D is a 16-port Gigabit Ethernet switch designed for straightforward network expansion in surveillance and enterprise deployments. All 16 ports operate at 10/100/1000 Mbps, delivering 32 Gbps aggregate switching capacity — sufficient to handle simultaneous streaming from multiple IP cameras without bottlenecking. As an unmanaged switch, it requires no configuration: plug in power, connect ports, and it operates immediately. The 13-inch steel chassis supports both desktop placement and standard 19-inch rackmount installation, making it flexible for control room deployments or equipment rack consolidation.

Typical Deployment Scenarios

Deploy the TL-SG1016D to extend an existing network switch infrastructure where port capacity is exhausted, or as a primary switch in smaller multi-camera surveillance systems (up to 8–10 concurrent IP cameras per gigabit link, depending on bitrate and codec). Pairs well with PoE injectors or dedicated PoE switches when cameras lack onboard power supplies. Common in warehouse automation environments requiring multiple device connections — cameras, access control readers, wireless access points, and sensor gateways.

Key Specifications

• Port Count & Speed: 16 × 10/100/1000 Mbps RJ45 ports. Gigabit throughput ensures 4K video streams and high-frequency sensor data flow without congestion.
• Switching Capacity: 32 Gbps aggregate. Adequate for medium-scale IP surveillance (10–15 cameras in typical HD/4K configurations).
• Form Factor: 13-inch steel case; rackmount-ready. Allows integration into existing equipment racks or tabletop deployment in control rooms.
• Power: AC external adapter (specific voltage not detailed in available evidence). Verify power draw against facility breaker capacity in large deployments.
• Unmanaged Operation: No VLAN, QoS, or SNMP configuration. Ideal for plug-and-play environments; unsuitable for networks requiring traffic segmentation or priority management.

When to Choose a Different Model

If your deployment requires VLAN isolation between camera subnets and office networks, or if you need to monitor port statistics and configure priority queuing for critical feeds, consider a managed switch variant within the TP-Link line. For applications demanding redundant uplinks or fiber connectivity, evaluate models with SFP expansion slots.
