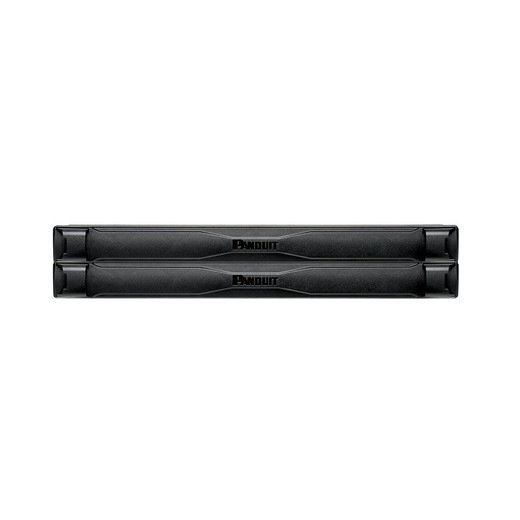

Panduit TLBP2S-V Tool-less Blanking Panel

Bypass airflow is the silent killer of datacenter cooling efficiency. When hot exhaust air recirculates through empty rack spaces back to equipment intakes, CRAC systems work overtime while servers still overheat. The Panduit TLBP2S-V eliminates this waste with a 2 RU tool-less blanking panel engineered for instant installation in 19-inch racks. Molded ABS construction with integrated sealing vanes blocks bypass air between rack units, forcing proper front-to-back airflow through your equipment. Snap-in mounting to square-hole cage nut rails means no tools, no threading screws, no wasted labor—five panels install in under two minutes.

Key Features

• Tool-less snap-in installation — mounts to standard 19" square-hole cage nut rails without screws or tools; accelerates deployment and allows instant reconfiguration
• Integrated sealing vanes — flexible seals between rack units prevent bypass air leakage at panel edges; maintains thermal separation even on uneven rail spacing
• 2 RU coverage — 3.47" (88.1mm) height fills two rack units per panel; 5-pack quantity covers 10U of unused space in a single order
• Non-metallic ABS construction — lightweight, corrosion-resistant material; black finish matches standard rack aesthetics without adding significant weight to rail load
• CEA 310-E compliant design — meets industry-standard rack equipment specifications; guaranteed fit on any EIA-compliant 19" rack or cabinet
• RoHS compliant materials — meets environmental regulations for datacenter and enterprise installations globally

Installation velocity matters when you're filling 42U racks or retrofitting live datacenters during maintenance windows. The TLBP2S-V's tool-less design uses molded retention clips that engage square-hole cage nut rails with hand pressure alone—no screwdriver, no cage nuts to drop, no fumbling with loose hardware in the back of a hot-aisle rack. The 19.0" (482mm) width spans the full rack opening with minimal side clearance, while the integrated sealing vanes—flexible ribs molded into the top and bottom edges—compress against adjacent equipment or panels to block even sub-millimeter air gaps. This isn't cosmetic; sealing vanes prevent the low-pressure zone behind equipment from pulling bypass air through panel joints, a failure mode that undermines even fully-populated blanking strategies. ABS material keeps each panel under 1 lb, so loading ten panels (20U) adds negligible static load to rails already supporting switches, servers, and UPS systems. Black matte finish disappears visually in dim datacenters, maintaining a clean professional look without the reflection or fingerprint issues of glossy faceplates.

Bypass airflow costs real money. Studies show that every 1°F increase in server intake temperature driven by hot-aisle recirculation increases CRAC compressor runtime by approximately 2-4%, compounding energy waste across hundreds or thousands of rack units. The TLBP2S-V blocks this recirculation path by forcing exhaust air to exit the hot aisle and return through the CRAC system's designed cooling cycle, rather than short-circuiting back to equipment intakes through empty rack slots. Deployment contexts include new datacenter builds (blank panels ship with racks and install as equipment rolls out incrementally), retrofit energy-efficiency projects (fill unused spaces in legacy racks to recover cooling capacity without adding CRAC tonnage), and multi-tenant colocation environments where rack density and airflow discipline directly impact PUE and operating cost. The 5-panel pack covers 10U of space—enough to fill the gap above a half-populated 42U rack or handle multiple smaller voids across several cabinets. For hyperscale or wholesale datacenter operators managing thousands of racks, the tool-less design cuts labor cost per panel from ~3 minutes (screw-mount) to under 30 seconds, a 6× labor multiplier that justifies higher unit cost on large-scale deployments.

CEA 310-E compliance guarantees compatibility with any standards-compliant 19" rack, including APC NetShelter, Chatsworth, Panduit Net-Access, HP, Dell, and open-frame telco racks using square-hole cage nut rails. The TLBP2S-V does not fit round-hole racks (use Panduit's threaded-screw blanking panels for round-hole applications) or toolless rail systems that lack cage nuts (verify rail type before ordering). RoHS compliance satisfies environmental procurement requirements for enterprises, government, and EU-based datacenters. For datacenter managers and infrastructure teams responsible for PUE targets, cooling budgets, and thermal compliance, the TLBP2S-V is a first-line defense against the hidden energy tax of bypass airflow—simple, fast, and engineered to stay in place through years of rack churn and reconfigurations.
