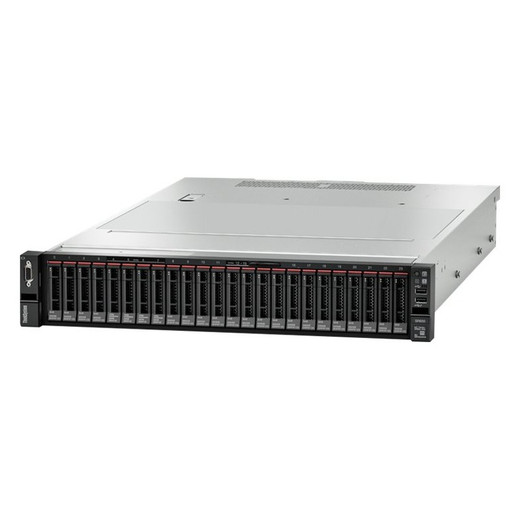

Lenovo Thinksystem SR650 4210 64GBX2 - 7X06A0M1NA

Lenovo 7X06A0M1NA Server Chassis

Overview

The Lenovo ThinkSystem SR650 server chassis, model 7X06A0M1NA, is a 2U rack-mount enclosure designed for robust server deployments requiring flexible I/O and a durable build. It provides the foundational structure for high-performance computing environments, supporting up to two Intel Xeon Scalable processors and extensive DDR4 memory configurations. This chassis is engineered for demanding enterprise workloads, offering hot-swap capabilities for drives, power supplies, and fans to minimize downtime.

Compatibility

This 7X06A0M1NA chassis is compatible with Lenovo ThinkSystem SR650 servers utilizing Machine Type 7X06, which includes a three-year warranty. It supports Intel C624 chipset-based configurations with 1st Gen Intel Xeon SP processors. Specific compatibility extends to various 2.5" and 3.5" drive bay configurations (BMN6, AUVV, BMNF, AUVX) and requires an external USB DVD RW Optical Disk Drive if optical media support is needed. It is designed to run enterprise operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi.

Installation Notes

The chassis dimensions are 445 mm (17.5 in.) width, 87 mm (3.4 in.) height, and 764 mm (30.1 in.) depth, fitting standard 2U rack spaces. It features five or six hot-swap system fans with N+1 redundancy for optimal cooling. The integrated Matrox G200e video controller supports a maximum resolution of 1920x1200 at 60 Hz. Minimum configuration weight is 19 kg (41.9 lb), with a maximum of 32 kg (70.5 lb).
