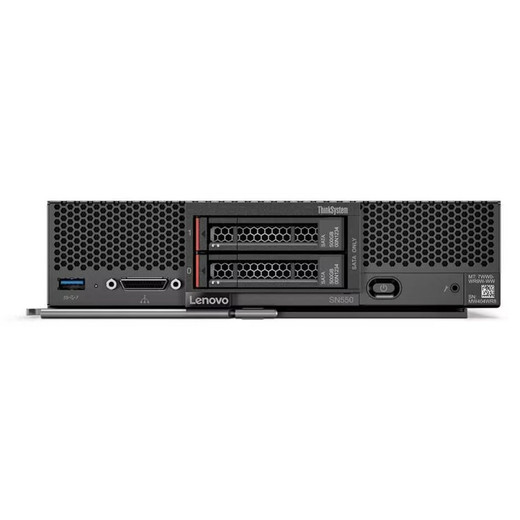

Lenovo Thinksystem SN550 4110 16G - 7X16A00ANA

Lenovo 7X16A00ANA Compute Node

Overview

The Lenovo 7X16A00ANA is a standard-width compute node designed for deployment within a Lenovo Flex System Enterprise Chassis with CMM2. It offers a robust platform for server consolidation, providing significant memory capacity and storage options within a dense form factor. This node is suitable for environments requiring expandable compute resources integrated into a unified chassis management system.

Compatibility

This compute node is specifically designed for the Lenovo Flex System Enterprise Chassis with CMM2. It requires compatible Lenovo TruDDR4 DIMMs and is compatible with Intel C624 chipset-based processors. The front panel includes one USB 3.0 port and a console breakout cable port for local KVM and serial access, with the breakout cable being standard with the chassis.

Installation Notes

The node utilizes two 2.5-inch hot-swap drive bays, supporting SSDs or HDDs with options for SATA, SAS/SATA, or NVMe/SATA configurations. Optional support for up to two M.2 SSDs is available. Memory configuration requires careful attention, as RDIMMs, LRDIMMs, and 3DS RDIMMs are supported but cannot be intermixed. Memory protection features include ECC, SDDC, ADDDC (with specific processors), memory mirroring, and sparing.
