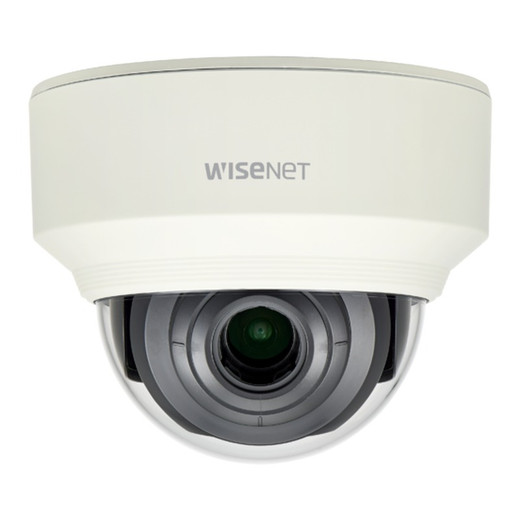

Hanwha XNV-8093R/KEX 6MP Vandal-Resistant Dome Camera
The Hanwha XNV-8093R/KEX is a TAA-compliant 6MP outdoor dome camera engineered for high-security environments where durability, image clarity, and reliable 24/7 operation are non-negotiable. Built to withstand physical abuse and harsh weather, this camera delivers institutional-grade surveillance performance for perimeter security, critical infrastructure, and vandalism-prone locations.
Key Features
- 6MP resolution at 30 fps with H.265, H.264, and MJPEG codec support for optimized bandwidth and storage management
- Motorized varifocal lens (10.9–29mm, 2.7x zoom) with remote focus and zoom control for precise framing without physical access
- 70-meter IR illumination with Wise IR technology for effective night vision in total darkness
- 0.06 Lux color sensitivity and 0 Lux IR operation enabling continuous 24/7 color and monochrome capture
- Extreme Wide Dynamic Range (120dB WDR) to preserve detail in challenging high-contrast and backlit scenes
- IK10 vandal rating and IP67 environmental sealing for dust-tight outdoor operation
- PoE+ (802.3at Class 4) power delivery via standard Ethernet cabling
- ONVIF-compatible for seamless integration with third-party VMS platforms
- microSD local storage support for edge recording and failover
- HTTPS encryption and secure authentication protocols
Technical Specifications
Optics & Imaging: The motorized varifocal lens delivers flexible focal length adjustment from 10.9mm to 29mm, enabling operators to optimize field of view remotely. Native 6MP sensor resolution captures fine detail, while multiple codec support (H.265, H.264, MJPEG) allows organizations to balance compression efficiency with latency requirements. WDR capability (120dB) handles mixed lighting and high-contrast scenes common in outdoor surveillance.
Night Vision & Low-Light: The camera's dual-channel IR illumination extends visible range to 70 meters in complete darkness. Low-light color sensitivity of 0.06 Lux ensures usable color video before IR activation, while 0 Lux IR mode provides monochrome capture when ambient light is absent.
Durability & Environmental Protection: IP67 rating guarantees sealed enclosure against dust and water ingress, while IK10 impact resistance withstands high-force vandalism attempts. The hard-coated dome bubble provides additional mechanical protection. NEMA 4X environmental classification confirms suitability for outdoor, corrosive, and high-moisture environments.
Connectivity & Power: Single-cable PoE+ (802.3at Class 4) installation simplifies deployment and eliminates separate power infrastructure. Ethernet and USB connectivity support diverse integration workflows.
Ideal Applications
- Perimeter security for ports, airports, and critical infrastructure
- High-vandalism-risk outdoor areas requiring impact-resistant cameras
- Facilities requiring TAA-compliant equipment for government and institutional projects
- Continuous 24/7 surveillance in remote locations with minimal maintenance access
- Environments demanding ONVIF interoperability with existing VMS ecosystems
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XNV-8093R/KEX represents a purpose-built solution for outdoor security deployments where environmental exposure and deliberate tampering are operational concerns. The IK10 vandal rating and IP67 sealing position this camera in the premium durability category—suitable for transit hubs, government facilities, and utility infrastructure where camera replacement costs and service downtime create operational and financial risk. The motorized varifocal lens eliminates the need for physical site visits to adjust framing, reducing labor overhead in large-scale multi-camera rollouts.
H.265 codec support delivers approximately 50% better compression than H.264 at equivalent quality, a meaningful advantage for organizations managing high-resolution streams across bandwidth-constrained networks. TAA compliance broadens addressability to public sector buyers subject to federal procurement requirements. ONVIF compatibility ensures this camera functions as a plug-compatible component within heterogeneous VMS platforms, protecting investment in existing infrastructure.
For integrators, the combination of PoE+ simplicity, local microSD failover, and HTTPS encryption aligns with modern security architecture best practices.
