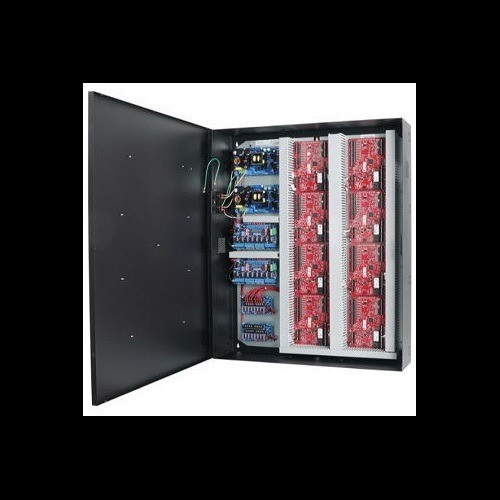

Altronix T3M77LXK3 Surveillance Power and Integration Kit

Overview

The Altronix T3M77LXK3 is a comprehensive kit designed to consolidate power distribution, access control integration, and network management for surveillance systems. It bundles key Altronix components into a single solution, streamlining the deployment of complex security installations by reducing the number of individual parts required and simplifying the initial setup. This kit is particularly suited for environments requiring centralized control and reliable power for multiple devices, such as commercial buildings or large retail spaces.

Compatibility

This kit includes the following Altronix components: 1x Trove3 enclosure, 1x TM3 backplate, 2x AL1024ULXB2 power distribution modules, 2x ACMS8 access control modules, 2x VR6 voltage regulators, 2x PDS8 power distribution boards, and 1x RSB2 relay switch module. This combination is engineered to work seamlessly together within the Trove3 enclosure for integrated power and access control management. It is designed for use with Altronix power supplies and accessories.

Installation Notes

The T3M77LXK3 kit requires assembly within the provided Trove3 enclosure. The AL1024ULXB2 modules offer 24VDC output with 8 supervised outputs each, suitable for powering cameras and other surveillance equipment. The ACMS8 modules provide 8 fused outputs for access control devices, while the VR6 regulators allow for adjustable voltage outputs. The PDS8 boards offer additional power distribution points. Proper wiring and grounding are essential for system stability and safety. Consult individual component datasheets for detailed electrical specifications and wiring diagrams.
