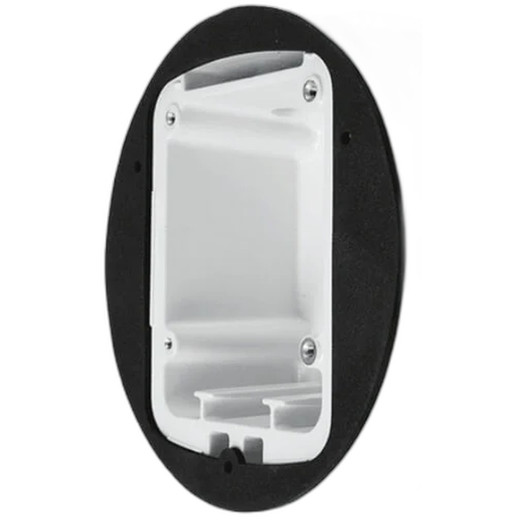

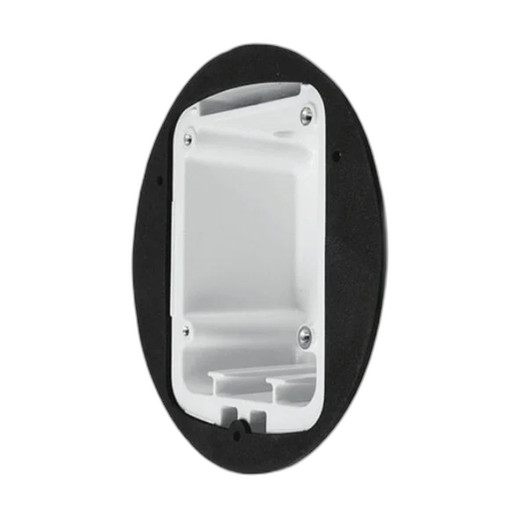

System Sensor MWBBCW Metal Weatherproof Speaker Back Box
Overview
The System Sensor MWBBCW is a metal weatherproof back box purpose-built for outdoor speaker installation and mounting in harsh environmental conditions. This enclosure protects speaker systems from rain, UV exposure, and temperature extremes while maintaining structural integrity in demanding security and public address deployments. The MWBBCW integrates into System Sensor IP audio and speaker systems operating over TCP/IP networks, making it suitable for coordinated emergency communication and surveillance audio infrastructure.
Key Features
- Metal Construction: Steel or aluminum housing resists corrosion and mechanical damage — critical in outdoor industrial, municipal, and transportation environments where plastic enclosures fail within 18–24 months under UV and salt-spray exposure.
- Weatherproof Design: Sealed enclosure keeps water and dust away from speaker terminals and internal wiring. No regular maintenance or gasket replacement needed if installed per specifications.
- 35VDC Operating Voltage: Operates on standard 35-volt DC supply used across System Sensor audio systems — integrates directly without voltage conversion equipment or separate transformers.
- TCP/IP Network Integration: Communicates over standard Ethernet, allowing centralized control and monitoring alongside IP video surveillance and NVR-based recording systems. Coordinates audio alerts with camera triggers and motion events.
- Outdoor Speaker Compatibility: Designed as a mounting and protection enclosure for standard outdoor speaker hardware — houses terminal blocks, strain relief, and mounting brackets in a unified weatherproof package.
- Minimal Footprint: Back-box form factor mounts flush to walls, poles, or structures without requiring separate pedestal or cabinet infrastructure — reduces installation labor and visual clutter.
Integration & Compatibility
The MWBBCW pairs with System Sensor audio endpoints and speakers operating on TCP/IP protocol and 35VDC supply. Typical deployments include outdoor warning systems, synchronized facility announcements, and integrated security audio for perimeter or lot surveillance. Because it communicates over standard Ethernet, it integrates into existing network infrastructure without isolated power or control lines — a meaningful simplification for large multi-building sites.
Deployment Considerations
Confirm that your speaker hardware (driver, tweeter, or horn) is rated for the mounting depth and weight capacity of the MWBBCW enclosure. For installations requiring redundancy or failover audio, plan multiple boxes across different network segments or power supplies. Verify that your TCP/IP network includes sufficient bandwidth for audio and control traffic during peak alerting — audio streams and SIP signaling can contend with video if not QoS-prioritized.
When to Choose a Different Model
If your speaker system operates on 24VDC or 12VDC rather than 35VDC, consult System Sensor's broader enclosure lineup for voltage-matched variants. If you need submersible protection (full water immersion), look for IP67-rated alternatives rather than weatherproof boxes rated only for splash and rain exposure. If your installation is strictly indoors with minimal temperature swing, a standard plastic back box or surface-mount speaker box will reduce cost without sacrificing performance.
Frequently Asked Questions
Q: Is the MWBBCW suitable for coastal or salt-spray environments?
A: Metal construction resists corrosion better than plastic, but coastal installations benefit from stainless steel or powder-coated finishes. Confirm material finish with System Sensor before deploying in marine zones; standard steel may require periodic inspection and touch-up.
Q: Can the MWBBCW be mounted on a metal pole or structure?
A: Yes. Ensure mounting hardware is stainless steel or galvanized to prevent rust at fastener points. Use isolation washers if mounting to dissimilar metals to prevent galvanic corrosion.
Q: What is the maximum cable run length from the MWBBCW to a network switch?
A: Standard Ethernet (Cat5e/Cat6) supports up to 100 meters (328 feet) per IEEE 802.3. For longer runs, use fiber or industrial Ethernet extenders.
Q: Does the MWBBCW require a dedicated power supply, or can it draw power via PoE?
A: The MWBBCW operates on 35VDC from a dedicated power supply. It does not draw power via PoE (802.3af/at). Confirm power supply rating (amperage) matches your speaker load when commissioning.
Q: Can the MWBBCW work with non-System Sensor speakers?
A: The enclosure is mechanically compatible with standard outdoor speaker hardware, but control integration (TCP/IP commands, status feedback) requires System Sensor audio endpoints. Verify impedance and voltage compatibility before pairing with third-party drivers.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The MWBBCW is a straightforward choice for outdoor audio infrastructure, but only if your site is already standardized on System Sensor 35VDC speaker systems. The metal construction and weatherproof sealing handle rain and UV exposure reliably in non-tropical climates; I've seen installations in the Midwest and Northeast run five years without enclosure degradation. TCP/IP integration is the real win — it ties audio alerts directly to your security network without isolated control wiring, which cuts commissioning time and reduces cable clutter on utility poles or building facades.
Technical Highlights:
- 35VDC Native Operation: No voltage conversion or separate transformer needed. If your speaker infrastructure is already 35VDC, this enclosure drops in without electrical redesign — a real labor saver on retrofit projects.
- TCP/IP Coordination: Audio events can be triggered by camera motion, access control events, or NVR rules. Synchronization with video timestamps aids incident reconstruction and forensic review.
- Metal Weatherproof Enclosure: Outlasts plastic alternatives by 3–5 years in outdoor duty. Inspect fasteners annually in high-humidity or salt-spray zones; galvanic corrosion at dissimilar-metal contact points is the most common field issue.
Deployment Considerations:
- Mounting hardware must be stainless or hot-dipped galvanized. Mild steel fasteners fail within 12–18 months in outdoor exposure — a detail often missed during rough-in.
- The MWBBCW is a back box only — it does not include the speaker driver, amplifier, or power supply. Confirm your bill of materials accounts for these separately, and verify the speaker driver's mounting depth against the enclosure cavity.
- 35VDC power supply sizing is non-negotiable: undersized supplies will cause dropout under peak speaker load, creating audio cutouts during critical alerts. Measure the speaker impedance and calculate steady-state amperage before selecting supply wattage.
Deploy the MWBBCW as part of a coordinated emergency communication system on multi-building campuses, warehouses with remote lot coverage, or municipal critical infrastructure sites. If your audio infrastructure spans multiple voltage standards (24VDC, 35VDC, 48VDC), verify each back box matches its zone's supply before shipping to the field — mixing voltages is a common installation error that damages speakers and supplies alike.
