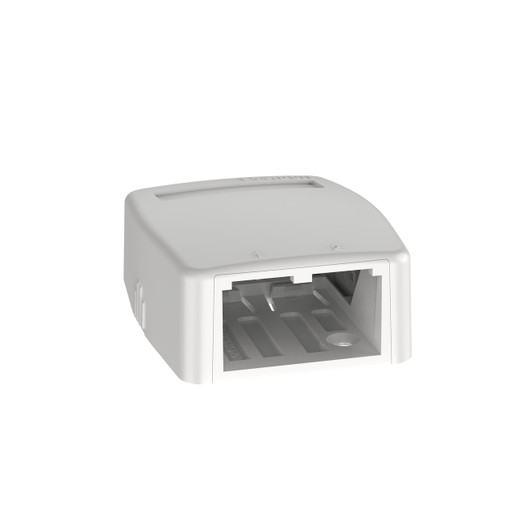

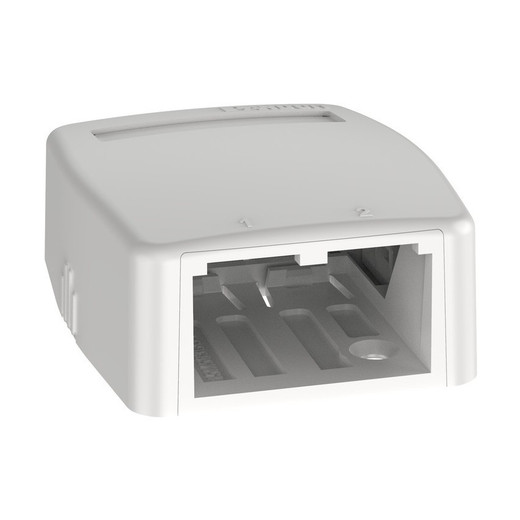

Panduit CBXQ2IW-A Quick Release Surface Mount Box, 2-Port, Off White

Overview

The Panduit CBXQ2IW-A is a 2-port Mini-Com® surface mount box designed for clean, low-profile structured cabling terminations in commercial spaces. Part of the Pan-Net® copper systems line, it accepts two Mini-Com Modules and ships in an off-white finish that blends into standard commercial wall and ceiling environments. At just 0.98 in. (24.9 mm) tall and 2.1 in. (53.5 mm) wide, it occupies minimal real estate on any surface. The quick-release cover mechanism means moves, adds, and changes don't require tools to access the modules — a practical advantage in active office or hospitality builds where MAC work is frequent. The CBXQ2IW-A is UL 1863 and UL 2043 listed, making it suitable for plenum-rated runs above drop ceilings and in air-handling spaces where fire code compliance is not optional.

Key Features

• Plenum Rating (UL 2043): Qualifies for installation in air-handling plenums and above suspended ceilings without requiring conduit. Eliminates the re-route cost on open-plenum runs — if your project spec calls out plenum, this box satisfies it without substitution paperwork.
• Quick-Release Cover Mechanism: The cover snaps open without tools for immediate access to Mini-Com Modules. On a dense office floor where you're re-patching dozens of drops in a day, this is a real time saver. The cover can also be secured with a screw when tamper-resistance or a cleaner finished look is needed.
• Three Mounting Options: Ships with adhesive tape for tool-free positioning on desks, partitions, and furniture. Accepts screw mounting for permanent wall or baseboard installation. Optional magnet mount available for metal surfaces or adjustable setups — useful in temporary workspaces or reconfigurable office furniture systems.
• 2-Port Mini-Com Module Capacity: Accepts any two Mini-Com Modules (data, voice, coax, audio, or specialty), so a single CBXQ2IW-A can serve a dual-jack data outlet, a data-plus-voice combo, or mixed media as your project dictates — no need to stock multiple faceplate types for mixed-service drops.
• Label Pocket: Built-in label pocket supports port identification at the outlet — a small detail that pays off at scale when tracing circuits during adds or troubleshooting.
• Compact Profile (0.98 in. H × 2.1 in. W × 2.6 in. L): The sub-1-inch height keeps the box from snagging foot traffic or snapping off when installed at baseboard height. ABS construction keeps it lightweight while holding up to daily handling.
• RoHS Compliant: Meets RoHS requirements for hazardous substance restriction — relevant on projects with environmental compliance specs or international shipping requirements.
• Packaged Individually (Carton Qty 10): Single-unit packaging (Package Qty: 1) lets you order the exact count you need with no forced breakout. Carton quantity of 10 supports small-batch ordering or filling in gaps without over-stocking.

Integration and Compatibility

The CBXQ2IW-A is designed exclusively for the Panduit Mini-Com module ecosystem — it will not accept other manufacturers' keystone modules. If you're standardizing on Mini-Com across your structured cabling infrastructure, the box drops into the same family as Panduit's patch panels, faceplates, and surface mount enclosures. The off-white color (CBXQ2IW-A — often searched as CBXQ2IW A) coordinates with standard commercial paint schemes; if your project requires a different color, verify the matching CBXQ2I variant before ordering. For high-density deployments or locations requiring more than two ports, Panduit offers larger surface mount box options in the same Mini-Com line. For full cable management integration, pair with Panduit's Mini-Com patch cords and modular patch panels to maintain a single-vendor structured cabling solution.

What's in the Box

• 1x Panduit CBXQ2IW-A Mini-Com Surface Mount Box, 2-Port, Off White
• Adhesive tape (pre-applied or included for tool-free mounting)

Frequently Asked Questions

Q: Is the CBXQ2IW-A rated for plenum installations above drop ceilings?

A: Yes. The CBXQ2IW-A meets UL 2043, which is the standard required for use in air-handling plenums and plenum-rated ceiling spaces. It also meets UL 1863 for communications circuit accessories.

Q: Does the CBXQ2IW-A accept standard keystone modules from other manufacturers?

A: No. This box is designed for Panduit Mini-Com Modules only. It does not accept generic keystone jacks or modules from other brands. Make sure your modules are Mini-Com compatible before ordering.

Q: How is the CBXQ2IW-A mounted — does it require drilling?

A: No drilling required for the adhesive tape option. It can be mounted with adhesive tape (included), screws (for permanent installation), or an optional magnet for metal surfaces. All three methods are supported without modification to the box.

Q: Can the cover be locked or secured to prevent accidental opening?

A: Yes. While the quick-release mechanism allows tool-free access, the cover can be secured with a screw when a more permanent or tamper-resistant installation is needed.

Q: How many ports does the CBXQ2IW-A support, and can they be mixed media types?

A: The CBXQ2IW-A accepts exactly two Mini-Com Modules. Because Mini-Com is a modular system, you can mix port types (data, voice, coax, etc.) in the same box as long as both are Mini-Com format modules.

Q: Is the CBXQ2IW-A RoHS compliant?

A: Yes. The CBXQ2IW-A is RoHS compliant, meeting restrictions on hazardous substances per applicable directives.

Eden Phillips

The CBXQ2IW-A earns its place in commercial builds primarily because of its UL 2043 plenum rating — a box this compact that clears plenum compliance without requiring conduit work saves real money on labor and materials when you're running structured cabling above drop ceilings in a multi-tenant office or hospitality project. At 0.98 inches tall and 2.1 inches wide, it's genuinely unobtrusive in finished spaces.

Technical Highlights:

• UL 2043 Plenum Certification: Qualifies for direct installation in air-handling ceiling spaces — eliminates conduit requirement on plenum-rated runs, which is the single biggest install cost variable on many commercial structured cabling projects.
• Quick-Release Cover + Screw Lock: Dual-mode access — snap open for fast MAC work, screw-lock for finished or semi-public installations. No specialized tool needed for either state.
• ABS Construction, 0.98 in. Profile: Lightweight and durable enough for surface-mount use at desk height or baseboard level; low enough profile to avoid snagging in high-traffic areas.

Deployment Considerations:

• Module compatibility is strictly Mini-Com — if your project mixes Mini-Com and standard keystone modules at different locations, you'll need separate surface mount boxes for each. Verify your module inventory before bulk ordering the CBXQ2IW-A.
• The adhesive mounting option is convenient for furniture and partition installs, but in high-vibration environments (near mechanical rooms or HVAC equipment), screw mounting is the more reliable long-term choice.

The CBXQ2IW-A is a practical fit for open-plan office renovations and hospitality projects where data drops need to land on furniture or demountable partitions without conduit — especially wherever plenum compliance is written into the spec and the aesthetic demands a sub-1-inch profile at the outlet.
