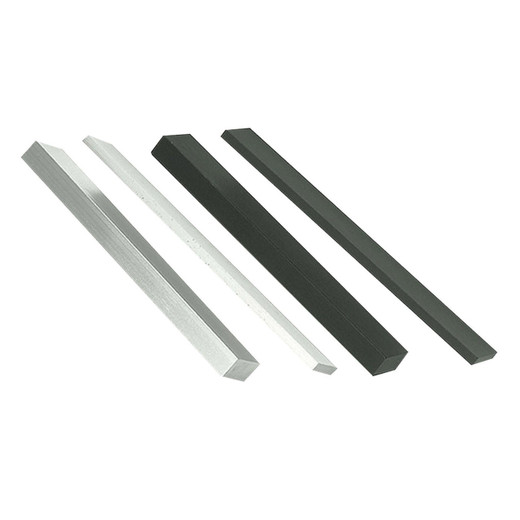

HES SFP-5/8CL-12 Stop Filler Plate 5/8in
Overview
The HES SFP-5/8CL-12 is a precision-engineered stop filler plate designed to serve as a critical spacer and alignment component in electronic locking system frame assemblies. This 5/8-inch dimension accessory is manufactured from clear anodized aluminum, making it a non-negotiable component when integrating access control frame components that require exact spacing tolerances. The clear anodized finish protects the aluminum substrate against oxidation and environmental degradation without adding visual bulk — a real advantage in professional installations where hardware finish consistency matters to both aesthetics and longevity.
Key Features
- 5/8 inch dimension: Sized for standard door frame applications where this specific spacing is required to align electronic locking hardware correctly. Incorrect spacing directly impacts latch operation and security reliability, so precise fit prevents callbacks and misalignment issues.
- Clear anodized aluminum construction: Anodizing creates a hard, corrosion-resistant oxide layer that protects against rust, salt spray, and moisture — meaningful if the frame assembly will face humidity or outdoor conditions where bare aluminum would oxidize within months.
- Professional-grade finish: The clear anodize maintains the natural aluminum appearance without introducing color that might clash with frame finishes. This neutral aesthetic works across stainless steel, powder-coated, and painted frame assemblies without requiring color matching or special ordering.
- Precision manufactured: OEM-quality tolerance control ensures the plate fits consistently across installations without forcing or gaps. Loose fitment can cause frame racking and latch binding; tight manufacturing prevents these field problems.
- Compatible with HES electronic locking hardware: Designed to integrate with the broader HES locking system line, this plate functions as a frame-side spacer that positions strike plates, latch hardware, and keeper components at the correct standoff distance. Compatibility is hardware-specific — verify fitment with your exact strike or latch model before ordering in volume.
Application Context
Stop filler plates like the SFP-5/8CL-12 are deployed in access control frame assembly scenarios where the door frame thickness, jamb condition, or strike mounting surface requires additional spacing. Common deployment points include:
- Electronic door lock strike installations where the frame edge-distance requires shimming to achieve proper mounting depth.
- Access control frame integration where multiple hardware layers (electromagnetic locks, electric strikes, mechanical latches) are stacked, and cumulative thickness must be accommodated.
- Commercial and institutional building retrofit projects where existing frames are slightly thinner or thicker than new hardware expects, and spacers bridge the gap without frame modification.
- Outdoor and high-moisture environments where an anodized aluminum spacer resists corrosion better than stainless steel fasteners paired with unprotected frame material.
Integration Considerations
The SFP-5/8CL-12 works in conjunction with strike plates, latch keepers, and mounting fastener sets. Verify frame thickness and hardware mounting surface condition before final specification — if the mounting surface is damaged or uneven, additional shimming may be necessary. Clear anodized finish is suitable for both indoor and outdoor frame assemblies; if the frame itself will face harsh chemical or salt-spray exposure, pair this plate with stainless steel fasteners to prevent dissimilar-metal corrosion.
Frequently Asked Questions
Q: Is the HES SFP-5/8CL-12 compatible with all HES electronic strikes?
A: The SFP-5/8CL-12 is designed for HES electronic locking system hardware, but compatibility is model-specific. Verify the mounting depth and frame spacing requirements of your specific strike or latch before ordering. Contact the hardware manufacturer or consult the installation guide for the strike model to confirm fitment.
Q: Will clear anodized aluminum work outdoors?
A: Yes. Clear anodizing provides corrosion resistance suitable for outdoor frame assemblies. However, pair the plate with stainless steel fasteners if the surrounding frame material is not stainless or powder-coated, to avoid dissimilar-metal galvanic corrosion over time.
Q: What's the difference between a stop filler plate and a shim?
A: Stop filler plates like the SFP-5/8CL-12 are precision-manufactured to exact thickness and are designed to be permanent, integrated components of the frame assembly. Shims are typically thinner, hand-cut spacers used for temporary or minor adjustments. Filler plates deliver consistent, repeatable spacing across installations.
Q: Can I install the SFP-5/8CL-12 without removing the door?
A: Installation typically requires access to the frame mounting surface, which usually means removing or holding the door open to position the plate and fasten it. Consult the strike or latch installation guide for the specific procedure.
Q: Does HES offer other filler plate sizes?
A: Yes. HES manufactures filler plates in multiple thicknesses to accommodate varying frame conditions. If the 5/8-inch dimension does not match your frame spacing, contact the HES product line to identify the correct size for your installation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HES SFP-5/8CL-12 is a straightforward but critical piece of hardware. Its 5/8-inch dimension and clear anodized aluminum construction are not glamorous specs, but they solve real field problems. When a frame is slightly out of tolerance or hardware mounting surfaces don't align perfectly, this plate bridges the gap without requiring frame modification or custom machining — a significant time and cost saver in retrofit deployments.
Technical Highlights:
- Clear anodized aluminum: Provides corrosion resistance that bare aluminum cannot match. In humid or outdoor environments, anodizing prevents white oxidation and extends hardware life by years — meaningful when the frame assembly is part of a high-security or 24/7 operation that cannot tolerate unplanned maintenance.
- 5/8-inch thickness: This specific dimension is engineered for HES strike plates and latch keepers. Oversizing or undersizing the spacer degrades latch alignment and can introduce binding, so precision fitment directly impacts security reliability.
- OEM-quality manufacturing: Precision tolerances mean the plate installs consistently across dozens or hundreds of doors without requiring hand-fitting or adjustment, reducing installation labor and callbacks.
Deployment Considerations:
- Verify strike model compatibility before bulk ordering — stop filler plates are hardware-specific, and a mismatched dimension creates rework delays.
- Pair with stainless steel fasteners in outdoor or high-moisture frame assemblies to prevent galvanic corrosion where aluminum meets dissimilar metals.
- Installation requires frame surface access — retrofits often require temporary door removal or wedging.
Deploy the SFP-5/8CL-12 when you're integrating HES electronic locks into frames that are slightly out of tolerance or when cumulative hardware thickness requires shimming. It's not a luxury item; it's a precision spacer that keeps latch operation reliable and eliminates field adjustments.
