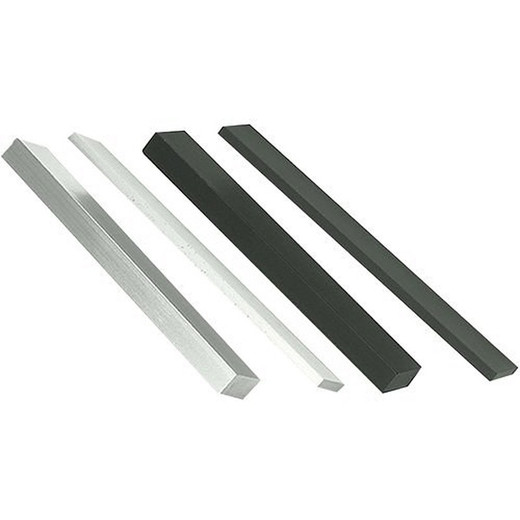

HES SFP-1/2CL-8 Stop Filler Plate 1/2" Clear Anodized
Overview
The HES SFP-1/2CL-8 is a precision aluminum stop filler plate engineered for professional security and access control installations. This 1/2" spacer addresses a specific but critical need: accommodating frame gaps and ensuring proper alignment in door frame assemblies where exact tolerances determine whether strike mechanisms, electronic locks, and latches function reliably. Frame preparation errors at this stage cascade downstream—poor alignment means jamming, misalignment of strike lips, and eventual failure of the locking mechanism under load. The SFP-1/2CL-8 eliminates guesswork on shim thickness.
Key Features
- 1/2" Dimension: Precisely machined to specification, eliminating frame gaps that would otherwise cause misalignment between door and strike assembly. Standard frame tolerances often leave gaps that must be shimed correctly—this plate is that shim, engineered to exacting specifications rather than improvised in the field.
- Clear Anodized Finish: Aluminum anodizing creates a hard oxide layer that resists corrosion, moisture absorption, and surface wear. Clear coating preserves the aluminum appearance while delivering durability; skip this if the frame finish matters less than raw strength, but for interior and exterior installations where moisture or salt air are factors, anodizing extends service life significantly and eliminates the need for ongoing maintenance or touch-up paint.
- Aluminum Construction: Non-ferrous material eliminates rust risk and simplifies installation without special fastener precautions. Lighter weight than steel means easier handling during frame prep without sacrificing structural rigidity for load transfer through the door assembly.
- HES Compatibility: Engineered for integration with HES strike systems, electronic locking hardware, and standard access control door preparations. If you're deploying HES access control hardware, this plate is designed to slot directly into the frame geometry those systems expect.
- Exacting Tolerances: Manufacturing precision ensures the plate sits flush and maintains alignment without shimming around the shim—a common field problem when frame spacers are fabricated on-site or sourced from generic stock.
- Interior and Exterior Rated: The anodized finish handles both climates; moisture and temperature swings won't degrade the material or cause dimensional drift over time.
When to Choose the SFP-1/2CL-8
This filler plate is essential if you're installing HES electronic strikes, magnetic locks, or latch assemblies and your frame opening measures 1/2" too narrow. Door frame stock varies by manufacturer and installation age—new construction frames sometimes exceed nominal thickness, older frames fall short. Before ordering, measure the actual gap between the door and the strike-side face of the frame. If that gap is exactly 1/2", this plate fills it and ensures the strike aligns properly with the door bolt. Misalignment here means the strike will reject the bolt during closing, causing binding and accelerating wear on both door and hardware.
This product is not a universal shim—it solves a specific frame geometry problem. If your frame gap is 3/8", 5/8", or a non-standard thickness, the SFP-1/2CL-8 will create a misfit and you'll need an alternate thickness. Measure twice; order once.
Integration with HES Systems
The SFP-1/2CL-8 is a passive structural component with no electrical characteristics. It installs between the frame and the strike assembly, positioned during initial door preparation before the strike mounting bolts are set. No special tools, no configuration—mechanical fit is everything. Pair it with your chosen HES access control system for complete frame assembly.
Frequently Asked Questions
Q: How do I know if I need a 1/2" filler plate?
A: Measure the gap between the inside face of the door frame and the outside face of the door itself, at the strike side, with the door closed. If that gap is 1/2", the plate fills it and ensures the strike aligns with the bolt path. Gaps larger or smaller require a different thickness.
Q: Can I use the SFP-1/2CL-8 with non-HES strikes?
A: The plate is engineered for HES systems and frame geometries. Compatibility with third-party hardware depends on frame design and strike mounting specifications. Confirm strike spacing and frame rabbet depth with your strike manufacturer before ordering.
Q: Is the clear anodize finish durable outdoors?
A: Yes. Anodizing creates a hard, corrosion-resistant layer suitable for exterior installations. The clear coating preserves aesthetics while providing chemical and moisture resistance. High-salt environments (coastal areas) may eventually develop surface patina, but structural integrity remains unaffected.
Q: Can I order multiple SFP-1/2CL-8 plates for a multi-door installation?
A: Yes. Order one per door if all doors have the same frame geometry. Measure each frame; if gaps vary, you may need different plate thicknesses for different doors.
Q: What fastening method does the SFP-1/2CL-8 use?
A: The plate installs between the frame and strike assembly; the strike mounting bolts pass through the plate and secure it in place. No additional fasteners required.
Q: Is there a maximum or minimum installation temperature?
A: As a passive aluminum component, the SFP-1/2CL-8 is stable across standard interior and exterior temperature ranges. Standard aluminum anodizing tolerates -40°C to +60°C (-40°F to +140°F) without dimensional change or coating failure.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
Frame geometry details are often overlooked until a new lock refuses to latch or strike misalignment creates binding on every close cycle. The HES SFP-1/2CL-8 solves that problem by providing a precision 1/2" shim engineered to exact tolerances rather than field-improvised from loose stock. The clear anodized finish eliminates corrosion risk in both interior and exterior frames, meaning you won't see surface degradation or base-metal rust over the life of the installation.
Technical Highlights:
- Aluminum Construction with Clear Anodize: Hard oxide coating resists moisture and corrosion without requiring maintenance or touch-up paint. Non-ferrous material eliminates fastener compatibility concerns and simplifies frame assembly in both dry and humid environments.
- 1/2" Precision Dimension: Machined to specification, eliminating the drift and variability you get when shimming with loose or field-cut spacers. Strike alignment depends on this—even 1/16" errors compound across the door assembly and create operational failures under load.
- HES System Integration: Designed for HES strike assemblies and electronic locking hardware frame geometries. The plate integrates seamlessly into standard access control door preparations without modification to the frame or strike.
Deployment Considerations:
- Frame Measurement is Non-Negotiable: This is not a universal shim. If your frame gap is 3/8", 5/8", or any non-1/2" dimension, the SFP-1/2CL-8 creates a misfit and forces you to source the correct thickness. Measure the actual gap before ordering, not estimated frame thickness.
- Strike Alignment Drives Hardware Longevity: A gap-filling plate may seem passive, but misalignment of the strike lip relative to the door bolt is one of the leading causes of latch jams and accelerated wear on both the lock mechanism and the door frame itself. Proper shimming here prevents that downstream damage.
Deploy the SFP-1/2CL-8 in any HES frame assembly where the measured gap is exactly 1/2"—particularly in commercial retrofits where existing frame stock doesn't match modern strike pocket depths, and in new construction where frame tolerance stack-up creates gaps that must be compensated. This is infrastructure-grade hardware; it pays for itself in reduced service calls and lock failures.
