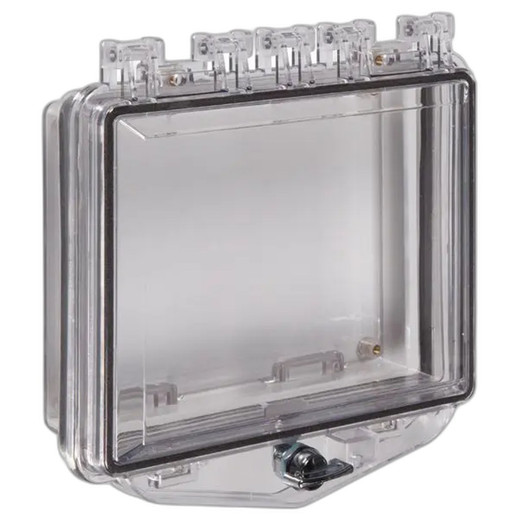

STI STI-7510F Polycarbonate Access Control Enclosure with Key Lock Strike
Overview
The STI-7510F is a polycarbonate enclosure system engineered for access control and electronic security installations where external strike protection and reader consolidation are required. This unit combines an enclosed back box housing with an exterior key-operated lock mechanism, reducing the number of separate components needed at the door frame and simplifying integration of electronic locks and card readers into a single, protected assembly. The polycarbonate construction balances durability with cost-effectiveness — it resists impact and weather better than plastic alternatives while remaining lighter than metal housings, which matters when mounting on glass doors or lightweight frames where weight distribution is a constraint.
Key Features & Design Rationale
- Enclosed Back Box Configuration: Houses lock strike mechanisms and reader wiring in a consolidated unit, reducing on-site assembly time and the risk of loose wiring or improperly seated components. Integrators benefit from fewer field connections and faster door-to-production cycles.
- Exterior Key-Operated Lock Strike: Provides manual override capability and emergency access without requiring electrical power — critical for code compliance and fail-safe scenarios. Key-operated design also allows facility managers physical control independent of the access control system, useful during power failures or system maintenance windows.
- Polycarbonate Housing: Polycarbonate offers inherent UV stability and moderate impact resistance compared to standard ABS or PVC. It tolerates temperature cycling without excessive warping — important in climates with large day-night swings. Not suitable for extreme chemical exposure or submerged installations, but appropriate for typical commercial and institutional door frames.
- Standard Mounting Compatibility: Pre-drilled holes and mounting templates accommodate typical access control readers and strike mechanisms. This reduces custom fabrication and allows integration with common electronic locks from major manufacturers. Verify that your chosen reader and strike dimensions align with the STI-7510F footprint before ordering.
- Simplified Installation Footprint: By consolidating the lock strike, back box, and reader housing into a single assembly, the STI-7510F reduces the number of separate purchases and installation points. This lowers total project complexity and reduces labor hours on retrofit or new installations.
- Weather & Dust Tolerance: Polycarbonate enclosure design offers basic environmental protection suitable for interior corridors, lobbies, and sheltered exterior entry points. If the installation faces direct rain or high-pressure wash-down, verify the enclosure's gasket and sealing provisions with the manufacturer datasheet.
Integration & Compatibility Considerations
The STI-7510F is designed to work with standard electronic lock and strike systems commonly deployed in commercial access control platforms — card readers, keypads, wireless proximity modules, and biometric readers that fit within the enclosure footprint. Before ordering, confirm that your intended reader dimensions (width, depth, connector style) and your strike mechanism (voltage, strike type, mounting hole pattern) match the STI-7510F's internal space and mounting provisions. Consult your access control system integrator or reader manufacturer for fit verification. The key-operated exterior lock is independent of power, but wiring for electronic strike actuation must be routed through the back box to your access control panel or dedicated strike controller.
Deployment Context
This enclosure is most commonly deployed in commercial office buildings, educational institutions, healthcare facilities, and secure retail environments where access control is enforced at individual doors rather than through perimeter barriers. The key lock feature makes it particularly suitable for installations requiring manual override at critical egress doors or during emergency scenarios. It is less suited for high-security environments demanding tamper detection or alarm signaling — those applications typically require electronic strike monitors and reinforced housings.
When to Choose a Different Model
If your installation requires integrated tamper detection, electronic monitoring of strike position, or reinforced steel housing for high-security applications, explore alternative enclosures in the STI product line or consider a dedicated strike monitor module paired with a heavier-duty housing. If the reader or strike footprint exceeds the STI-7510F's internal dimensions, contact an integrator to assess custom mounting or alternative enclosure SKUs.
Frequently Asked Questions
Q: Does the STI-7510F come with a strike mechanism pre-installed?
A: The STI-7510F is supplied as an enclosure assembly with provisions for strike and reader mounting. Your chosen electronic lock strike and reader are installed separately during commissioning — this allows flexibility to match your specific access control platform and door frame geometry.
Q: Is the key lock on the STI-7510F a standard pin tumbler or proprietary?
A: Refer to the manufacturer datasheet for lock type and keying specifications. Most STI enclosures use industry-standard key profiles, but confirm with your integrator to ensure key management aligns with your facility's security policy.
Q: Can the STI-7510F be mounted on glass doors?
A: Yes, polycarbonate enclosures are lighter than metal alternatives and are commonly mounted on glass doors using appropriate glass-mounted hardware. Ensure the mounting template and your glass thickness are compatible, and use a professional installer if you are unfamiliar with glass mounting.
Q: What reader types are compatible with the STI-7510F?
A: Standard access control readers (card, keypad, biometric, wireless) that fit the enclosure's internal dimensions are compatible. Verify reader footprint, connector type, and wiring requirements with the manufacturer datasheet and your integrator before procurement.
Q: Does the enclosure provide any environmental sealing?
A: The polycarbonate housing and enclosed back box provide basic protection from dust and splash, suitable for indoor use and sheltered exterior entry points. For direct rain or wash-down environments, confirm gasket and sealing specifications on the datasheet.
Q: What is the warranty on the STI-7510F?
A: Refer to the manufacturer warranty documentation or consult your specialty distributor for warranty period and coverage details specific to your region and purchase date.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The STI-7510F is a straightforward piece of the access control puzzle — not glamorous, but essential for any integrator deploying electronic locks and card readers at the door. The polycarbonate construction combined with the enclosed back box design means you're consolidating mounting points and wiring paths, which translates directly to faster installations and fewer field callbacks due to loose connections or misaligned components.
Technical Highlights:
- Enclosed Back Box Architecture: Reduces on-site assembly complexity and provides a defined housing for reader and strike wiring. Integrators can pre-stage and test reader-to-strike integration in the shop before mounting at the door, cutting field labor time and improving first-pass installation success.
- Exterior Key-Operated Strike Lock: Delivers manual override without electrical power — this is mandatory for life-safety code compliance and is invaluable during system maintenance or power-fail scenarios. Key control also gives facility managers physical authority independent of the electronic access control system.
- Polycarbonate Housing Impact Resistance: Polycarbonate is more durable than standard ABS plastic and lighter than steel — a practical choice for high-traffic commercial lobbies where you need durability without the weight penalty. It handles moderate impact and UV exposure without excessive warping or discoloration over typical door-frame lifecycle (5–10 years).
Deployment Considerations:
- Verify reader and strike dimensions against the STI-7510F's internal footprint before ordering — polycarbonate enclosures are not infinitely flexible, and undersized or oversized readers will require rework or substitution.
- Polycarbonate provides basic environmental protection but is not suitable for direct high-pressure spray or submersed installations — if you're installing in a wash-down environment or humid outdoor corridor, confirm gasket and sealing integrity with the datasheet or skip to a heavier-duty metal enclosure.
- Key-operated locks are convenient for override, but key management becomes a policy issue — ensure your facility has a documented key-control procedure and that only authorized personnel have access to master keys.
Deploy the STI-7510F in commercial office parks, educational institutions, healthcare facilities, and retail spaces where per-door access control is the standard and reader/strike consolidation saves labor and reduces field complexity. Skip it for high-security vaults or environments requiring tamper detection and electronic strike monitoring — those applications demand reinforced housings and alarm-capable strikes.
