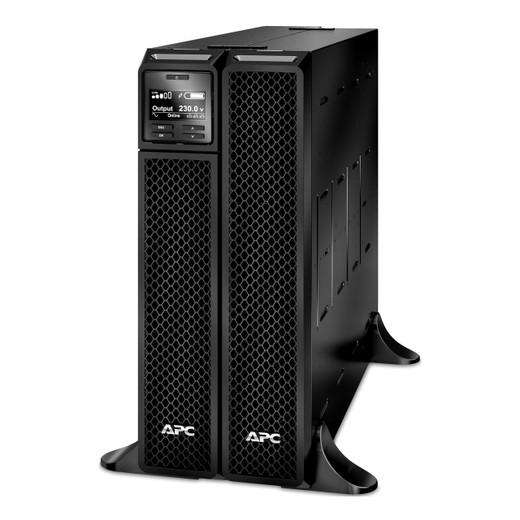

APC by Schneider Electric SRT2200XLI Online UPS

Overview

The APC by Schneider Electric SRT2200XLI is a 2.2 kVA double-conversion (online) UPS providing continuous, clean sine wave power for sensitive IT infrastructure, including surveillance systems. Its rack-mountable form factor is designed for 19-inch server racks, ensuring stable voltage and frequency regulation within a 100-275V input range and delivering 1980W of output power. This unit is ideal for deployments where consistent power quality is paramount to prevent data loss or equipment damage during utility fluctuations or outages.

Compatibility

This UPS is designed to support a wide range of IT equipment. It is compatible with standard 19-inch rack enclosures and is suitable for powering network video recorders (NVRs), servers, switches, and other critical components within a surveillance or data center environment. Its sine wave output ensures compatibility with sensitive power supplies found in enterprise-grade hardware.

Installation Notes

The unit operates with an input voltage range of 100-275V and an output voltage range of 220-240V, supporting 50/60 Hz frequencies. It features audible alarms and a web-based management interface for remote monitoring and configuration. The SRT2200XLI includes an Emergency Power Off (EPO) port for immediate shutdown in critical situations. Noise level is rated at 55 dB, which is typical for rack-mounted UPS units of this capacity.
