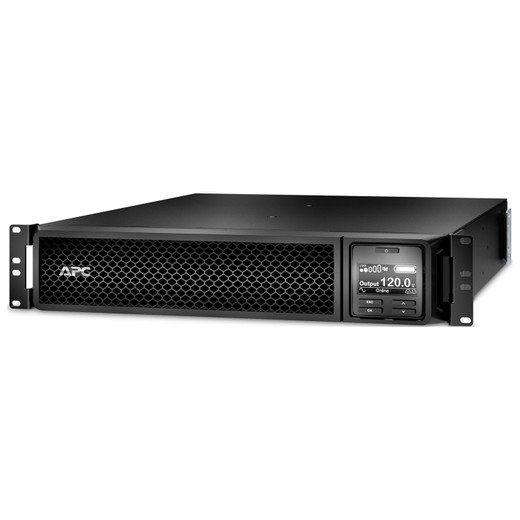

APC by Schneider Electric SRT2200RMXLAUS UPS

Overview

The APC by Schneider Electric SRT2200RMXLAUS is a 2.2 kVA / 1800 W double-conversion (online) rack-mountable Uninterruptible Power Supply. It provides clean, regulated sine wave power, essential for sensitive electronics like surveillance NVRs, servers, and network switches. Its double-conversion topology isolates connected equipment from all incoming power disturbances, ensuring continuous operation and protecting against data loss or equipment damage. This unit is designed for standard 19-inch rack installations, making it suitable for IT closets and data centers.

Compatibility

This UPS is compatible with standard 19-inch rack-mount equipment. It features NEMA 5-20R and NEMA L5-20R outlets, providing versatile connection options. The unit supports a single 306 Ah Sealed Lead Acid (VRLA) battery pack for extended runtime (battery not included). It offers serial (RJ-45) and USB communication ports for monitoring and management, along with a SmartSlot for optional network management cards, allowing integration with network monitoring systems and VMS platforms for critical event notifications and graceful shutdown sequences.

Installation Notes

The unit requires a NEMA 5-20R input plug, demanding a 20A circuit. It operates on 120V AC input power and accepts a frequency range of 40/70 Hz, automatically adjusting output to 50/60 Hz. The 340 Joule surge energy rating protects against transient voltage spikes. Audible alarms are present to indicate power status and potential issues. Ensure adequate ventilation around the rack to manage heat dissipation, as the unit's operation generates thermal output.
