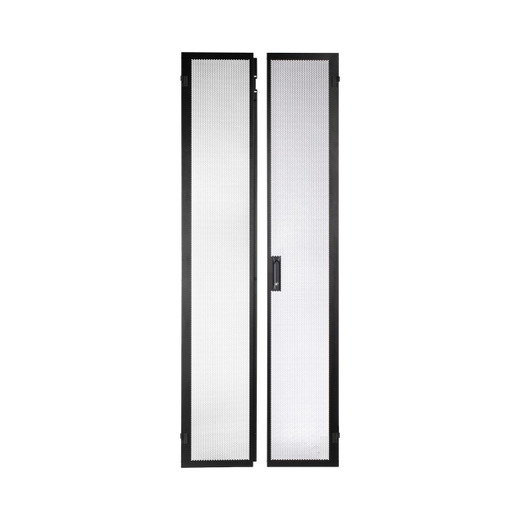

Panduit XG-DRSP745B Split-Hinged Cabinet Door
The Panduit XG-DRSP745B is a black split-hinged door engineered for FlexFusion™ server cabinets where aisle spacing limits full-swing access. At 82" tall and 27.4" wide (700mm), this door fits standard 42U-48U rack configurations commonly deployed in hot-aisle/cold-aisle datacenter layouts. The split-hinge mechanism allows the door to open in constrained clearances without requiring the extended swing radius of traditional single-hinge designs—critical when rack rows are positioned with minimal aisle width for thermal efficiency or when retrofitting existing installations where adjacent equipment restricts door travel.
Key Features
- Split-hinge design reduces swing radius for tight-aisle datacenter deployments
- 81.99" height compatible with 42U-48U rack enclosures
- 700mm (27.4") width matches standard server cabinet dimensions
- FlexFusion™ platform integration for consistent thermal and physical management
- Black powder-coat finish for professional appearance and corrosion resistance
- RoHS compliant for environmentally responsible procurement
- Single door panel simplifies physical access control and monitoring
Split-hinged doors solve a specific problem in high-density server environments: when racks are positioned in rows with 36" or narrower aisles, a conventional door's 180-degree swing path can't clear the opposing rack face or wall. The XG-DRSP745B's split-hinge architecture divides the swing load across two offset pivot points, allowing the door to open fully while consuming roughly half the aisle depth of a standard hinge. This matters for both new builds designed to maximize floor space and retrofit projects where moving rack rows isn't feasible. The 700mm width is Panduit's standard for full-depth network and server cabinets; verify your enclosure's width specification before ordering, as narrower 600mm racks require a different door SKU. Mounting hardware interfaces with FlexFusion™ cabinet frames via pre-drilled pilot holes on 25mm vertical spacing—use a 3mm pilot bit if field-drilling is required for non-standard placements, and apply Loctite 243 to hinge fasteners to prevent loosening from repeated open/close cycles in high-traffic installations.
Datacenter operators choose split-hinged doors for hot-aisle containment retrofits where adding doors to existing open racks can't sacrifice aisle clearance, and for colocation providers who need to maintain narrow aisle widths to maximize billable cabinet count per square foot. The black finish coordinates with standard server hardware and masks fingerprints better than bare steel or light-colored powder coat. When integrating with active cooling systems, confirm that your thermal management design accounts for the door's airflow resistance—solid doors like the XG-DRSP745B create a pressure boundary that enhances containment effectiveness but requires proper fan sizing on in-row coolers or rear-door heat exchangers. The door's single-panel construction (versus a double door) eliminates the center gap that can compromise containment integrity and simplifies physical security: one lock point instead of two, and no risk of a double-door's astragal seal degrading over time.
RoHS compliance matters for organizations with green procurement mandates or EU-market equipment, ensuring the door meets restrictions on lead, mercury, cadmium, and other hazardous substances. For installations in seismic zones or facilities with strict grounding requirements, verify that your cabinet's frame-to-door continuity meets local electrical code—split-hinged doors can introduce additional resistance in the ground path compared to welded or continuously bonded designs, so test with a low-resistance ohmmeter if your AHJ requires documented ground continuity across all conductive enclosure surfaces. This door is part of Panduit's FlexFusion™ ecosystem, designed to work with their rack PDUs, vertical cable managers, and thermal sensors as an integrated physical infrastructure platform rather than a mix-and-match parts bin.
