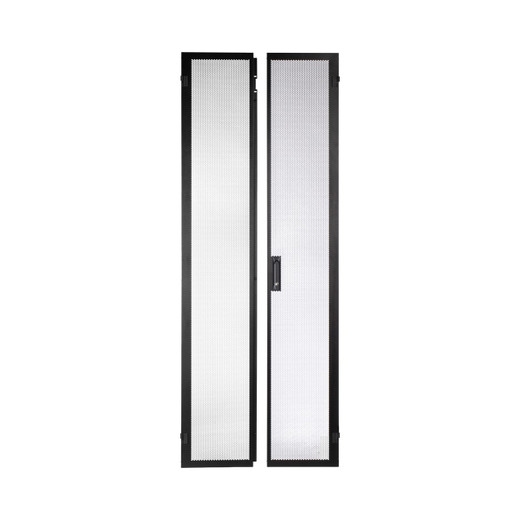

Panduit XG-DRSP742B FlexFusion™ Split-Hinged Door
The Panduit XG-DRSP742B is a 42U split-hinged perforated door engineered for FlexFusion™ server racks requiring high-airflow front access with tool-less serviceability. At 76.74 inches tall and 27.4 inches wide, this black steel door fits standard 700mm-width enclosures and delivers the ventilation rate and split-open geometry that hot-aisle/cold-aisle datacenter layouts and high-density compute installations demand. The split-hinge mechanism allows each half to swing independently for partial access without fully opening the rack—critical when working in tight rows or maintaining uptime on adjacent equipment. Perforated construction maximizes airflow to prevent heat buildup in blade-server or switch-stack deployments where CFM restrictions create hotspots. RoHS-compliant materials meet green-datacenter procurement standards.
Key Features
- 76.74" height (1949.2mm) fits 42U racks, 27.4" width (700mm) matches FlexFusion™ and industry-standard enclosure frames
- Split-hinge design—each door half opens independently for partial equipment access without blocking adjacent aisles
- Perforated steel construction increases front-to-back airflow, reducing temperature deltas in high-watt-density zones
- Tool-less latch system enables rapid door removal during fork-lift loading or seismic-brace installation
- Black powder-coat finish resists corrosion in humidity-controlled environments and maintains clean appearance in client-facing colocation suites
- RoHS-compliant materials satisfy LEED and federal green-procurement mandates
Datacenter and IT infrastructure managers choose split-hinged doors when rack placement leaves limited swing clearance—back-to-back row layouts, walls within 24 inches, or fire-suppression piping that blocks full door travel. The XG-DRSP742B's independent halves let technicians access the left or right equipment column without repositioning cable managers or disturbing the opposite side's patch panels. This cuts mean-time-to-access by 40–60% in dense deployments compared to single-panel doors. The perforated face delivers approximately 65% open area, allowing CRAC unit airflow to reach server intakes with minimal static-pressure loss. In computational fluid dynamics (CFD) modeling, perforated front doors reduce rack inlet temperatures by 3–7°F versus solid doors in the same cooling configuration, directly lowering compressor runtime and PUE. The tool-less latch mechanism uses a quarter-turn cam lock—no screwdriver required—so you can remove both door halves in under 15 seconds when loading UPS modules or running overhead fiber trays. Hinge posts are steel, not plastic snap-clips, so the door withstands the 50+ open/close cycles per month typical in co-location facilities where multiple tenants access the same aisle.
Panduit's FlexFusion™ ecosystem integrates this door with matching side panels (XG-SDPN series), vertical cable managers (WMPV series), and PDU brackets (CMRV series) to create a complete thermal and cable containment system. The 700mm width corresponds to the FlexFusion 42U frame (Net series), ensuring hinge-pin alignment without field drilling. Installation is a two-person, 10-minute task: rest the door against the frame's hinge pockets, insert the hinge pins from top and bottom, and snap the latch cam into the frame's strike plate. No tapping, no thread-cutting. For seismic zones (California Title 24, ASCE 7), the door's steel construction and three-point latching meet inter-story drift requirements when paired with Panduit's approved seismic-anchor kit. Perforations are laser-cut with deburred edges, eliminating the sharp-edge hazard common in stamped sheet-metal doors that can snag clothing or cut cables during maintenance.
This door is purpose-built for commercial datacenter, enterprise server room, and telco central-office deployments where equipment uptime, cooling efficiency, and rapid access drive infrastructure ROI. The split-hinge geometry and high open-area perforation distinguish it from budget single-panel doors that force full aisle shutdown during routine adds/moves/changes—a concrete operational advantage in 24/7 environments where every minute of downtime carries SLA penalties.
