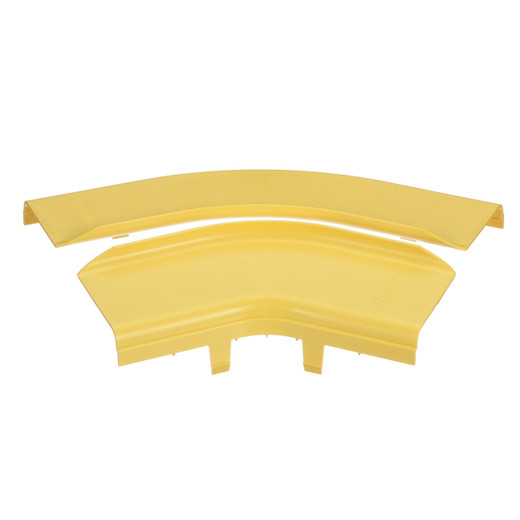

Panduit FRH45SC6LYL FiberRunner™ Hinged Elbow Cover

The Panduit FRH45SC6LYL is a hinged split elbow cover engineered for 6×4 FiberRunner™ horizontal fiber management systems. Designed for data center and telecom central office deployments, this polycarbonate/ABS cover creates tool-free access points at 90° pathway turns—eliminating the need to disassemble entire raceway sections when adding, relocating, or troubleshooting fiber bundles. The yellow LSZH (Low Smoke Zero Halogen) construction meets UL 2024A optical cable routing assembly certification and Telcordia GR-63-CORE NEBS Level 3 requirements, making it suitable for mission-critical facilities where fire safety, seismic resilience, and rapid maintenance access are non-negotiable.

Key Features

• Hinged split design for tool-free cable access at elbow transitions without raceway disassembly
• 6×4 inch form factor integrates with Panduit FiberRunner™ horizontal pathway systems
• LSZH polycarbonate/ABS construction minimizes toxic smoke and corrosive gas emission in fire scenarios
• UL 2024A certified optical cable routing assembly, Telcordia GR-63-CORE NEBS Level 3 compliant
• Yellow high-visibility color for fiber pathway identification and safety zone marking
• Dimensions: 11" L × 9.39" W × 2.15" H for standard 90° turn coverage

Fiber optic pathway installations in data centers and carrier-grade telecom facilities face a persistent challenge at directional changes: how do you maintain secure overhead routing while preserving rapid access for moves, adds, and changes? Solid elbow fittings protect cables during the initial install but create bottlenecks when you need to add circuits or troubleshoot a damaged strand six months later—forcing technicians to remove multiple downstream sections, disturb live cables, and extend outage windows. The FRH45SC6LYL solves this by splitting the elbow cover along a hinge, allowing you to swing it open, perform your work, and snap it closed without tools or upstream disruption. The polycarbonate/ABS material provides impact resistance and dimensional stability across the -40°C to +65°C temperature range common in HVAC-controlled telecom spaces, while the LSZH formulation ensures that in the event of fire, the material releases minimal smoke opacity and zero halogenated acids—critical for protecting sensitive electronics and maintaining egress visibility per NFPA 90A plenum requirements.

This cover is purpose-built for structured cabling contractors installing backbone fiber runs in enterprise data centers, colocation facilities, and central offices where pathway systems must meet both operational flexibility and regulatory compliance. The 6×4 inch cross-section matches Panduit's modular FiberRunner™ trunking family, allowing you to build continuous overhead or under-floor routes with uniform bend radius protection and consistent access intervals. UL 2024A certification verifies that the complete assembly—raceway, covers, and fittings—has been tested as a system for flame spread, load capacity, and grounding continuity, which is mandatory for installations inspected under NEC Article 770. Telcordia GR-63-CORE NEBS Level 3 compliance further validates seismic performance (Zone 4 earthquake simulation), temperature cycling, fire resistance, and airborne contaminant exposure, making this component suitable for carrier-grade facilities where five-nines uptime depends on infrastructure that survives both daily operations and worst-case environmental events. The yellow color serves dual purposes: it visually segregates fiber pathways from copper or power trunking in congested ceiling spaces, and it provides high-contrast marking for safety zones where overhead work or lift equipment is in use.

The FRH45SC6LYL ships individually in single-unit packaging (carton quantity 5 for stock orders), includes RoHS compliance documentation for projects with material disclosure requirements, and carries UPC 61305676924 for inventory tracking. When planning FiberRunner™ deployments, spec one hinged elbow cover per 90° turn in your pathway layout—this maintains uniform access intervals and ensures that no cable segment is more than one straight section away from a service point. For installations requiring plenum ratings, verify that all FiberRunner™ components in the assembly share the same LSZH material designation to maintain consistent fire performance across the entire route.
