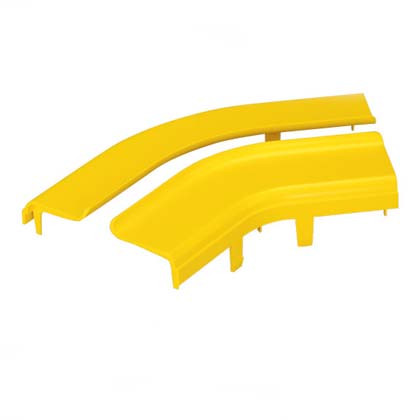

Panduit FRH45SC4LYL FiberRunner™ 4x4 LSZH Elbow Fitting Cover

Split elbow fitting covers solve the add/move/change access problem in dense fiber routing installations. When you're running hundreds of fibers through structured pathways, you need access to elbow junction points without disassembling the entire run every time you add or remove a cable. The Panduit FRH45SC4LYL snaps onto 4x4 FiberRunner elbow fittings, maintains LSZH compliance for plenum-rated installations, and provides a removable access point at every 90-degree turn in your fiber backbone. Yellow high-visibility construction aids pathway identification and segregation in multi-system data center environments where fiber and copper runs must remain visually distinct.

Key Features

• LSZH polycarbonate/ABS construction for low-smoke, zero-halogen compliance in plenum and riser spaces
• Yellow high-visibility color for instant fiber pathway identification
• 9.8" x 7.86" x 2.15" (249 x 200 x 55 mm) footprint matches 4x4 FiberRunner elbow geometry
• UL 2024A certified optical fiber cable raceways - meets carrier-grade raceway standards
• Telcordia GR-63-CORE and NEBS Level 3 compliant for seismic and environmental resilience
• RoHS compliant - lead-free, mercury-free construction
• Snap-on installation with no tools required - installs or removes in seconds
• Sold individually for single-junction repairs or adds (carton quantity 5 for bulk deployments)

LSZH (Low Smoke Zero Halogen) material composition is mandatory in many international markets and increasingly specified in U.S. data centers and telecommunications facilities where fire-code authorities prioritize toxic-fume reduction over legacy PVC pathway materials. Panduit's polycarbonate/ABS blend delivers the structural rigidity needed to maintain bend-radius protection at elbow junctions while meeting IEC 60754 halogen-free and IEC 61034 low-smoke density requirements. The split-cover design incorporates a hinge or snap-apart seam that allows you to lift the cover, add or reroute cables, and resecure the cover without removing mounting hardware or adjacent pathway sections - critical when working in live data center aisles where you can't afford downtime to neighboring circuits. Dimensional precision ensures a tight fit to the elbow body, preventing cable snags during pulls and maintaining pathway continuity that passes visual inspection for TIA-568 and ISO/IEC 11801 structured cabling compliance.

Deploy the FRH45SC4LYL in data center hot-aisle/cold-aisle fiber distribution backbones, central office OSP/ISP demarcation zones, and building backbone risers where you need segregated fiber pathways distinct from copper cable trays. Yellow color-coding typically designates single-mode fiber pathways or specific network segments (storage, management, production) in multi-tenant or multi-function facilities. The 4x4 FiberRunner system integrates straight sections, elbows, tees, wall-mount brackets, and vertical drops into a modular raceway architecture that scales from small telco closets to hyperscale data halls - this elbow cover fits any 90-degree elbow fitting in that ecosystem. The snap-on attachment method eliminates screws and clips that can vibrate loose in high-airflow environments, and the smooth interior surface prevents cable jacket abrasion during installation or reconfiguration pulls.

RoHS compliance combined with UL 2024A certification, Telcordia GR-63-CORE environmental testing, and NEBS (Network Equipment Building Systems) Level 3 seismic qualification means this component meets the carrier-grade standards required for telecommunications central offices and mission-critical data centers in seismic zones. NEBS Level 3 mandates survival through Zone 4 earthquake events without pathway failure - the polycarbonate/ABS construction absorbs shock loads that would crack brittle PVC covers, and the snap-on retention design prevents covers from shaking loose during seismic activity. The split-cover architecture directly addresses the locked-in problem inherent in solid conduit elbows: when a single cable needs rerouting, you lift this cover, make the change, and snap it back - no need to unbolt the elbow body, disconnect upstream and downstream sections, or interrupt adjacent circuits in the same pathway.
