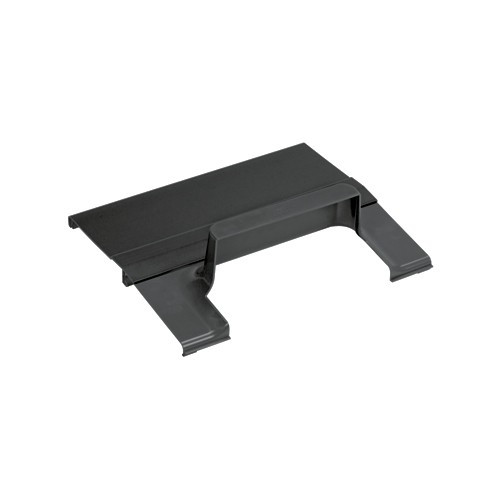

Panduit FRSPJC412LBL FiberRunner Spill-Over Junction Cover
Overview
The Panduit FRSPJC412LBL is a fiber routing spill-over junction cover purpose-built to fully enclose a 12x4 FiberRunner channel at spill-over junction points. Designed for use with the FRSPJ4X4LBL spill-over junction, this polycarbonate/ABS cover closes off the top of the trough where fiber routes transition direction — preventing accidental contact, dust ingress, and bend-radius violations in environments where exposed fiber is not acceptable. At 15 inches wide and just under 5 inches tall, it matches the dimensional footprint of the Panduit FiberRunner system and snaps into place without additional hardware. If you are specifying a fiber cable management system for a data center or central office, this cover is the piece that finishes the installation at every junction spill-over point.
Key Features
- Designed for 12x4 Channel Enclosure: The FRSPJC412LBL is sized to work specifically with the FRSPJ4X4LBL spill-over junction, providing complete top-cover closure over the 12x4 FiberRunner channel. Without this cover, fiber at the junction is exposed to overhead contact and dust — an issue that compounds over years in active data center environments.
- Polycarbonate/ABS Construction: The material combination delivers impact resistance alongside dimensional stability. Polycarbonate handles point-load impacts (a dropped tool, cable bundles stacked overhead) without cracking, while ABS keeps the cover lightweight and easy to handle during installation. This matters in overhead ladder-rack environments where technicians work one-handed.
- Overall Dimensions — 15" W x 13.63" L x 4.88" H: These dimensions (381mm x 124mm in metric) correspond exactly to the FiberRunner family envelope, so the cover aligns flush with adjacent channel runs. There is no custom trimming required for a standard junction installation.
- RoHS Compliant: Meeting RoHS requirements means the FRSPJC412LBL is suitable for deployments in jurisdictions with hazardous-material restrictions on electrical infrastructure — relevant for EU-adjacent builds or enterprise sustainability mandates that require RoHS documentation throughout the physical layer stack.
- UL Listed to 2024 Optical Fiber Cable Routing Assemblies: UL Listing to the 2024 standard for optical fiber cable routing assemblies means this cover has been independently tested for the thermal, mechanical, and fire-resistance properties relevant to enclosed fiber management. It is not merely self-certified — inspectors and AHJs can verify the listing, which matters for permitted data center builds.
- Telcordia GR-63-CORE NEBS Level 3 Compliant: NEBS Level 3 is the seismic and environmental benchmark for equipment installed in carrier and telco central offices. If your installation is in a central office, a Tier 3 or Tier 4 colocation, or any facility that references NEBS as a baseline, this cover meets that standard — not all fiber management accessories do.
- Black Finish: Black coordinates with standard FiberRunner black channel in data center infrastructure, keeping the cable management system visually consistent. A mixed-color trough system draws attention during audits and looks unfinished — this is the matching part.
- Sold as Single Unit, Carton Qty of 5: The FRSPJC412LBL ships one cover per order unit, with a carton quantity of 5 for volume purchases. For large deployments with multiple spill-over junctions per aisle, ordering by the carton avoids repeated small orders and simplifies receiving.
Integration & Compatibility
The FRSPJC412LBL is designed for use with the Panduit FiberRunner spill-over junction FRSPJ4X4LBL and is compatible with the FRSPJ4X4LYL (yellow variant). It is part of the broader FiberRunner system targeting data center and telco central office cable management applications. The competitor cross-reference is FGSB-SDSP-F for environments that require a sourcing alternative evaluation. This cover does not include attachment hardware — consult the FiberRunner system documentation to confirm mounting method for your specific junction configuration.
What's in the Box
- 1x Panduit FRSPJC412LBL FiberRunner Spill-Over Junction Cover
Frequently Asked Questions
Q: What junction does the FRSPJC412LBL cover work with?
A: The FRSPJC412LBL is designed to fully enclose a 12x4 FiberRunner channel when used with the spill-over junction FRSPJ4X4LBL. It is also noted as compatible with the FRSPJ4X4LYL variant.
Q: What are the exact dimensions of the FRSPJC412LBL?
A: The cover measures 15 inches wide (381mm), 13.63 inches in overall length, and 4.88 inches tall (124mm).
Q: Is the FRSPJC412LBL UL Listed?
A: Yes. The FRSPJC412LBL is UL Listed to the 2024 standard for Optical Fiber Cable Routing Assemblies, and it meets the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3.
Q: Is the FRSPJC412LBL RoHS compliant?
A: Yes, the FRSPJC412LBL is RoHS compliant, making it suitable for deployments subject to hazardous-material restrictions on infrastructure components.
Q: What material is the FRSPJC412LBL made from?
A: The cover is constructed from a Polycarbonate/ABS blend — polycarbonate for impact resistance and ABS for dimensional stability and light weight.
Q: How many covers come in a carton?
A: The FRSPJC412LBL ships one cover per unit, with a carton quantity of 5 for volume orders.
The FRSPJC412LBL is a straightforward piece with a very specific job: closing the top of a 12x4 FiberRunner spill-over junction so fiber doesn't get snagged, dust-loaded, or bent past its minimum radius at a transition point. At 15 inches wide and 13.63 inches long, it matches the FiberRunner envelope exactly — no shimming, no field modification. The NEBS Level 3 rating is the spec that moves this from a generic cover to a carrier-grade component.
Technical Highlights:
- NEBS Level 3 (Telcordia GR-63-CORE): This is the seismic and environmental benchmark required in telco central offices and many Tier 3+ colos. Not all fiber management covers carry this rating — specifying a cover that does keeps your entire physical-layer stack on the same compliance footing.
- UL Listed to 2024 Optical Fiber Cable Routing Assemblies: Independent UL Listing means the cover has been tested — not just self-declared — for fire, thermal, and mechanical properties relevant to enclosed fiber management. AHJs and commissioning inspectors can verify the listing number.
- Polycarbonate/ABS Construction at 4.88" Height: The material blend handles the overhead-contact and point-load abuse typical of active data center environments without cracking or warping. The 124mm height provides adequate clearance for a full 12x4 channel bundle at the junction.
Deployment Considerations:
- This cover requires the FRSPJ4X4LBL spill-over junction body as its mating component — the cover alone does not create a complete junction assembly. Verify your junction body is on order before assuming the cover closes out the BOM.
- The carton quantity is 5 units. For large data center rows with multiple spill-over junctions, count your junction points early — running short on covers during a live installation window is a common and avoidable delay.
The FRSPJC412LBL is the right specification call for telco central office builds and Tier 3/4 colocation facilities where NEBS Level 3 and UL Listing to the 2024 fiber routing standard are non-negotiable on every physical-layer component, including the covers.
