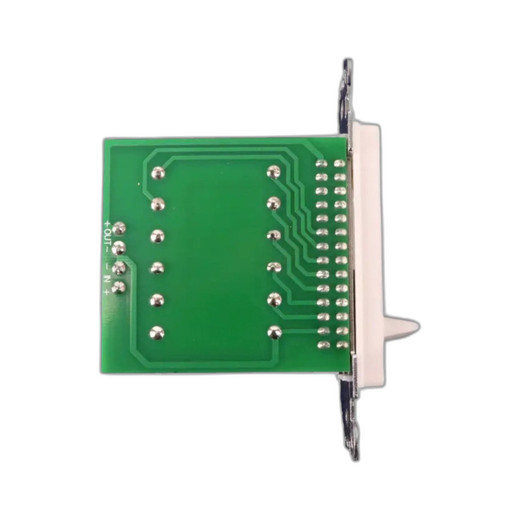

Speco Technologies WAT100D 100W Decora Slider Volume Control
Overview
The Speco Technologies WAT100D is a 100-watt Decora-style slider volume control designed for zone-level management in commercial distributed audio systems. This unit accommodates both 70-volt and 25-volt transformer-based audio infrastructure, the standard configuration in large commercial installations where long cable runs or multiple speakers per zone require voltage step-down. The WAT100D mounts into a standard single-gang electrical outlet box, integrating directly into existing wall infrastructure without requiring separate enclosures or retrofit work. If you're deploying a multi-zone audio system across retail, hospitality, or office environments, the WAT100D serves as the per-zone attenuation point upstream of your speakers.
Key Features
- 100-watt power capacity — handles typical commercial audio zones with multiple speakers without clipping or thermal stress, giving you headroom for future zone expansion without controller replacement.
- Dual voltage support (70V/25V) — works with both transformer-based voltage standards, so you're not locked into a single infrastructure choice; use 70V for longer runs (reduced wire gauge), 25V for shorter distances where impedance matching is simpler.
- Slider-type attenuation — smooth, continuous volume adjustment (not stepped) means you can dial in precise zone levels during commissioning and daily operation without clicking through discrete steps that may miss the sweet spot.
- Decora form factor — fits standard single-gang electrical outlet boxes alongside other wall controls; no extra brackets, enclosures, or panel space consumed.
- Three color options — available finishes let you match standard electrical outlet aesthetics, keeping installed appearance consistent across multiple zones or locations.
- Straightforward terminal connectivity — accepts standard audio wiring and transformer leads via screw terminals; integrates into existing commercial audio distribution workflows without special adapters or proprietary connectors.
Integration & Compatibility
The WAT100D is designed for indoor commercial environments where centralized amplification feeds multiple speaker zones through transformer-based distribution. Before final installation, verify that your transformer impedance and voltage configuration match the WAT100D's rating—mismatched impedance will cause audible distortion and potential component failure. The slider control works upstream of the transformer, so it adjusts line-level audio before voltage conversion; this means level-matching happens at line level, not speaker level, reducing ground loops and noise. Install the unit in accessible locations so operators can adjust zone volume without requiring ladders, service calls, or access to restricted areas. The WAT100D does not provide remote control or digital integration; if you need networked or app-based zone control, specify a separate DSP-based audio processor or control system.
Typical Deployments
Common applications include retail background music systems (per-store zone control), hospitality environments (ballroom zones, restaurant sections), educational facilities (classroom or commons area audio), and multi-zone residential systems. The WAT100D is particularly useful when you need independent, guest-operated volume adjustment without exposing central amplifier controls. In warehouse or industrial audio systems, the Decora mounting style fits neatly into existing electrical infrastructure, avoiding cable clutter or temporary bracket installations.
Frequently Asked Questions
Q: Does the WAT100D work with both 70V and 25V systems simultaneously?
A: No. The WAT100D is configured for either 70V or 25V operation at the time of installation. You must specify which voltage during ordering. A single unit cannot switch between voltages in the field.
Q: Can I mount the WAT100D vertically and horizontally?
A: Yes. The Decora form factor mounts into standard single-gang electrical boxes in any orientation. Ensure the slider moves freely and is accessible to users.
Q: What happens if I connect the WAT100D to an impedance-mismatched transformer?
A: Impedance mismatch causes audible distortion, reduced output level, and potential overheating of the transformer primary winding. Verify impedance ratings before installation—this is a critical commissioning step.
Q: Does the WAT100D require a power supply or battery?
A: No. The WAT100D is a passive audio control device. It draws power from the audio signal itself (via the transformer) and requires no external electrical connections.
Q: Can the WAT100D be used for speaker-level audio (amplifier output)?
A: No. The WAT100D is designed for transformer-based, line-level distribution systems. Speaker-level audio will damage the unit.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco Technologies WAT100D delivers straightforward zone-level volume control without overcomplication. During system design, the WAT100D's dual voltage support and passive slider architecture reduce on-site commissioning time and eliminate dependency on digital control systems for basic per-zone attenuation. It fits naturally into existing electrical workflows, which integrators appreciate when retrofitting audio into occupied commercial spaces.
Technical Highlights:
- 100-watt power handling: Adequate headroom for typical multi-speaker commercial zones; reduces risk of thermal stress or clipping when zone demand spikes.
- 70V/25V flexibility: Choose voltage based on run distance and impedance requirements—70V minimizes wire gauge on long runs, 25V simplifies impedance matching on shorter zones.
- Slider attenuation (not stepped): Continuous adjustment means you can hit precise zone levels during commissioning without settling for nearest step value; particularly important in hospitality where audio balance is subjective.
Deployment Considerations:
- Voltage configuration is permanent at installation—you cannot field-swap between 70V and 25V. Confirm infrastructure before ordering.
- Impedance matching is critical: mismatched transformer impedance causes audible distortion and potential winding failure. Verify ratings with your system designer before the job.
- The WAT100D is passive and transformer-dependent; it cannot drive speaker-level audio directly and offers no remote or networked control—this is a manual, analog-only device.
Deploy the WAT100D in retail background music systems, hospitality multi-zone audio, and educational commons areas where zone-level guest control is needed but network integration is unnecessary. It excels in retrofit installations where standard electrical outlet mounting reduces infrastructure disruption.
