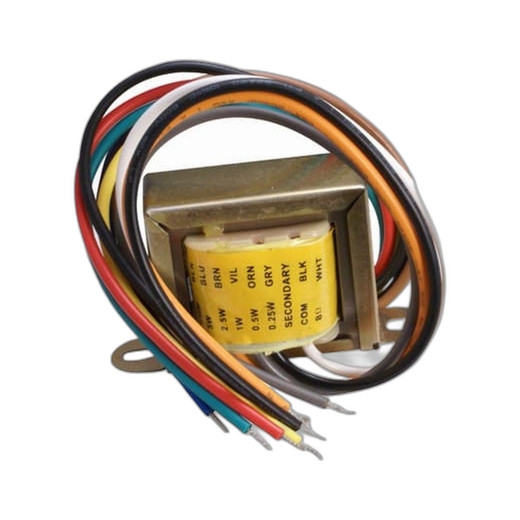

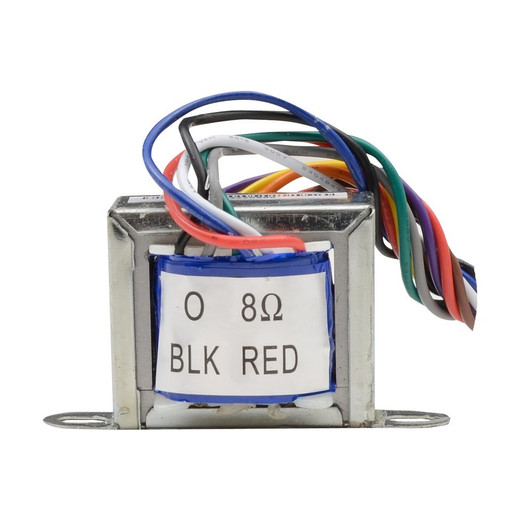

Speco Technologies T70255 5W 70/25V Dual Transformer
Overview
The Speco Technologies T70255 is a compact 5-watt dual transformer designed to distribute audio power across mixed 70-volt and 25-volt speaker systems commonly found in security, paging, and public address installations. This transformer serves as a critical interface between amplifiers and distributed speaker networks, enabling cost-effective audio coverage without requiring dedicated high-power amplifiers at each endpoint. The T70255 is engineered for straightforward integration into existing security system architectures where audio distribution spans multiple voltage standards.
Key Features
- Dual Voltage Support: Accommodates both 70V and 25V audio system configurations, allowing flexibility in mixed-voltage speaker deployments
- 5-Watt Output Rating: Provides adequate power distribution for small to medium security installations, emergency notification zones, and multi-tenant audio systems
- Compact Form Factor: Space-efficient design suitable for wall-mounted, ceiling-mounted, or equipment rack installations in control rooms and equipment closets
- Passive Transformer Design: No external power supply required; operates passively to step down or match impedance across voltage standards
- Reliable Construction: Built to withstand continuous-duty operation in commercial security environments
- Industry Standard Connectivity: Compatible with standard audio connectors and wiring configurations used across security and life-safety installations
Typical Applications
The T70255 serves critical roles in security deployments including emergency notification systems (ENS), multi-zone paging installations, integrated fire alarm audio systems, and distributed speaker arrays across large facilities. It is commonly used in schools, corporate campuses, retail locations, and industrial facilities where centralized audio amplification must feed speakers operating at different voltage standards. The transformer's dual-voltage capability eliminates the need for separate amplifiers or complex rewiring when system specifications call for mixed 70V and 25V speaker loads.
Integration & Compatibility
The T70255 integrates seamlessly with standard audio amplifiers, paging systems, and public address components. Its passive design ensures compatibility with both analog and digital audio systems without requiring firmware updates or software configuration. The transformer works with any amplifier capable of delivering 5 watts into the primary winding, making it a universal solution for retrofitting existing installations or expanding audio coverage in mixed-voltage environments.
Installation Considerations
The T70255 should be mounted in a location that provides adequate ventilation and protection from moisture and temperature extremes. Proper wiring gauge selection is essential to minimize signal loss over longer cable runs. For security-critical applications, dual transformers in redundant configurations may be specified to ensure continued audio operation during maintenance or failure conditions. Grounding and impedance matching should be verified according to the audio system designer's specifications to ensure optimal frequency response across the full audio bandwidth.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
From my perspective evaluating audio infrastructure for large security projects, the Speco Technologies T70255 addresses a real pain point in mixed-voltage installations. When you're retrofitting facilities with both legacy 25V speaker runs and newer 70V zones, having a single compact transformer like the T70255 eliminates unnecessary equipment sprawl and simplifies deployment logistics.
Technical Highlights:
- Dual Voltage Flexibility: The T70255 bridges 70V and 25V standards within a single 5-watt package, eliminating the need for multiple amplifiers or complex voltage conversion circuitry
- Passive Operation: No auxiliary power or active components means zero additional infrastructure requirements and inherent reliability for mission-critical audio coverage
Deployment Considerations:
- Verify amplifier output impedance and wattage rating match the T70255 specifications before installation to prevent clipping or transformer saturation
- In facilities requiring redundant audio paths, consider specifying dual T70255 units fed from independent amplifier channels to maintain coverage during maintenance
For integrators working with security systems that span multiple audio standards, the T70255 is a straightforward, field-proven solution. Its compact size and passive design make it easier to spec, install, and maintain compared to more complex active solutions.
