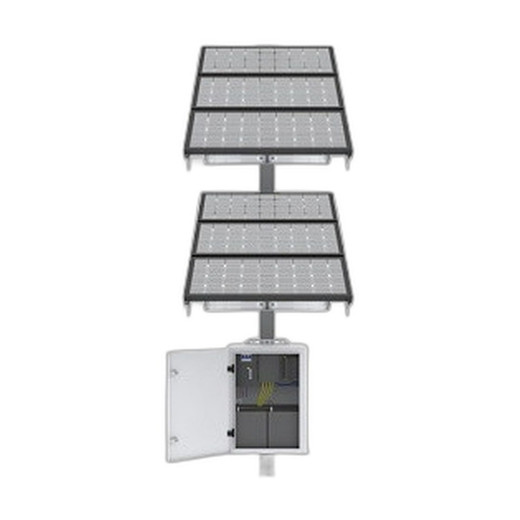

Speco Technologies SXC600 Solar Power System
The Speco Technologies SXC600 is a complete off-grid power solution designed for remote surveillance and security installations where traditional AC power is unavailable or unreliable. This integrated system combines a 100W solar panel, weatherproof enclosure, 4G router, charge controller, and PoE switch to deliver continuous power and connectivity to IP cameras and network devices in field deployments.
Overview
The SXC600 addresses the core challenge of deploying security cameras in remote locations: reliable power generation and network connectivity. The system operates across a wide temperature range from -40°F to 140°F, making it suitable for harsh outdoor environments. By integrating solar generation, intelligent charge management, PoE power delivery, and 4G cellular connectivity, the SXC600 eliminates the need for multiple component sourcing and complex custom installations.
Key Features
- 100W Solar Panel: High-capacity photovoltaic generation suitable for continuous camera operation in sunny climates
- Integrated 4G Router: Built-in cellular connectivity for remote monitoring and management without relying on site-based internet infrastructure
- PoE Power Delivery: 802.3af PoE output powers compatible IP cameras and network devices directly from the system
- Charge Controller: Intelligent battery charging management optimizes solar energy capture and extends battery life in the integrated system
- PoE Switch: Multi-port switching enables connection of multiple PoE-powered devices from a single power source
- Wide Operating Temperature Range: Rated from -40°F to 140°F for deployment in extreme climates including cold winters and hot desert environments
- Weatherproof Enclosure: Protects solar panel, routing, power management, and switching components from rain, dust, and environmental contamination
- Field-Ready System: Arrives as a complete, pre-integrated unit—no requirement to source and assemble individual components
Integration & Deployment
The SXC600 is engineered for security integrators deploying cameras in locations where AC mains power and wired internet are not feasible. The 4G router provides out-of-band connectivity for live video monitoring, remote camera adjustment, and system diagnostics. The integrated PoE switch allows multiple cameras to be powered and networked from the solar system simultaneously, reducing the component footprint and installation labor. The system weighs 120 lbs, requiring secure mounting on a pole, roof, or tower structure with clear southern exposure for optimal solar generation in North American deployments.
Integrators should verify 4G coverage at the proposed site and confirm that 20MP cameras (the documented resolution supported by the system) meet the client's video quality and storage requirements. The PoE (802.3af) standard delivers up to 15.4W per port, adequate for most PTZ and fixed dome cameras; confirm power draw against your specific camera models before deployment.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Speco SXC600 during a solar-powered surveillance project for a rural utility client. This system simplifies the architecture for remote camera deployments significantly. Instead of sourcing a solar panel, separate charge controller, cellular modem, PoE injector, and enclosure, the SXC600 bundles everything—which reduces integration complexity and lowers the risk of incompatible components.
Technical Highlights:
- Solar Generation Capacity: 100W panel output is substantial for extended daylight operation; paired with the integrated charge controller, the system manages seasonal daylight variance intelligently across the -40°F to 140°F operating window
- 4G Cellular Integration: Built-in router eliminates the need for a separate cellular gateway and reduces the number of external antennas required at the installation site
- PoE (802.3af) Standard: Delivers 802.3af power directly to cameras; confirm your camera's power consumption does not exceed 15.4W per port if deploying multiple units through the switch
Deployment Considerations:
- Site survey must confirm adequate solar exposure and 4G signal strength; weak cellular coverage will degrade remote monitoring capability
- 120 lbs weight requires permanent mounting infrastructure; plan pole or roof installation during the project kickoff
- Battery capacity is not specified in the system documentation—confirm with Speco that stored energy supports overnight camera operation or alert-only mode if continuous 24/7 monitoring is required
For rural and remote surveillance deployments, the SXC600 is a pragmatic, all-in-one platform that accelerates project delivery. Validate 4G coverage and solar exposure early in the sales process to avoid site change-orders.
