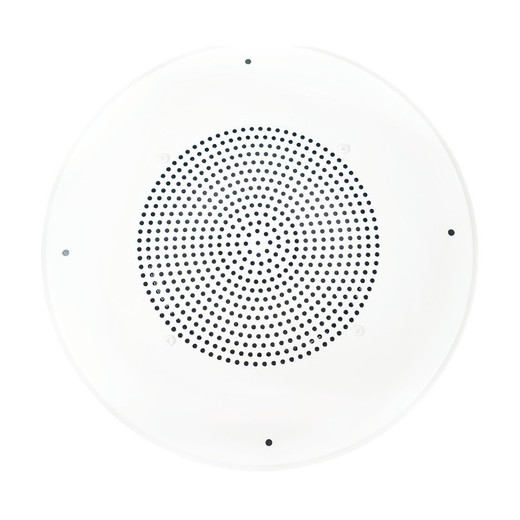

Speco Technologies SPIPG86TG IP Speaker Grille Combo
Overview
The Speco Technologies SPIPG86TG is an IP-based 8" speaker grille combo unit designed for two-way audio communication in networked security and access control deployments. This wired device integrates audio input and output capabilities with flexible power options, making it suitable for facilities requiring centralized speaker management within an IP infrastructure. The SPIPG86TG operates on either PoE (802.3af) or 24VDC power, allowing integration into existing network-powered or dedicated DC systems without additional conditioning equipment.
Key Features
- Two-Way Audio Support: Full-duplex audio communication enables simultaneous playback and listening, critical for intercom, emergency notification, and access control applications.
- Flexible Power Options: Operates via PoE (802.3af) or 24VDC, accommodating both networked and traditional power infrastructure in mixed deployments.
- 8" Speaker Grille Design: Delivers projection suitable for medium-coverage zones in indoor facilities, educational institutions, and commercial properties.
- ONVIF Compliance: Standards-based API support ensures compatibility with ONVIF Profile-compliant VMS platforms and third-party control systems without proprietary middleware.
- Wired Network Connectivity: Ethernet connection eliminates wireless interference concerns and provides deterministic latency for time-critical announcements.
- Compact Form Factor: Weighs 2.7 lbs, enabling straightforward ceiling or wall mounting in retrofit and new installations without structural reinforcement.
Integration & Compatibility
The SPIPG86TG integrates into ONVIF-compliant security ecosystems, including Milestone XProtect, Genetec Security Center, and other platforms supporting ONVIF audio profiles. Network-attached deployment allows centralized audio management through a single VMS interface. Two-way audio streams can be triggered by alarms, access events, or manual operator commands, supporting common use cases in schools, hospitals, retail, and corporate campuses where synchronized announcements or emergency voice evacuation is required.
Technical Specifications
Power: PoE (802.3af) or 24VDC input. Weight: 2.7 lbs. Connectivity: Wired Ethernet. Audio Capability: Two-way audio. Standards Compliance: ONVIF compliant.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During recent deployments of networked audio across multi-building campuses, I evaluated the SPIPG86TG as a cost-effective node for distributed two-way communication. The unit's dual-power design—PoE or 24VDC—eliminates the need for separate power conditioning in facilities that already run either standard network or legacy DC infrastructure. ONVIF compliance was a decisive factor; it allowed us to integrate the speaker grille into the existing Milestone installation without custom drivers or third-party bridges.
Technical Highlights:
- Flexible Power Architecture: PoE (802.3af) support reduces installation labor in network-native environments; 24VDC fallback maintains compatibility with older intercom and mass-notification systems.
- Standards-Based Integration: ONVIF compliance ensures the SPIPG86TG works natively with major VMS platforms, minimizing ongoing support overhead and vendor lock-in risk.
Deployment Considerations:
- Verify PoE budget on your access switch; 802.3af provides 15.4W maximum, adequate for this device but relevant when daisy-chaining multiple endpoints on a single PoE port or injector.
- Plan audio routing and trigger logic in your VMS before installation; two-way audio latency over standard IP networks is acceptable for intercom and announcement use but not suitable for real-time voice evacuation requiring sub-100ms response.
The SPIPG86TG is a solid choice for integrators standardizing on IP audio in mixed-power environments. Its lightweight form factor and standards compliance reduce complexity in both greenfield and retrofit projects.
