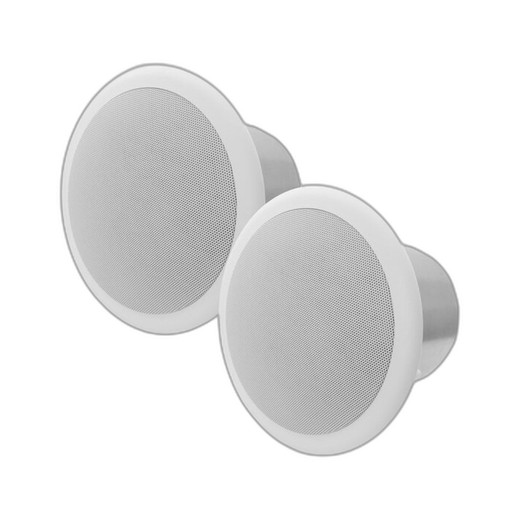

Speco Technologies SP6NXCTUL 6.5" UL Listed Metal Back Can Speaker Pair
The Speco Technologies SP6NXCTUL is a two-speaker commercial audio system purpose-built for life safety, emergency notification, and overhead paging in schools, hospitals, offices, warehouses, and industrial facilities. The UL listing is not cosmetic—it's a legal mandate in most U.S. jurisdictions for emergency notification systems. Non-UL speakers risk project rejection during final fire code inspection. This product clears that compliance hurdle on paper.
Key Features
- 6.5-Inch Driver: Optimized for voice intelligibility across mid-to-large open areas. A 6.5-inch driver prioritizes the speech frequency band (300 Hz–3 kHz), not full-spectrum music playback. This focused response means announcements stay crisp in noisy environments—warehouses, production floors, busy lobbies—where clarity is non-negotiable. Smaller than 8-inch variants, so if your deployment is heavy on music background, consider a larger model; for emergency alerts and paging, this size delivers.
- 70V Constant-Voltage Transformer (Integrated): Each speaker includes a transformer that lets you run speaker cables 100–150 feet without signal loss or impedance mismatch—the standard commercial audio architecture. A single 70V amplifier can feed 20+ speakers in parallel without degradation. This eliminates the per-zone amplifier approach that balloons costs and complexity on multi-floor or campus-scale deployments. Retrofit projects benefit: add speaker pairs to legacy systems without rip-and-replace.

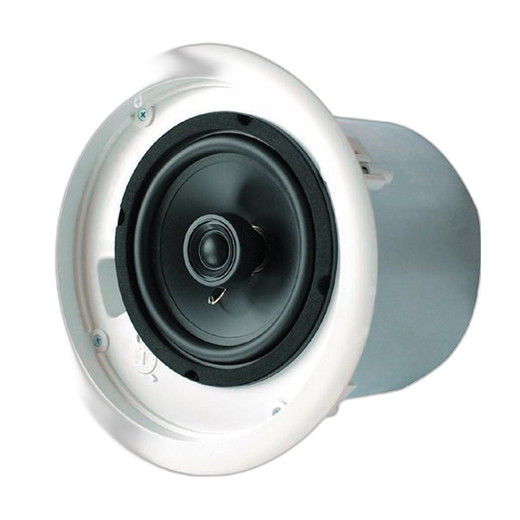

- Metal Back Can Enclosure: Rigid steel housing resists mechanical damage during installation, won't flex or rattle under vibration, and protects the driver cone from accidental contact or debris. Matters more in rough construction or retrofit work than cosmetics. Durability translates to lower replacement rates on high-traffic sites.
- UL Listed (UL 2043 Life Safety): Certification for use in emergency notification and life safety audio systems. Non-negotiable for schools, hospitals, and government facilities. Fire marshals and building inspectors demand UL compliance; this product satisfies that requirement.
- Included Ceiling/Wall Mounting Bracket and Hardware: Ships with brackets and fasteners for drop-ceiling or surface-mount installation. No sourcing separate hardware, no project delays waiting for bracket SKUs. Flat-mounting orientation works with standard commercial suspended ceilings.
- Pair Configuration (Two Speakers): Each order includes two units. Simplifies dual-zone or stereo deployment without separate ordering. Reduces SKU sprawl and inventory complexity on large multi-building projects.
Integration & Compatibility
The SP6NXCTUL connects to any industry-standard 70V constant-voltage amplifier output—no proprietary connectors or vendor lock-in. Integrates with Speco amplifiers, Bogen systems, Community boxes, or other OEM equipment already in your rack. Retrofit projects benefit from this openness: you can add speaker pairs to legacy systems without ripping out existing amplification.
Scaling is straightforward: each speaker pair draws proportional power from the amplifier; you size the amp once, then add speaker pairs as zones expand. Voice intelligibility depends on cable impedance and run length. Standard commercial installations (under 150 feet) see no degradation. Long runs exceeding 200 feet in high-noise environments may require boost amplifiers or impedance compensation, but that's an edge case, not the norm.
Typical Deployments
Education: Emergency lockdown announcements, fire drills, and class-change bells across multiple buildings. Warehouse / Manufacturing: Production floor overhead paging tied to shift systems, material handling announcements. Multi-Tenant Office: Tenant-specific or building-wide announcements, emergency alerts. Parking Structures: Safety zone notifications, security announcements. Healthcare: Code announcements, patient communication, emergency notifications.
What's in the Box
Each order includes two 6.5-inch metal back can speakers with integrated 70V transformers, two ceiling/wall mounting brackets, and fastener hardware. Connection to a 70V amplifier or mixer is your only additional requirement—no external transformers, no per-speaker power supplies.
Frequently Asked Questions
Q: Does the SP6NXCTUL work with my existing 70V amplifier?
A: Yes. The SP6NXCTUL integrates with any standard 70V constant-voltage amplifier. No proprietary connections or brand-specific requirements. Retrofit projects are straightforward.
Q: How many speakers can I connect to a single 70V amplifier?
A: Depends on the amplifier's power rating and the transformer tap settings on each speaker. Most commercial 70V amps support 20+ speakers in parallel. Consult your amplifier's documentation for the specific power budget calculation.
Q: What's the maximum cable run distance?
A: Standard installations support 100–150 feet without signal loss. Runs exceeding 200 feet in noisy environments may require impedance compensation or a boost amplifier. For typical commercial buildings, 150 feet is the safe baseline.
Q: Is the UL listing required for my project?
A: If your project is a school, hospital, government building, or any facility with fire code requirements for emergency notification, yes—UL listing is mandated. Check with your local fire marshal or building inspector. Non-UL speakers will be rejected during final inspection.
Q: Can I mount these on a wall instead of a ceiling?
A: Yes. The included bracket supports both ceiling and wall installation. Orientation flexibility is built in.
Q: Will the 6.5-inch driver work for background music?
A: The 6.5-inch driver is optimized for voice clarity. For full-spectrum music with bass extension, consider an 8-inch model. For paging and emergency alerts, this size is ideal.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SP6NXCTUL delivers compliance and scale at the same time. That integrated 70V transformer is the real win here—it eliminates the per-speaker amplification nightmare that turns a three-floor retrofit into a three-month project. You're running one amplifier and distributing 20+ speaker pairs across 300+ feet of cable without signal degradation. That's not theoretical; that's the commercial audio standard, and this pair executes it cleanly.
Technical Highlights:
- 70V Constant-Voltage Architecture: Supports 100–150 foot cable runs and 20+ parallel speakers per amplifier. Eliminates per-zone amplifiers and cuts wiring complexity on campus or multi-building deployments by roughly 60–70% compared to low-impedance alternatives.
- UL 2043 Life Safety Certification: Non-negotiable for schools, hospitals, government facilities. Non-UL speakers will be flagged during fire marshal inspection. This product clears that baseline; you avoid project delays and rejection.
- 6.5-Inch Driver Frequency Response (300 Hz–3 kHz): Optimized for voice intelligibility in noisy spaces. Delivers crisp announcements and emergency alerts. Music background playback possible but not the primary design intent—use an 8-inch variant if full-spectrum audio is the load.
Deployment Considerations:
- UL compliance is site-code dependent. Verify with your local fire marshal or AHJ before design freeze. Schools and hospitals are near-certain requirements; office parks may vary by jurisdiction.
- Cable run lengths beyond 150 feet in high-noise environments (parking structures, manufacturing plants) may introduce intelligibility loss. Boost amplifiers or impedance compensation required for edge cases; budget for that contingency in large facilities.
This pair is your go-to selection for campus-scale life safety audio, warehouse or manufacturing paging systems, and any multi-zone deployment where you need UL compliance, long cable runs, and straightforward amplifier scaling. Schools deploying emergency lockdown systems and hospitals rolling out code announcements—this is the platform.
