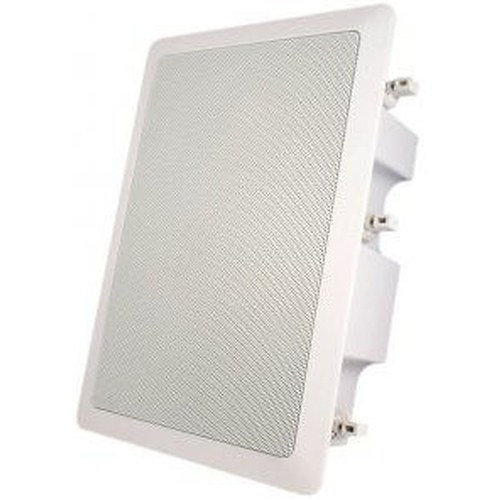

Speco Technologies SP6MAWT 6.5" In-Wall Speaker with Fiberglass Cone
The SP6MAWT is a 6.5" professional in-wall audio speaker engineered for distributed paging, announcements, and background music across multi-zone commercial facilities. This model pairs a fiberglass cone driver with a factory-integrated backbox, eliminating field assembly and ensuring consistent acoustic performance in security command centers, retail environments, corporate campuses, and healthcare facilities. Unlike speakers that require cavity fabrication in the field, the SP6MAWT arrives as a complete acoustic assembly—the backbox is pre-installed and acoustically tuned to work with the driver as a single system, preventing the acoustic anomalies that occur when cavities are improperly constructed or sized.
Key Features
- 6.5" Fiberglass Cone Driver: Fiberglass construction maintains stable frequency response across seasonal temperature and humidity swings typical in climate-controlled buildings. Paper cones can degrade, resonate unpredictably, or lose rigidity over time—fiberglass resists these failures, so audio output remains consistent year-round without tonal drift or intermittent anomalies.
- Factory-Integrated Backbox: Pre-installed acoustic enclosure eliminates assembly delays and eliminates the risk of improper cavity mounting. The backbox is engineered as part of the driver system, so you avoid acoustic reflections, cancellations, or feedback that result from mismatched enclosure volumes or cavity placement errors. Installation speed increases because you mount a finished assembly, not loose components.
- 70V/100V Line Transformer Operation: Compatible with standard transformer-based distributed audio systems deployed across multi-zone facilities. This passive design is foundational to commercial paging: a single low-power amplifier drives dozens of speakers across an entire building without zone amplifiers, reducing capital cost and eliminating complex per-zone power management. You wire the speaker to the 70V or 100V line, and audio delivery begins immediately—no configuration, no active electronics, no speaker-level power supply to fail.
- In-Wall/Ceiling Flush-Mount Form Factor: Designed for recessed installation in suspended ceilings, drywall cavities, or structural walls. Flush mounting minimizes visual profile in security operations centers and retail environments where visible audio equipment affects customer experience or workspace aesthetics. Installers can hide speaker trim rings behind drop ceilings or integrate them into architectural finishes.
- Dual Mounting Flexibility: Supports both wall and ceiling installation without requiring separate product variants. This flexibility allows integrators to route coverage to match facility layout, emergency egress routes, and acoustic zones without redesigning the deployment or sourcing alternate models.
- Passive Architecture—No Active Components: The SP6MAWT operates as a passive load on a 70V or 100V distributed line. No speaker-level amplification, no digital circuitry, no control protocol overhead. This simplicity reduces commissioning time and eliminates single points of failure specific to the speaker. If the speaker fails, swap it out; the rest of the system remains live.
Integration & Compatibility
The SP6MAWT integrates into any 70V or 100V transformer-based audio network commonly deployed in security paging systems, mass notification platforms, and integrated facilities management. Compatibility is straightforward: the speaker is a passive device, so it works with any commercial audio amplifier, paging controller, or announcement system that supports 70V or 100V operation. No active electronics, no firmware, no special wiring or control logic required. Simply wire the speaker terminals to your distributed line, secure the backbox in the cavity, and begin routing announcements, emergency alerts, or background music immediately. Integrators often deploy the SP6MAWT across facility expansions where audio coverage must scale without conduit extensions, separate amplification zones, or reconfiguration of control systems.
Deployment Considerations
Install the SP6MAWT in temperature-controlled, moisture-controlled indoor environments—corporate offices, retail locations, healthcare facilities, institutional buildings, and security control rooms. The fiberglass cone is durable but is not rated for outdoor exposure, direct sunlight, freezing cycles, or condensation environments. If you require outdoor audio coverage, specify an outdoor-rated speaker model from the distributed audio speaker category. For warehouses, manufacturing floors, or climate-controlled data centers with dust or HVAC vibration, verify that mounting cavities are properly sealed to prevent speaker performance degradation. When planning distributed audio layout, account for acoustic dead zones—areas shielded by walls, machinery, or structural elements where speaker coverage is masked. The SP6MAWT delivers localized coverage; it does not compensate for poor acoustic site surveying or placement behind acoustic barriers.
Frequently Asked Questions
Q: Can the SP6MAWT be installed in an outdoor or semi-outdoor setting such as a loading dock or covered patio?
A: No. The SP6MAWT is rated for indoor, climate-controlled environments only. Outdoor exposure, direct rain, freezing temperatures, or condensation will degrade the fiberglass cone and backbox over time. For outdoor audio, consult your integrator about weather-rated speaker models.
Q: What is the maximum number of SP6MAWT speakers I can wire to a single 70V or 100V amplifier?
A: Speaker count depends on the amplifier's output wattage, the impedance taps available on each speaker, and the total load you need to drive. Consult the amplifier's documentation and the SP6MAWT transformer specifications to calculate total line load. Exceeding the amplifier's rated output will cause distortion and potential amplifier failure. Your integrator will perform this calculation during system design.
Q: Does the SP6MAWT require any special wiring, conduit, or shielded cabling?
A: No. Standard 18 AWG or larger speaker wire rated for 70V or 100V line operation is sufficient. No shielded audio cable, balanced XLR connections, or special conduit are needed. Verify that your wire gauge supports the total line distance and load; long runs may require heavier gauge wire to minimize voltage drop.
Q: Is the backbox removable or replaceable if it becomes damaged?
A: The backbox is factory-integrated into the SP6MAWT as a complete acoustic assembly. It is not designed for field disassembly or replacement. If the backbox or driver are damaged, the entire speaker must be replaced.
Q: Can I adjust the volume at the speaker, or does volume control happen only at the amplifier or paging system?
A: The SP6MAWT is a passive speaker with no onboard volume control. All volume adjustment occurs at the paging system, amplifier, or zone controller. This design simplifies installation and ensures consistent audio levels across all zones fed by the same amplifier.
Q: What is the frequency response of the SP6MAWT, and how does it affect voice clarity in paging applications?
A: The SP6MAWT is optimized for voice clarity in paging and announcement applications. The fiberglass cone is tuned to reproduce the frequency range typical of human speech (roughly 300 Hz to 3 kHz), ensuring that paging announcements, emergency notifications, and alarm tones remain intelligible across the coverage area. Exact frequency response is documented in the manufacturer datasheet.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SP6MAWT is a workhorse for any facility relying on distributed paging across multiple zones. The 6.5" fiberglass cone is the key differentiator here—it's stable enough to handle daily thermal cycling without tonal drift or resonance problems, which matters when you're running announcements 8–12 hours a day. The factory-integrated backbox eliminates the acoustic variability that field-installed cavity mounting introduces, and that consistency is crucial when you're trying to maintain intelligible voice across 50+ speakers in a large campus or hospital.
Technical Highlights:
- Fiberglass Cone Durability: Unlike paper cones, fiberglass resists moisture absorption and thermal expansion, so frequency response stays flat year-round. This matters in facilities with 24/7 HVAC cycling or seasonal humidity swings—your paging system won't sound muffled in summer and bright in winter.
- 70V/100V Transformer Passive Design: No onboard amplification or power supply means fewer failure points. A single amplifier can drive dozens of speakers across an entire building, slashing both capital cost and ongoing maintenance overhead compared to powered speaker systems that require individual PSU replacements.
- Factory Backbox Integration: The acoustic enclosure is tuned and sealed at the factory, eliminating field mounting errors that cause acoustic phase cancellation, feedback, or dead spots. Installation speed increases because you're mounting a finished assembly, not assembling pieces on-site.
Deployment Considerations:
- This speaker is strictly indoor. Skip it for loading docks, outdoor canopies, or warehouse environments exposed to temperature extremes or moisture. Outdoor audio requires a weather-rated model.
- Speaker count on a single amplifier is limited by total line wattage and impedance taps. Calculate total load carefully during system design—exceeding amplifier limits causes distortion and failure. Your systems integrator should handle this math, but verify it before commissioning.
- No onboard volume control means all level adjustments happen at the paging system or zone controller. This simplifies installation but requires that your amplifier or paging controller supports per-zone level management if you need variable coverage across different areas.
Deploy the SP6MAWT in corporate multi-zone paging, hospital emergency notification, retail background music systems, and security command centers where consistent, long-term voice clarity is non-negotiable. The fiberglass cone and integrated backbox make it a reliable choice for facilities where acoustic performance must remain stable across years of daily use.
