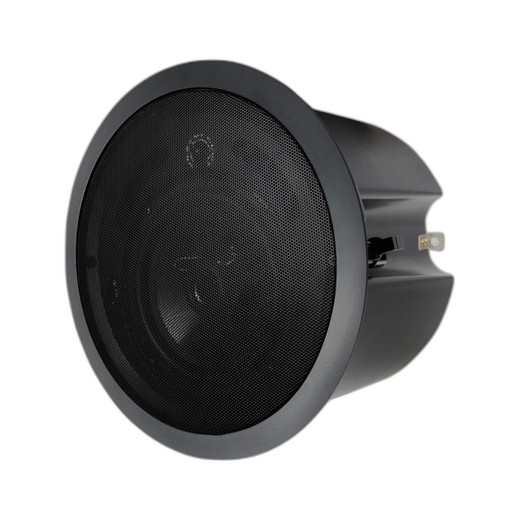

Speco Technologies SP6MATB 6.5-Inch Commercial Speaker with Integrated Backbox
The Speco Technologies SP6MATB is a transformer-coupled commercial speaker engineered for permanent installation in 25V or 70V constant-voltage audio distribution systems. This unit is purpose-built for security integrators, facility managers, and IT architects deploying multi-zone mass-notification, background music, or two-way intercom extensions across commercial, retail, educational, and hospitality environments. The factory-integrated backbox eliminates field-assembly variables and reduces installation labor — a genuine advantage when scaling audio coverage across multiple zones or buildings.
Key Features
- 6.5-Inch Full-Range Driver: Delivers balanced frequency response across typical commercial spaces (offices, corridors, retail floors, educational facilities). A 6.5-inch driver covers medium-sized zones effectively without requiring multiple speakers in series on a single amplifier circuit, reducing amplifier load and simplifying zone topology design.
- Dual-Voltage (25V/70V) Transformer-Coupled Output: The integrated transformer allows deployment on either voltage standard without additional impedance-matching hardware. This flexibility is critical in retrofit or multi-building sites where voltage standards vary by zone or legacy infrastructure runs mixed standards. You specify the voltage configuration at purchase, and the transformer adapts to your existing amplifier and distribution network — no field modifications required.
- Factory-Assembled Backbox Enclosure: The backbox is pre-built and mounted to the speaker, eliminating on-site construction and acoustic guesswork. This ensures consistent acoustic performance across all deployed units and reduces commissioning complexity. Field teams simply mount the unit and terminate the audio line — no enclosure selection, no dimensional verification, no integration delays.
- Commercial-Grade Cabinet Construction: Built for permanent installation in institutional and commercial settings. The enclosure is engineered to withstand typical building environments — low vibration risk from structural mounting, designed for interior deployment without weatherproofing concerns or outdoor exposure requirements.
- Ceiling and Wall Mounting Readiness: The SP6MATB supports both in-wall recessed mounting and drop-ceiling grid installation. This compatibility with standard commercial construction means no custom framing or aftermarket brackets in most deployments — particularly valuable in retrofit scenarios where ceiling and wall infrastructure is already in place.
- Centralized Amplifier-Level Control: Audio level adjustment is managed from the amplifier or system controller, not at the speaker unit. This architecture simplifies commissioning and allows technicians to manage gain across multiple zones from a single control point, reducing field service calls caused by level misalignment across distributed speakers.
- Direct Amplifier Integration: The speaker terminates directly to standard distributed-audio amplifier outputs or zone controller circuits using two-conductor shielded cable. Because the transformer is built into the speaker, there is no separate impedance-matching module to install or troubleshoot — a significant advantage in multi-zone systems where matching circuits and line-level audits can become complex.
Integration and Deployment Context
The SP6MATB integrates directly into any commercial audio infrastructure using 25V or 70V constant-voltage distribution. In a typical deployment, you would wire the speaker to an available amplifier output or zone tap point using standard shielded two-conductor cable. The transformer-coupled design handles voltage conversion internally, eliminating field-installed matching transformers and reducing potential failure points.
Integrators commonly deploy the SP6MATB as an extension point in existing paging, mass-notification, or background-music systems. Adding audio coverage to a new wing or floor requires only running cable from an available zone circuit to the new speaker location. The factory-assembled backbox ensures acoustic consistency across all deployed units — critical for intelligibility in mass-notification scenarios where speech clarity directly affects emergency response effectiveness.
The centralized control model means that if you need to adjust levels across a zone or troubleshoot audio distribution, all adjustments are made at the amplifier or zone controller. This reduces the need for field technicians to access individual speaker locations and cuts commissioning time when integrating into larger paging or intercom systems.
Frequently Asked Questions
Q: Can I use the SP6MATB in both ceiling and wall installations?
A: Yes. The SP6MATB supports both in-wall recessed mounting and drop-ceiling grid installation, so you can deploy it based on your facility's acoustics and aesthetic requirements.
Q: Do I need to specify 25V or 70V at the time of purchase?
A: Yes. The integrated transformer is configured for either 25V or 70V at the factory. Specify your system voltage when ordering, and the unit will arrive pre-configured for your amplifier and distribution network.
Q: Does the SP6MATB come with a separate impedance-matching transformer?
A: No. The transformer is integrated into the speaker enclosure, eliminating the need for a separate field-installed module and reducing installation complexity.
Q: How is audio level controlled on the SP6MATB?
A: Audio level is controlled from the amplifier or zone controller, not at the speaker. This centralized control approach simplifies commissioning and allows you to manage gain across multiple zones from one control point.
Q: Is the SP6MATB suitable for outdoor or high-humidity environments?
A: No. The SP6MATB is designed for permanent interior commercial installation. If you need outdoor audio coverage, consult the manufacturer for weatherproof alternatives in the Speco product line.
Q: What type of cable should I use to connect the SP6MATB to the amplifier?
A: Standard two-conductor shielded cable is recommended for audio distribution runs. Your amplifier's output impedance and the cable length will determine line loss, which your installer can calculate using standard audio distribution design practices.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SP6MATB is a solid choice when you're scaling audio coverage in existing 25V or 70V constant-voltage systems and the factory-integrated backbox is a real time-saver. I've seen plenty of installs where field teams spent hours guessing enclosure dimensions or installing impedance-matching transformers in tight ceiling spaces — the pre-assembled backbox eliminates that friction entirely. The dual-voltage transformer is genuinely useful on retrofit jobs where you're adding zones to buildings running mixed infrastructure standards.
Technical Highlights:
- Integrated Transformer (25V or 70V configurable at purchase): Eliminates field-installed matching modules and the troubleshooting burden they create. On multi-zone systems with dozens of speakers, removing impedance-matching variables reduces commissioning time and failure points significantly.
- 6.5-Inch Full-Range Driver with Pre-Built Backbox: Covers medium-sized zones effectively (offices, corridors, retail floors) without requiring multiple speakers in series on a single amplifier circuit. The factory-assembled enclosure ensures consistent acoustic performance across all deployed units — critical for speech intelligibility in mass-notification deployments.
- Centralized Level Control via Amplifier: Audio gain adjustments are made at the system controller, not at individual speakers. This means technicians manage the entire zone from one control point, cutting field service calls caused by speaker-level misalignment and simplifying commissioning workflows.
Deployment Considerations:
- The SP6MATB is interior-only — no weatherproofing or IP rating. If you need outdoor audio coverage, this isn't the unit. Verify your facility design calls for protected, climate-controlled installation spaces.
- Audio level control lives at the amplifier. If your system design requires independent speaker-level adjustment, this centralized architecture may not match your use case — clarify control requirements with your system integrator before ordering.
The SP6MATB is best suited for warehouse automation facilities, commercial office buildings, schools, or hospitality deployments where you're adding audio coverage to existing 25V/70V infrastructure and installation speed matters. The factory backbox eliminates field guesswork, and the dual-voltage transformer makes retrofit integration straightforward — a genuine win for multi-building campus sites or facilities with legacy audio standards.
