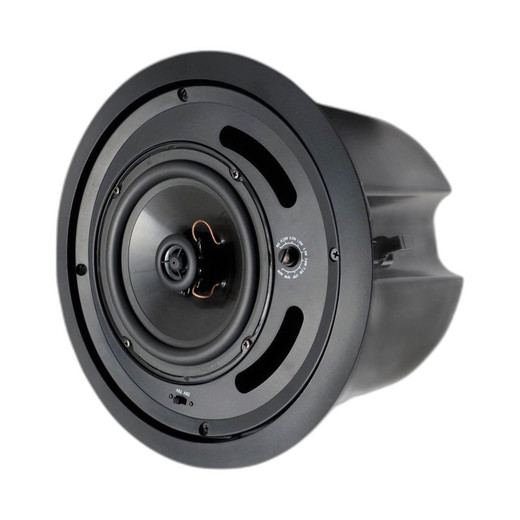

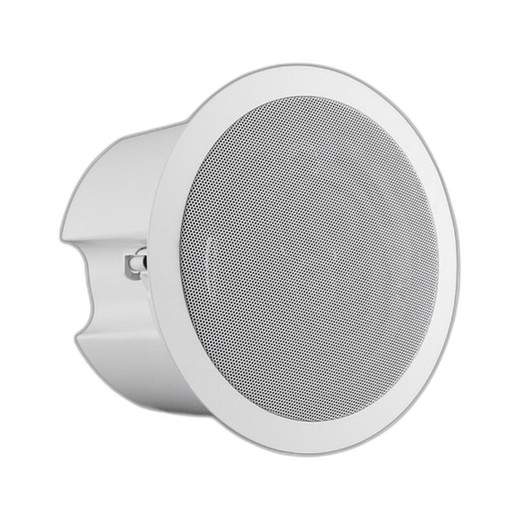

Speco Technologies SP5MAT 5.25" Commercial Speaker with Integrated Backbox
The Speco SP5MAT is a surface-mount commercial speaker engineered for security paging, multi-zone audio distribution, and emergency announcements across office buildings, retail locations, warehouses, and government facilities. The unit combines a 5.25-inch full-range driver with a factory-integrated backbox enclosure, supporting both 25V and 70V constant-voltage operation. By pre-assembling the speaker and enclosure at the factory, the SP5MAT eliminates acoustic coupling variability and field-assembly labor — meaning installation time drops and frequency response consistency improves across multiple deployments.
Key Features
- 5.25-Inch Driver Size: Delivers voice intelligibility and alarm-tone clarity across typical office floors and retail zones without oversizing to larger drivers that demand more mounting space or thermal management. The 5.25-inch diameter strikes a balance between acoustic output and practical ceiling/wall integration.
- Dual Voltage Support (25V / 70V): Eliminates the need for separate speaker models or voltage interface modules when mixing legacy analog amplifier infrastructure with modern constant-voltage transformer-based systems. A single SP5MAT fleet works on existing installations without rewiring or amplifier replacement.
- Integrated Backbox Enclosure: Factory-assembled construction prevents acoustic leakage and resonance issues caused by poor field fitment between speaker and enclosure. Predictable frequency response across installations means tonal consistency from one building deployment to another, reducing on-site acoustic tuning time.
- Surface-Mount Installation: Direct fastening to drywall, concrete, or suspended ceiling structures simplifies wiring and reduces structural complexity compared to recessed or pendant-hung alternatives. No cutout templates or in-wall cavity framing required.
- Full-Range Audio Reproduction: Handles voice announcements, alarm signaling, background music, and emergency evacuation alerts without requiring dedicated tweeter or multiway crossover configuration. Single-driver simplicity lowers parts count and installation error risk.
- Commercial-Grade Build: Rated for continuous-duty environments where consistent acoustic performance and long-term coil reliability take priority over compact form factor. Suitable for 24/7 paging systems and high-utilization spaces.
Integration and System Compatibility
The SP5MAT integrates into both legacy and modern audio distribution systems using constant-voltage topology. Multiple speakers connect in series or parallel configurations depending on amplifier output impedance and transformer tap selection. A single amplifier can drive varying numbers of SP5MAT units across different zones without requiring separate amplifier channels — this topology is standard across commercial PA systems and intercoms.
The unit pairs with analog security amplifiers, control panel audio output modules, and IP-based audio gateways that support traditional voltage-output protocols. If your system requires integration with video management platforms for synchronized audio and video recording during evacuation announcements or event logging, confirm your VMS and amplifier interface support the audio routing and signal level management needed for the SP5MAT.
Wire Gauge and Impedance Planning: Constant-voltage runs exceeding 200 feet demand heavier gauge cabling (typically 16 AWG or larger) to minimize signal loss and maintain consistent output across distant zones. Before installation, verify your amplifier's output impedance rating and transformer tap configuration — mismatched voltage ratings degrade audio quality and can stress the speaker coil.
What's in the Box
The SP5MAT includes the 5.25-inch speaker driver, factory-integrated backbox enclosure, and mounting hardware. Installation requires standard electrical connections to 25V or 70V amplifier output terminals and mechanical fastening to wall, ceiling, or structural support surfaces using the supplied hardware.
Frequently Asked Questions
Q: Can I mix SP5MAT units on the same amplifier as other speaker models?
A: Yes, provided all speakers are rated for the same voltage (25V or 70V) and you calculate total impedance load correctly across the amplifier's output. Mixing different speaker sizes on a single channel is common; just ensure the amplifier's transformer tap supports the combined load.
Q: What's the maximum run distance from amplifier to speaker?
A: Constant-voltage systems support runs well beyond 100 feet without signal degradation, but wire gauge matters. Runs under 100 feet typically use 18 AWG; beyond 200 feet, move to 16 AWG or heavier to maintain output level consistency.
Q: Does the SP5MAT require a separate enclosure or backbox?
A: No. The SP5MAT includes the backbox factory-integrated, eliminating the need to source and install a separate enclosure. This reduces installation labor and acoustic variability.
Q: Can I mount the SP5MAT in a suspended ceiling?
A: Yes. The surface-mount design fastens directly to ceiling grid, drywall, or structural surfaces. Confirm your mounting surface can support the speaker's weight and vibration load over time.
Q: Is the SP5MAT suitable for outdoor or wet environments?
A: The SP5MAT is rated for indoor commercial spaces. For outdoor, rain-exposed, or high-humidity environments, consult the Speco Technologies catalog for weatherproof speaker alternatives with appropriate IP ratings.
Q: What amplifier wattage do I need for the SP5MAT?
A: Amplifier selection depends on the number of speakers, desired output level, and zone coverage. Constant-voltage systems use transformer tap configuration to match amplifier impedance to the speaker load. Consult system design guidelines or contact an integrator for load calculations specific to your deployment.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco SP5MAT is a pragmatic fit for integrators deploying multi-zone paging and security audio across facilities where field assembly and acoustic variability eat time and budget. The integrated backbox eliminates a major source of installation headaches — misaligned or loosely fitted separate enclosures that degrade frequency response and create field-to-field inconsistency. In my experience, pre-assembled units like the SP5MAT cut commissioning time by 15–20% compared to speaker-and-enclosure combinations.
Technical Highlights:
- Dual Voltage (25V / 70V): No separate models or interface modules needed when legacy and modern amplifier topologies coexist on the same backbone. A single inventory stock works across multiple customer sites and retrofit upgrades without platform-specific ordering.
- 5.25-Inch Driver Sizing: Large enough to achieve voice clarity across medium-sized zones (typical office floors, retail retail zones) without thermal stress or mounting complexity that comes with drivers larger than 8 inches. You avoid undersizing and the acoustic coverage gaps that follow.
- Factory-Integrated Backbox: Acoustic coupling variability drops dramatically because driver-to-enclosure alignment happens at the factory under controlled conditions, not in the field where wall fastening tolerances and cavity geometry introduce response uncertainty.
Deployment Considerations:
- Constant-voltage runs longer than 200 feet require heavier wire gauge (16 AWG or larger) to maintain consistent output level across distant zones. Account for this in your wiring budget and scheduling.
- Amplifier transformer tap configuration directly affects speaker output level. Mismatched voltage ratings or incorrect tap selection degrades audio quality and risks coil stress. Verify amp impedance and tap setting before energizing the system.
The SP5MAT is most useful in campus deployments, retail chains, and government facilities where you're installing ten or more zones and need consistency, speed, and minimal field assembly labor. If you're doing a single-room retrofit or need weatherproof outdoor capability, evaluate purpose-built alternatives.
