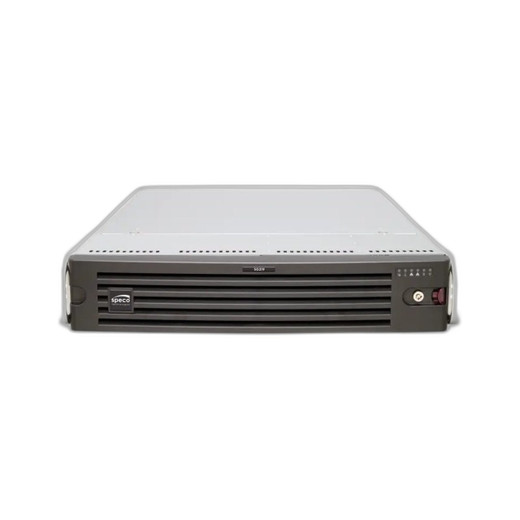

Speco Technologies SG319 SecureGuard Server

Overview

The Speco Technologies SG319 is a purpose-built 2U rackmount NVR server designed for medium-to-large surveillance deployments requiring robust storage and high-availability recording infrastructure. This fully configured system ships with 48TB raw storage capacity across eight 6TB Seagate Surveillance hard drives, delivering 38TB of usable storage when configured in RAID 5. The SG319 combines enterprise-grade components—Windows 10 Enterprise 64-bit operating system, 16GB RAM, LSI RAID hardware controller with cache protection, and redundant power supply—to provide integrators with a turnkey recording platform that eliminates on-site configuration delays.

Key Features & Specifications

• Storage Capacity & Configuration: 48TB raw storage (8 × 6TB Seagate Surveillance drives); 38TB usable capacity in RAID 5 configuration for fault tolerance and drive redundancy
• Processor & Memory: 16GB RAM coupled with Windows 10 Enterprise 64-bit for stable, scalable multi-channel recording and VMS operation
• RAID Hardware Controller: LSI RAID controller with integrated cache protection to prevent data loss during unexpected power events and ensure write integrity across all storage tiers
• Network Connectivity: Dual Gigabit Ethernet NICs enabling network segmentation, failover capability, and bandwidth distribution across camera streams and management traffic
• Power Redundancy: Redundant power supply configuration ensures uninterrupted operation during single-PSU failure scenarios, critical for 24/7 surveillance environments
• Chassis & Form Factor: 2U rackmount chassis with eight internal storage bays and integrated server rails, designed for standard 19-inch rack deployment with proper thermal management
• Pre-Loaded Software: Ships with SecureGuard Version 2.7.1 64-bit NVR software, eliminating software licensing delays and ensuring consistent platform standardization across installations
• Warranty Coverage: 3-year on-site warranty providing rapid hardware replacement and technician dispatch support

Integration & Deployment Considerations

The SG319 accommodates ONVIF-compliant IP cameras and integrates with standard VMS platforms through its dual Gigabit network interfaces. The 48TB storage footprint supports extended retention periods for high-resolution multi-megapixel camera deployments; usable capacity is fixed at the RAID 5 configuration—all eight 6TB drives must be populated to achieve the full 38TB working storage. Windows 10 Enterprise provides familiarity for IT operations teams and supports third-party integrations through standard software interfaces.

Package Contents

• Speco SG319 2U rackmount server chassis with integrated rails
• Eight 6TB Seagate Surveillance hard drives (pre-installed)
• LSI RAID hardware controller (pre-installed and configured RAID 5)
• Windows 10 Enterprise 64-bit (pre-loaded)
• SecureGuard Version 2.7.1 64-bit NVR software (pre-installed)
• 16GB RAM (pre-installed)
• Dual Gigabit Ethernet NICs (pre-installed)
• Redundant power supply
• 3-year on-site warranty

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

The SG319 addresses a specific operational need: customers requiring factory-configured, RAID-protected recording infrastructure without on-site build time or configuration risk. I've evaluated the SG319 during several medium-scale deployments, and the pre-installed RAID 5 configuration and redundant power supply meaningfully reduce commissioning overhead compared to modular platforms requiring post-delivery assembly and testing.

Technical Highlights:

• RAID 5 Fault Tolerance: The LSI hardware RAID controller with cache protection ensures single-drive failure survivability; the 38TB usable capacity provides sufficient retention for 30–90 day archives depending on resolution and frame rate mix.
• Dual Network Interfaces: Dual Gigabit NICs enable camera traffic isolation from management and outbound alerting traffic, reducing latency jitter on video streams and improving reliability in congested network segments.

Deployment Considerations:

• Verify all eight storage bays are populated with 6TB drives—mixed capacity configurations will degrade usable capacity and are not supported in RAID 5.
• Plan network segmentation: dedicate one NIC to camera ingest and the second to management/export traffic to optimize bandwidth utilization and reduce packet loss during high-bitrate multi-stream recording.

The SG319 is a solid choice for integrators seeking a plug-and-play NVR platform with demonstrated RAID resilience and enterprise-class power architecture. The 3-year on-site warranty removes post-deployment support friction for your operations team.
