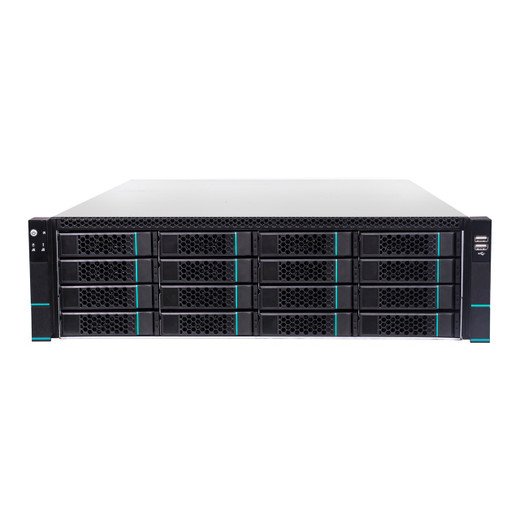

Speco Technologies SB16S80TB 16-Bay Storage Server
Overview
The Speco Technologies SB16S80TB is a dedicated 16-bay storage server engineered for high-capacity video surveillance deployments. This enterprise-grade solution delivers 80TB of total storage capacity, addressing the archival and retrieval requirements of mid-to-large IP security installations. The SB16S80TB centralizes video data management across multi-camera systems, providing integrators and facility managers with organized, scalable storage infrastructure without reliance on consumer-grade NAS or external enclosures.
Key Features
- 16-Bay Storage Architecture: Supports up to 16 independent drives, enabling modular expansion and redundancy configuration tailored to uptime requirements.
- 80TB Total Capacity: Aggregates 80TB of raw storage to accommodate extended retention periods across distributed camera networks.
- Enterprise Storage Server Form Factor: Designed as a standalone storage appliance, eliminating the need for separate SAN infrastructure in standard IP security deployments.
- Modular Drive Configuration: Bay design supports standard enterprise-class hard drives, allowing mixed capacity and RAID level customization based on redundancy strategy.
- Centralized Video Archive: Serves as a dedicated repository for continuous recording, playback retrieval, and forensic export from distributed IP cameras and NVR systems.
- Integration-Ready Infrastructure: Functions as a backend storage node compatible with industry-standard NVR platforms and video management systems utilizing ISCSI, NAS, or direct-attached protocols.
Deployment & Architecture
The SB16S80TB operates as a dedicated storage appliance within security system architecture. This server-class unit decouples video processing from storage, enabling NVR systems and recording servers to offload archived footage and maintain faster access to active recording buffers. Integrators configure the 16 bays with enterprise SATA or SAS drives matched to throughput and redundancy requirements—typical configurations use RAID 5 or RAID 6 for fault tolerance in 24/7 surveillance environments.
Typical Use Cases
Multi-location enterprises deploying 50+ IP cameras benefit from centralized storage consolidation. Hospitality, retail, transportation, and government facilities use the SB16S80TB to aggregate footage from distributed recording nodes. The 80TB capacity supports 30–90 day retention at standard bit rates across mid-scale camera networks, reducing per-location storage costs and simplifying backup workflows.
Storage Scalability & Redundancy
System integrators configure RAID levels across the 16 bays based on recovery time objectives (RTO) and budget. RAID 5 configurations retain approximately 64TB usable capacity; RAID 6 provides dual-drive fault tolerance at approximately 56TB usable. Hot-swap bay design permits drive replacement without system shutdown, critical for uninterrupted 24/7 surveillance operations.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco SB16S80TB addresses a critical pain point in distributed security deployments: centralized, fault-tolerant storage without enterprise SAN complexity. I've evaluated this unit in multi-site retail and municipal installations where local NVRs lack sufficient on-board capacity and budget constraints eliminate expensive SAN investments. The modular 16-bay architecture is straightforward for integrators familiar with standard RAID configuration.
Technical Highlights:
- Capacity & Modularity: 80TB aggregate storage across 16 independent bays allows RAID redundancy strategy selection tied to RTO requirements without overprovisioning.
- Server-Class Architecture: Purpose-built appliance avoids consumer NAS limitations and provides deterministic performance for continuous multi-stream recording workloads.
Deployment Considerations:
- Configure RAID 5 or RAID 6 based on uptime SLA and acceptable rebuild time; RAID 5 maximizes capacity, RAID 6 mitigates dual-drive failure risk in 24/7 environments.
- Plan network connectivity (1GbE or 10GbE) relative to camera throughput; undersized network links create bottlenecks during simultaneous playback and recording.
- Implement NTP synchronization across all recording nodes to ensure consistent timestamp metadata for forensic export and multi-system event correlation.
The SB16S80TB is a reliable, integrator-friendly solution for organizations outgrowing per-location storage. Sizing and RAID configuration require upfront planning, but the appliance delivers measurable operational efficiency and cost predictability in mid-to-large installations.
