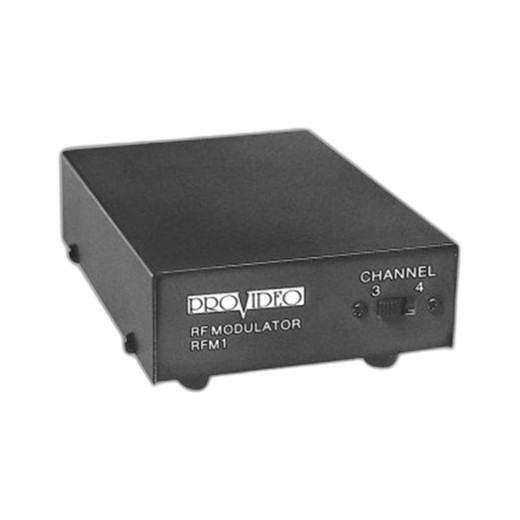

Speco Technologies RFM1A RF Modulator
The Speco Technologies RFM1A is a single-channel RF modulator designed for professional security and surveillance installations requiring video signal distribution across coaxial cable networks. This modulator converts baseband video signals to RF-modulated output on either Channel 3 or Channel 4, enabling integration with existing cable television distribution systems and legacy video distribution infrastructures commonly found in multi-unit residential, commercial, and institutional deployments.
Overview
The RFM1A modulator addresses a specific technical requirement in hybrid surveillance architectures where analog or digitized video sources must be combined with existing RF distribution networks. By converting video signals to standard television channels, the RFM1A enables single-coax distribution to multiple display endpoints without requiring dedicated video cabling. This approach simplifies wiring in retrofit installations and leverages existing cable plant infrastructure.
Key Features
- Single-channel RF modulation output selectable to Channel 3 or Channel 4
- Baseband video input for flexible source compatibility
- Professional-grade RF output for coaxial cable distribution
- Compact form factor suitable for equipment rack or wall-mount installation
- Standard power supply operation for integration into facility electrical systems
- Durable construction for continuous operation in security control room and distribution environments
Integration & Compatibility
The RFM1A integrates into hybrid video distribution systems where RF-based signal transport is required. The modulator accepts standard baseband video input, making it compatible with analog camera outputs, video decoder outputs, DVR/NVR composite video feeds, and video processor outputs. Output is delivered as RF-modulated signal on coaxial cable, allowing distribution to multiple television receivers, video distribution amplifiers, or RF-aware display systems. This architecture supports installations where centralized video origination points require distribution to multiple remote display locations across existing cable infrastructure.
Installation of the RFM1A requires standard AC power supply connection and coaxial input/output termination. Channel selection (3 or 4) is typically set via hardware configuration during installation to avoid RF frequency conflicts with other broadcast or security signals operating on the same cable network. RF cable shielding and proper termination are essential to maintain signal quality and prevent interference with adjacent channels.
Deployment Considerations
The Speco RFM1A is engineered for indoor installation in equipment rooms, control centers, and headend facilities where environmental protection and stable operating conditions are maintained. Its use is appropriate in retrofit scenarios where RF distribution infrastructure exists and video signal modernization is required without complete cable replacement. System designers should verify Channel 3/4 frequency availability on the target distribution network and confirm compatibility with receiving equipment before deployment.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The RFM1A continues to serve a practical role in installations where legacy RF distribution must remain operational while video sources are being modernized. I've encountered this modulator in several multi-building campuses and larger residential complexes where replacing the coaxial backbone isn't economically feasible. The RFM1A bridges that gap effectively.
Technical Highlights:
- Channel Selection: Fixed output to Channel 3 or Channel 4 allows adaptation to existing RF allocations without on-the-fly reconfiguration
- Signal Conversion: Baseband-to-RF modulation maintains video quality across extended coaxial runs where direct video distribution would introduce signal degradation
Deployment Considerations:
- Verify Channel 3/4 availability on your cable plant before installation; frequency conflicts with local broadcast or security systems will cause signal disruption
- Ensure all coaxial terminations meet 75-ohm specification; improper impedance matching degrades RF output and reduces distribution distance
- Place the RFM1A in a climate-controlled equipment room to ensure stable long-term operation and prevent thermal stress on components
For retrofit projects or installations where RF distribution infrastructure is already established, the RFM1A provides a cost-effective solution. Confirm receiver compatibility with Channel 3/4 RF input before full system deployment.
