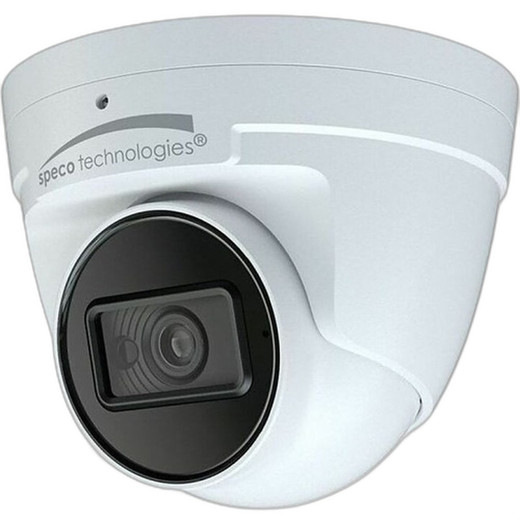

Speco Technologies O8VT3M 8MP H.265 Turret Camera
Overview

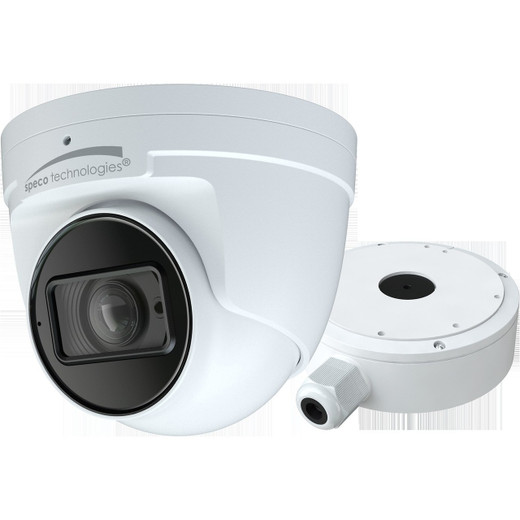

The Speco Technologies O8VT3M is an 8MP turret-style network camera designed for integrators and IT architects deploying mid-range surveillance across mixed indoor and outdoor environments. It pairs an 8-megapixel sensor with motorized varifocal optics and integrated infrared illumination in a compact turret form factor—the form helps when ceiling or corner mounting is needed and you want lens adjustment accessibility during commissioning. The O8VT3M ships with a junction box included, reducing on-site assembly time. NDAA compliance confirms no Chinese sourced components, supporting federal procurement and defense contractor deployments.
Key Features
- 8MP resolution (3840 × 2160) at 30 fps: Delivers forensic-grade detail for license plate recognition and facial identification without frame-rate penalties when recording 24/7—motion stays smooth even in high-traffic zones.
- Motorized 2.8-12mm varifocal lens: Adjust focal length remotely after installation, eliminating return visits to reframe coverage. At 2.8mm you get ~108° horizontal FOV for wide corridor or parking lot shots; at 12mm the ~30.5° horizontal FOV narrows to catch detail on a specific zone or perimeter line.
- H.265 (HEVC) primary codec: Cuts storage and bandwidth requirements roughly in half versus H.264 at the same quality level—a real factor when you're recording dozens of cameras 24/7 to local NVR or cloud. H.264 fallback ensures compatibility with legacy VMS systems and recorders that don't yet support H.265; MJPEG is available for low-bandwidth event clips and snapshot workflows.
- Infrared illumination for day-night operation: Built-in IR enables low-light and zero-light monitoring without external lighting. Refer to manufacturer specs for specific IR range and minimum illumination values under active IR.
- PoE+ (802.3at) power: Draws power over standard Gigabit Ethernet—no separate 12V supply line required. Simplifies cabling runs, reduces installation labor, and eliminates power outlet hunting in difficult mounting locations.
- ONVIF Profile S compliance: Standardized event triggers, motion detection, and metadata streaming across compatible VMS platforms (Milestone, Genetec, Hanwha, etc.). Verify edge analytics support (object detection, people counting, loitering) with your specific VMS or contact Speco for built-in capability confirmation.
When This Is the Right Choice
Select the O8VT3M when your project requires flexible field-of-view adjustment without pan-tilt-zoom mechanics, reliable low-light performance, and bandwidth efficiency across bandwidth-constrained or multi-camera sites. The motorized zoom reduces total camera count compared to fixed-lens alternatives—one O8VT3M can cover a corridor end-to-end or a parking lot at varying zoom levels from a single mount point. The turret style suits wall, ceiling, and corner placements where dome profiles create blind spots or where you need lens accessibility during site commissioning.
When to Choose Differently
If your site demands active pan-tilt-zoom tracking or follows moving subjects across a wide area, evaluate dedicated PTZ models instead. For extreme low-light or zero-illumination indoor spaces where IR range is insufficient, consult thermal or higher-sensitivity alternatives. If deployment falls outside federal compliance scope, non-NDAA variants in the Speco Technologies IP camera line may offer additional features at lower cost.
Integration and Compatibility
The O8VT3M integrates with any ONVIF-capable VMS platform over standard Gigabit Ethernet. Network architecture should reserve adequate PoE+ power budget on your switch—verify your switch can deliver 30W per port if planning multiple high-power cameras. Bandwidth: H.265 stream bitrates depend on scene complexity and motion; start with 8–16 Mbps for 30 fps at 8MP and validate against your storage and network capacity. IP camera selection guides can help you model total system throughput. For large deployments, consult a camera and NVR sizing guide to confirm storage and streaming architecture. If you're building out PoE infrastructure, factor in switch capacity planning early in the design.
Frequently Asked Questions
Q: Is the O8VT3M NDAA Section 889 compliant?
A: Yes. NDAA compliance confirms no Chinese-origin components, supporting federal procurement and defense contractor deployments.
Q: What is the maximum infrared illumination range?
A: Refer to the manufacturer datasheet for specific IR range and minimum illumination values. IR range varies based on scene reflectivity and target size; contact Speco directly for range benchmarks under your lighting conditions.
Q: Can I adjust the lens zoom after the camera is mounted?
A: Yes. The motorized 2.8-12mm lens supports remote focal-length adjustment via network control, eliminating physical access after installation.
Q: Which VMS platforms does the O8VT3M support?
A: ONVIF Profile S compliance means compatibility with any ONVIF-capable VMS (Milestone XProtect, Genetec Security Center, Hanwha Wisenet, etc.). Verify edge analytics features (object detection, people counting) with your specific VMS or contact Speco.
Q: How much bandwidth does the O8VT3M consume?
A: H.265 bitrate depends on scene complexity and motion. Expect 8–16 Mbps for 30 fps at 8MP resolution; validate against your storage and network capacity using your VMS's bitrate calculator.
Q: Is a junction box included?
A: Yes. The O8VT3M ships with a junction box, simplifying installation and reducing on-site assembly time.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The O8VT3M occupies a practical middle ground: it's not a budget fixed-lens camera, but it avoids the cost and complexity of PTZ mechanics. The motorized varifocal design is the real win—you commission the camera, adjust focal length remotely during VMS setup, and walk away without return trips. The H.265 codec pays for itself on any multi-camera deployment where bandwidth or storage is tight. If you're building a warehouse, parking lot, or office corridor system and need flexibility without active tracking, the O8VT3M is worth serious consideration.
Technical Highlights:
- 8MP at 30 fps with H.265: Full-resolution video at standard frame rate with 50% bandwidth savings versus H.264—real money saved on storage infrastructure and network egress over 24/7 recording lifecycles.
- Motorized 2.8-12mm lens: ~108° wide FOV at 2.8mm down to ~30.5° at 12mm gives you wide-to-narrow coverage from one mount. No PTZ hunting, no mechanical wear, just electric lens adjustment via the API.
- PoE+ single-cable power: 802.3at delivery eliminates a separate 12V run and simplifies switch provisioning—just budget the wattage correctly on your PoE infrastructure.
Deployment Considerations:
- The turret form factor requires wall, ceiling, or corner mounting—not ideal for rail or pendant applications where a mini-dome or bullet would hang more naturally.
- H.265 bitrate depends heavily on scene motion and complexity. Budget conservatively (12–16 Mbps baseline) and test your actual deployment before finalizing storage specs. Legacy VMS systems without H.265 support will need H.264 fallback, which increases bandwidth by ~2x.
- IR range and minimum illumination are not specified in brief docs—obtain detailed specs from Speco before finalizing low-light requirements. Don't assume IR performance matches higher-end models.
Best fit: multi-camera warehouse, parking lot, or industrial perimeter deployment where you need flexible zoom, reliable IR performance, and NDAA compliance, but don't require tracking or extreme low-light sensitivity. Budget the H.265 bitrate conservatively and confirm PoE+ headroom on your switch before ordering.
