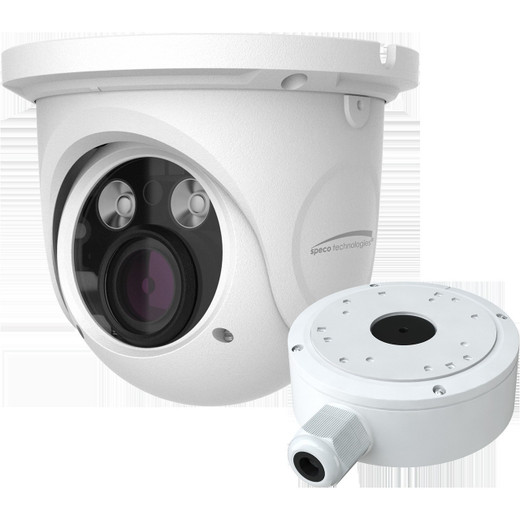

Speco Technologies O4DT6M 4MP Turret IP Camera
Overview
The Speco Technologies O4DT6M is a fixed turret-form IP camera designed for outdoor surveillance installations requiring flexible focal length adjustment and reliable low-light performance. This camera delivers 4MP resolution (2592×1520) with a motorized 3.3-12mm lens, enabling operators to adjust field of view without physical camera repositioning. The O4DT6M combines wired PoE connectivity, true day/night capability, and IP66-rated environmental protection, making it suitable for mixed indoor/outdoor deployments where adaptability and durability are priorities.
When this is the correct choice
Select the O4DT6M when your installation requires a fixed turret camera with varifocal lens capability. This model excels in scenarios where:
- Field of view adjustment is needed post-deployment without repositioning the camera body
- 4MP resolution meets identification requirements for mid-range monitoring (up to 30–40 feet effectively)
- PoE power infrastructure is already available or being deployed
- Outdoor or semi-exposed mounting locations demand IP66 environmental sealing
- Standard H.265/H.264 codec support aligns with existing ONVIF-compliant VMS platforms
When to choose a different model
Consider alternative products if:
- Your application demands higher resolution (8MP or greater) for long-distance facial recognition or license plate capture
- Pan-tilt-zoom functionality is required for wide-area tracking
- Extreme temperature environments exceed the operating range of -40°F to 140°F
- You need audio analytics or two-way communication beyond basic microphone input
- Vandal-resistant housing (dome dome with IK rating) is mandatory for high-risk locations
Optics and field of view
The motorized 3.3-12mm varifocal lens provides flexible focal adjustment, spanning wide-angle to moderate telephoto perspectives. This range allows integrators to optimize coverage without installing multiple cameras or repositioning hardware. The 1/3" CMOS sensor paired with the motorized lens supports the full 4MP resolution at 30 fps across all focal lengths. The turret form factor enables straightforward wall or soffit mounting while the motor-driven iris compensates for varying daylight conditions.
Imaging performance and low light
The O4DT6M integrates true day/night functionality with infrared illumination for 24/7 surveillance capability. True WDR (wide dynamic range) processing enhances image quality in mixed-lighting environments, such as building entrances with bright exterior conditions and shadowed interior zones. The 1/3" CMOS sensor maintains sensitivity across the visible and near-infrared spectrum, enabling effective monitoring during dawn, dusk, and complete darkness. At 30 fps, frame rate remains constant across all zoom positions, ensuring smooth video playback and consistent motion detection accuracy.
Analytics and edge capabilities
The camera includes on-board motion detection analytics, enabling basic event triggering for alarm integration and activity logging. Motion detection thresholds and sensitivity tuning are typically configurable through the camera's web interface or management platform. Frame-level analytics occur at the edge (camera level), reducing bandwidth demand on the network and NVR storage. Integration with ONVIF Profile S–compliant VMS systems ensures compatibility with major recording and management platforms.
Video encoding and streaming
The O4DT6M supports H.265 (HEVC), H.264 (AVC), and MJPEG compression codecs. H.265 encoding reduces file size by approximately 50% compared to H.264 at equivalent quality, lowering storage requirements and network bandwidth. Multi-codec support allows adaptive streaming based on bandwidth availability and client capability. All three codecs stream at up to 30 fps at full 4MP resolution, with selectable bitrate control for bandwidth-constrained networks.
Network and security
ONVIF Profile S compliance ensures broad compatibility with third-party VMS, access control, and edge computing platforms. The camera connects via standard RJ45 wired Ethernet with integrated PoE support, eliminating the need for separate power infrastructure when deployed on PoE-capable switches. The included junction box simplifies outdoor wiring and connector management.
Environmental and durability ratings
An IP66 rating confirms protection against heavy water spray and dust ingress, qualifying the O4DT6M for outdoor mounting under eaves, on building facades, and in weather-exposed locations. The white housing variant aids thermal management in high-temperature environments. Operating temperature tolerance spans -40°F to 140°F, accommodating most North American and temperate climates. The lightweight 1.5 lb design reduces mounting bracket load and simplifies installation.
Power and installation notes
Power delivery is flexible: the O4DT6M accepts both PoE (802.3af) and 12V DC auxiliary supply. PoE operation consumes 6W, well within standard 802.3af allocations (15.4W), allowing daisy-chaining on budget-conscious deployments. DC 12V supply provides an alternative for legacy or isolated power systems. The included junction box houses connections and protects external wiring, streamlining outdoor installation and reducing field troubleshooting time. Motorized lens operation may require slightly higher instantaneous current during focus adjustment; verify PoE switch capacity for high-density multi-camera deployments.
What is included
- Speco O4DT6M turret IP camera
- Motorized 3.3-12mm varifocal lens
- Junction box for outdoor wiring
- Mounting hardware (standard)
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Speco O4DT6M during planning for mixed-use facility deployments. This turret camera strikes a practical balance between optical flexibility and network efficiency. The motorized lens eliminates costly repositioning calls after installation, and the included junction box significantly reduces field labor on outdoor runs. At 6W PoE consumption, the O4DT6M fits comfortably on standard 802.3af infrastructure.
Technical Highlights:
- Motorized varifocal lens (3.3–12mm): Focal adjustment without camera relocation; supports 4× optical zoom coverage expansion
- True WDR and day/night IR: Maintains usable image across dawn-to-dusk transitions and full darkness; handles backlighting and high-contrast scenes
- PoE and H.265 codec support: 6W power draw and H.265 compression reduce infrastructure demands on both power distribution and network backbone
- ONVIF Profile S compatibility: Integrates with mainstream VMS platforms without proprietary software licensing
Deployment Considerations:
- Motorized lens operation benefits from PoE switches with adequate headroom; in high-density arrays (8+ cameras), confirm switch capacity or use DC 12V auxiliary feeds for zoom-intensive setups
- IP66 rating and white housing suit outdoor soffit and wall mounting; pair with a UV-protected junction box in direct-sun environments to extend component lifespan
- Motion detection operates at the edge; configure sensitivity carefully to avoid false alarms in high-wind or variable-lighting locations
The O4DT6M is a reliable choice for integrators managing diverse facility types where optical flexibility and low-maintenance wiring simplify long-term operations. The combination of motorized focus, 4MP resolution, and PoE efficiency makes it a cost-effective option for mid-scale outdoor surveillance programs.
