Speco O2ID8M 2MP Intensifier IP Dome Camera

Speco Technologies O2ID8M 2MP Intensifier IP Dome Camera

Overview

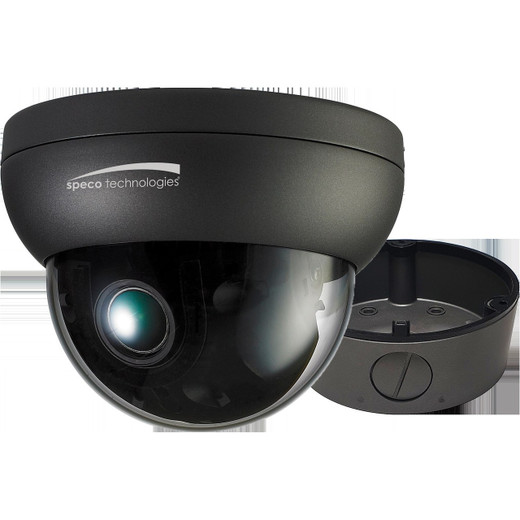

The Speco Technologies O2ID8M is a 2MP intensifier IP dome camera engineered for indoor surveillance applications requiring extended field-of-view coverage and motorized lens control. Built around a 2.7-12mm motorized varifocal lens, the O2ID8M delivers flexible focal length adjustment without requiring manual lens changes or additional equipment. The intensifier technology enhances low-light imaging performance, making it suitable for facilities where ambient lighting varies significantly or where supplementary illumination is unavailable. This model ships as a complete package with an integrated junction box, streamlining installation by consolidating power and network connectivity at the dome unit.

When this is the correct choice

The O2ID8M is the right selection for indoor deployments where scene coverage must adapt to changing facility layouts or where operators need flexible zoom framing without repositioning cameras. The motorized lens enables remote focal length adjustment via network control, reducing on-site commissioning time. Intensifier technology is particularly valuable in environments with low but non-zero ambient light—parking garages, lobbies, warehouse aisles, or storage areas—where IR illumination alone may be insufficient or undesirable. The included junction box eliminates the need for external power and network junction boxes, reducing installation labor and cable routing complexity.

When to choose a different model

If your deployment requires outdoor weatherproofing, vandal-resistant housing, or operation in IP66/IP67 environments, a weatherized or turret-form camera is necessary. Fixed-lens models may better suit applications where focal length is pre-determined and motorized control adds unnecessary cost. For very high-resolution requirements (4MP or greater), or for outdoor long-range IR surveillance, consult alternative product lines. Integrators requiring 24/7 operation in complete darkness should evaluate dedicated IR dome cameras with active IR illuminators rather than intensifier-only designs.

Optics and field of view

The 2.7-12mm motorized varifocal lens provides 16.2× optical zoom range, allowing integrators to frame wide-area overviews at the 2.7mm wide end or narrow focused views at 12mm telephoto. Motorized focus and iris control ensure sharp imagery across zoom positions without manual adjustment. The varifocal design accommodates variable mounting heights and scene distances, reducing the need for multiple camera models in mixed-distance deployments. Wide-angle framing at 2.7mm suits corridor and lobby monitoring; telephoto positioning at 12mm isolates detail in targeted areas.

Imaging performance and low light

Operating at 2 megapixels (1920×1080), the O2ID8M captures 1920×1080 resolution imagery sufficient for facial recognition at close range and license-plate reading in controlled conditions. Intensifier technology amplifies available light, extending usable imaging into twilight and low-ambient conditions without relying solely on IR. This approach produces naturalistic, colorized video in dim environments where standard sensors would fail, valuable for human activity monitoring and event verification when color context matters. The camera supports full-frame capture at up to 30 fps, enabling smooth motion video and reliable motion detection triggering.

Analytics and edge capabilities

Consult integrator technical resources for specific edge analytics capabilities supported by the O2ID8M. Network integration via ONVIF standards enables compatibility with major VMS platforms and third-party analytics applications. Local motion detection and event triggering are standard IP camera features; additional AI or behavioral analytics depend on VMS platform capabilities.

Video encoding and streaming

The O2ID8M encodes video in H.264 and MJPEG compression formats, balancing bandwidth efficiency with compatibility across legacy and modern VMS systems. Dual-stream encoding allows simultaneous remote viewing at reduced bitrate while recording at full quality, essential for multi-site monitoring over constrained network links. Configurable compression levels accommodate bandwidth-limited sites without sacrificing critical recording quality.

Network and security

ONVIF Profile S compliance ensures broad VMS compatibility and simplifies integration into mixed-vendor environments. Standard network authentication, encrypted credential handling, and firmware update mechanisms protect camera integrity. RTSP and HTTP streaming protocols support flexible deployment topologies.

Environmental and durability ratings

The O2ID8M is rated for indoor use. Consult mounting location requirements and ensure installation in controlled environments protected from weather, moisture, and mechanical shock. Typical indoor dome mounting on ceiling or wall surfaces is supported.

Power and installation notes

The included junction box integrates power distribution and network connectivity, eliminating separate external junction boxes and reducing installation time. Verify facility power supply and network infrastructure meet camera requirements before installation. Motorized lens control requires stable power to maintain focus and iris position. Ensure network bandwidth allocation accommodates dual-stream H.264 encoding at target frame rates and resolution.

What is included

• Speco Technologies O2ID8M 2MP intensifier IP dome camera
• 2.7-12mm motorized varifocal lens
• Integrated junction box for power and network distribution
• Dark grey dome housing

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I evaluated the Speco O2ID8M during planning for a multi-floor indoor facility retrofit where lighting levels vary between 10 and 50 lux depending on time of day and occupancy. The intensifier approach proved valuable here—it avoided the need for supplementary IR illumination in common areas while maintaining color-enriched video for investigative review. The motorized lens simplified commissioning significantly; we adjusted focal lengths remotely rather than scheduling on-site lens changes across multiple camera positions.

Technical Highlights:

• 2MP intensifier sensor: Delivers low-light sensitivity without relying on IR-only imaging; supports day/night operation with color retention in dim ambient conditions.
• 2.7-12mm motorized varifocal lens: Enables 16.2× zoom flexibility for variable scene distances; remote focus and iris control eliminate commissioning site visits.
• Included junction box: Consolidates power and network routing at the dome; reduces cabling labor and simplifies installation workflows.

Deployment Considerations:

• Confirm indoor mounting environment meets humidity and temperature stability requirements; this camera is not rated for outdoor or weathered exposures.
• Allocate adequate network bandwidth for dual-stream H.264 encoding; motorized lens control requires consistent power to maintain focus calibration.

The O2ID8M is a practical choice for integrators managing indoor surveillance in facilities where scene coverage varies and low-light sensitivity without IR infrastructure is preferred. Ensure your VMS platform supports ONVIF Profile S and H.264 encoding before deployment.
