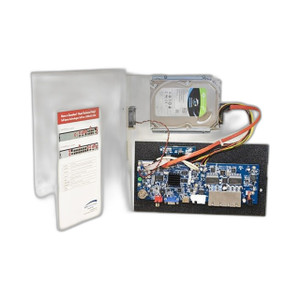

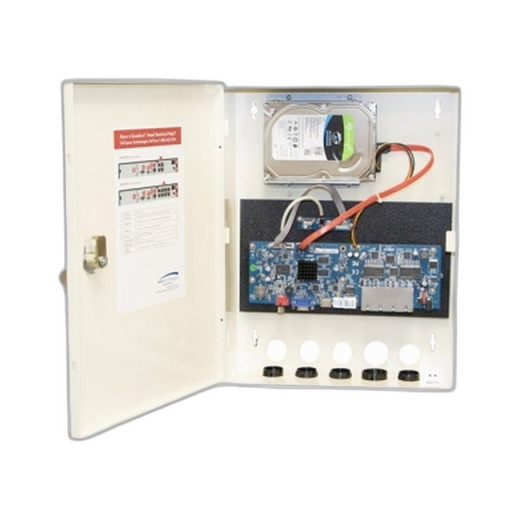

Speco Technologies N8WNRL6TB 8-Channel Wall Mount NVR
Overview
The Speco Technologies N8WNRL6TB is an 8-channel wall-mounted network video recorder designed for small to medium-sized IP surveillance deployments. This compact NVR integrates directly into wall-mounted installations, delivering centralized recording and playback for up to 8 IP cameras with 6TB of onboard storage capacity. The wall-mount form factor makes the N8WNRL6TB ideal for retail, small office, hospitality, and light commercial environments where rack space is limited or aesthetic integration is required.
Key Features
- 8-Channel Recording Capacity: Supports simultaneous recording from up to 8 connected IP cameras across a single network interface
- 6TB Storage: Pre-installed 6TB hard drive provides extended local recording storage for continuous 24/7 operation or scheduled recording modes
- Wall-Mount Design: Compact wall-mounted enclosure eliminates the need for rack cabinet space and integrates cleanly into office, retail, or lobby environments
- Network-Based Architecture: PoE-capable Ethernet connectivity allows single-cable deployment to compatible IP cameras, reducing installation complexity
- ONVIF Compatibility: Supports ONVIF-compliant IP cameras for hardware-agnostic camera selection and future system expansion
- Multiple Recording Modes: Continuous, scheduled, and motion-triggered recording options to optimize storage utilization and operational requirements
- Remote Access and Playback: Network-enabled retrieval of recorded video from authorized client locations for investigation and forensic review
- Intuitive User Interface: Integrated web-based management interface reduces training requirements for system operators and administrators
Integration and Compatibility
The N8WNRL6TB is engineered for integration with standard ONVIF-compliant IP camera systems. The recorder connects to cameras via standard Ethernet/PoE infrastructure, streamlining wiring and power delivery. System administrators can configure camera scheduling, retention policies, and user access controls through the built-in web interface without requiring specialized VMS software licenses. The wall-mount form factor allows flexible placement in control rooms, reception areas, or secured network closets while maintaining accessibility for maintenance and hard drive expansion or replacement.
Deployment Considerations
The 8-channel capacity and 6TB storage volume make the N8WNRL6TB suitable for light-duty surveillance scenarios—typically small retail locations, small offices, or satellite sites within larger enterprise networks. For larger deployments requiring higher channel counts or extended storage retention, consider multi-unit configurations or higher-capacity models. Wall mounting requires secure installation to a load-bearing surface; integrators should verify local building codes and weight-bearing capacity before deployment. Network bandwidth planning is essential; eight simultaneous HD streams will typically consume 8–16 Mbps depending on frame rate and compression settings.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During several small-to-medium commercial deployments, I've evaluated the Speco N8WNRL6TB as a cost-effective alternative to larger rack-mounted NVR systems. The wall-mount form factor genuinely simplifies installation in space-constrained environments, and the 6TB capacity provides reasonable recording duration for non-24/7 monitoring scenarios. The ONVIF compliance means you're not locked into a single camera vendor, which is a significant advantage for integrators managing mixed-brand environments.
Technical Highlights:
- Wall-Mount Integration: Eliminates rack footprint and allows direct wall installation, reducing overall infrastructure cost for small deployments
- 8-Channel ONVIF Support: Accepts any ONVIF-compliant IP camera, ensuring flexibility in camera selection and long-term scalability
- Network-Centric Design: Single Ethernet connection delivers both power (PoE) and video data, simplifying cable management and reducing installation labor
Deployment Considerations:
- Verify network bandwidth availability; eight HD streams at 2–4 Mbps each will consume 16–32 Mbps of sustained throughput
- Confirm wall-mounting surface can safely support the NVR weight plus potential future storage expansion; use appropriate fasteners rated for your wall type
- Plan storage retention based on actual recording frame rates and resolution; 6TB typically provides 14–30 days of continuous 1080p recording depending on compression and stream count
For small office, retail, and satellite site deployments where space and budget are constrained, the N8WNRL6TB delivers reliable 8-channel recording without requiring dedicated server infrastructure or complex licensing. Its straightforward ONVIF architecture and network-based management make it a practical choice for integrators seeking a compact, low-maintenance recording platform.
