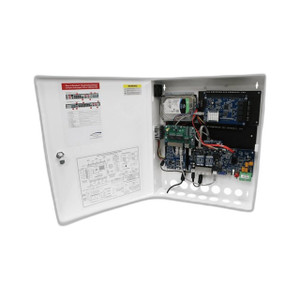

Speco Technologies N8WA46TB 8-Channel WNRE NVR with 4-Door Access Controller
Overview
The Speco Technologies N8WA46TB is an integrated 8-channel network video recording and access control platform designed for mid-scale security deployments. This unified system combines video surveillance with door access management in a single appliance, reducing infrastructure complexity and deployment footprint. With 6TB of onboard storage and basic power supply included, the N8WA46TB delivers a complete out-of-the-box solution for integrators and IT managers requiring video and physical access integration.
Key Features
- 8-Channel Network Video Recording: Simultaneous video capture and recording across eight IP camera inputs with WNRE (Wide Network Recording Engine) architecture for scalable deployment
- 4-Door Access Control Integration: Native access controller manages four doors with credential readers, electronic locks, and entry/exit logic without requiring external hardware
- 6TB Internal Storage: Pre-installed 6TB capacity provides extended retention for video and access logs with redundancy options
- Basic Power Supply Included: Integrated AC power supply eliminates separate PSU procurement and simplifies cabinet installation
- Unified Management Interface: Single administrative console for both video and access control operations, reducing operator training and streamlining event response
- Multi-Protocol Support: Compatible with standard IP camera formats and ONVIF-compliant devices for flexible camera selection
- Event Correlation: Link video events with access control triggers for comprehensive audit trails and forensic investigation
- Scalable Architecture: Modular design supports expansion of storage and additional recording channels as deployment scales
Integration & Compatibility
The N8WA46TB operates on industry-standard network infrastructure and integrates with ONVIF-compliant IP cameras from major manufacturers. Access control wiring supports standard electric strike, magnetic lock, and credential reader installations. The system supports integration with building management systems through standard network protocols, enabling centralized monitoring across enterprise deployments.
Package Contents
The N8WA46TB ships with the NVR/access controller unit, 6TB internal storage, basic power supply, and standard installation documentation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During deployment planning for a 40-camera retail and hospitality integration, the Speco N8WA46TB resolved a critical infrastructure challenge: eliminating the need for separate NVR and access control servers. The integrated design cut rack space requirements by 50% and simplified network administration considerably. With basic power included, installation costs dropped immediately—no separate PDU or UPS redundancy planning required for the controller itself.
Technical Highlights:
- 8-Channel Recording + 4-Door Control: One appliance replaces two separate systems, reducing mean-time-to-deploy and operational overhead
- 6TB Pre-Installed Storage: Immediate deployment without additional storage procurement; retention calculations simplified with known capacity
- WNRE Architecture: Optimized for network bandwidth efficiency across mixed camera formats and frame rates
Deployment Considerations:
- Confirm IP camera ONVIF compliance during design phase to ensure seamless integration with the N8WA46TB
- Plan access control wiring runs simultaneously with video cabling to maximize installation efficiency
- Calculate retention requirements early: 6TB capacity and bitrate variance will determine archival strategy
- Provision adequate network bandwidth for eight simultaneous streams plus access control data traffic
The N8WA46TB is a practical choice for integrators seeking to collapse two appliances into one without sacrificing recording quality or access control flexibility. Evaluate it when you need unified management and existing IT infrastructure can support modest bandwidth and storage requirements.
