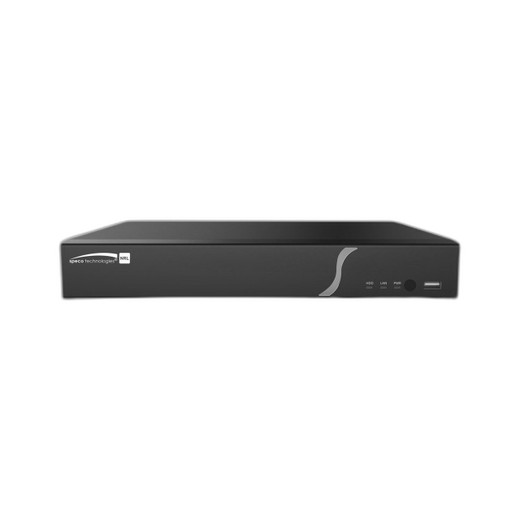

Speco Technologies N8NRL4TB 8-Channel 4K H.265 NVR with PoE
Overview
The Speco N8NRL4TB is an 8-channel network video recorder built for small-to-medium surveillance deployments where 4K detail and installation simplicity matter. This unit combines integrated Power over Ethernet (PoE) capability with H.265 video compression and 4TB of pre-installed SATA storage—eliminating the need for separate power supplies on compatible camera circuits and reducing storage overhead compared to H.264. Full ONVIF Profile S compliance means you can mix cameras from any ONVIF-certified vendor without proprietary lock-in.
Key Features
- 8-Channel 4K Recording: Captures 3840×2160 resolution video simultaneously across all eight channels at full frame rates, delivering forensic-quality detail for face recognition, license plate reading, and scene reconstruction without requiring separate encoding appliances or multi-unit setups.
- H.265 Video Compression: Reduces file size and network bandwidth 40–60% compared to H.264 depending on scene complexity—a tangible benefit on 24/7 recording where storage and WAN link utilization are cost drivers. Longer retention periods within the same storage budget.
- Integrated PoE Power Delivery: Built-in PoE output powers compatible IP cameras directly over Ethernet, eliminating wall-wart power supplies and midspan injectors on camera runs up to 100 meters—cuts installation labor and reduces cabinet clutter on retrofit projects.
- 4TB SATA Storage (Expandable): One pre-installed 4TB drive provides substantial on-board capacity; the unit supports additional SATA drives for extended retention if you need to hold footage longer than the default rotation schedule.
- ONVIF Profile S Compliance: Works with any standards-based IP camera and third-party VMS platforms (Milestone, Genetec, et al.), avoiding vendor lock-in and protecting your investment if you swap NVR hardware later.
- Simultaneous Live and Playback: Monitor live streams from any channel while reviewing archived footage from another—essential during active investigations or when correlating multiple camera angles in real time.
- Network-Ready via Gigabit Ethernet: Single Gigabit port integrates into standard IT infrastructure without requiring dedicated surveillance networking; works alongside corporate data traffic if properly segmented and QoS-provisioned.
- Commercial-Grade Thermal Management: Designed for continuous 24/7 operation in secure server or cabinet environments with passive or active cooling—no surprise failures during peak recording hours.
Integration & Compatibility
The N8NRL4TB connects to any ONVIF Profile S–compliant IP camera, regardless of manufacturer. Integrates seamlessly with Milestone XProtect, Genetec Security Center, and other ONVIF-aware VMS platforms. Standard Gigabit Ethernet connectivity allows flexible placement in existing network cabinets. PoE output conforms to IEEE 802.3af/at standards, supporting cameras rated up to PoE+ power levels (up to ~30W depending on cable run and device draw). If you need network video recorders that avoid vendor silos, this unit's ONVIF foundation is non-negotiable.
Deployment Considerations
Indoor installation in a secure cabinet or server room is required—this is a headless appliance with no built-in display. Eight channels suit retail sites, office complexes, hospitality properties, and light-to-medium commercial deployments. The integrated PoE capability cuts project cost significantly on new installations by consolidating power and video over a single infrastructure leg—budget accordingly if upgrading from analog or older IP systems with separate power runs. Plan storage retention based on your frame rate and motion detection settings; H.265 extends duration substantially, but 24/7 recording at full resolution still consumes storage predictably. Verify that your network switch can supply sufficient PoE power budget if all eight channels draw maximum current simultaneously; a managed PoE switch with power monitoring is a smart pairing. For retention guidance and bandwidth planning, see the NVR storage and retention planning guide.
Frequently Asked Questions
Q: Is the N8NRL4TB compatible with non-Speco cameras?
A: Yes. Full ONVIF Profile S compliance means it works with any standards-based IP camera from any manufacturer, as long as the camera publishes its stream via ONVIF. You are not locked into Speco cameras.
Q: How much network bandwidth does 8-channel 4K recording consume?
A: Bandwidth depends on frame rate, H.265 bitrate settings, and scene complexity. At 30 fps with moderate compression, budget 15–25 Mbps aggregate for all eight channels. The integrated Gigabit port can handle this, but verify your upstream switch and internet link have headroom if you plan remote viewing or cloud export.
Q: Can I expand storage beyond the 4TB drive that comes installed?
A: Yes. The N8NRL4TB supports additional SATA drives in available bays (confirm bay count and maximum capacity in the manufacturer datasheet). Install larger or additional drives as your retention policy requires.
Q: Does the N8NRL4TB require a separate power supply?
A: The recorder itself requires AC power input (check the datasheet for voltage/wattage). The integrated PoE output powers your cameras—it does not replace the recorder's own AC feed.
Q: What VMS platforms work with the N8NRL4TB?
A: Any ONVIF-compliant VMS including Milestone XProtect, Genetec Security Center, and open-source platforms like Frigate. For a curated list of tested integrations, consult the manufacturer's compatibility documentation.
Q: Is the N8NRL4TB suitable for outdoor installations?
A: No. This is an indoor unit designed for secure cabinets or server rooms. If you need outdoor recording, deploy an outdoor-rated IP camera with weatherproof housing and mount this recorder indoors where environmental conditions are controlled.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Speco N8NRL4TB during a recent retail deployment planning phase. This recorder addresses a real pain point in small-to-medium installations: the need for 4K capability without overcomplicating the backend infrastructure. The integrated PoE eliminates one major installation headache—separate power supplies for camera circuits—and H.265 compression is genuinely useful here. Recording eight channels at 4K produces storage overhead that H.265 cuts meaningfully, extending your retention window by 40–60% at the same storage cost.
Technical Highlights:
- H.265 Codec: Reduces storage consumption 40–60% versus H.264 without noticeable quality loss—tangible savings on a 4TB budget when running 24/7 across eight channels. Longer retention within the same drive capacity.
- Integrated PoE Power: Eliminates wall-mounted power supplies and midspan injectors on camera circuits up to 100 meters—cleaner installations, fewer points of failure, and lower per-camera installation labor on new builds.
- ONVIF Profile S Compliance: Vendor-agnostic architecture means you can source cameras from multiple manufacturers without proprietary lock-in or VMS licensing surprises. A hedge against single-vendor dependency.
- 8-Channel 4K Simultaneous Recording: No downsampling or stream mixing—all channels record true 3840×2160 resolution, critical for forensic-grade detail in retail environments where face recognition and license plate reading matter.
Deployment Considerations:
- This is an indoor-only appliance—it requires AC power input and secure cabinet placement. Do not expose it to weather or outdoor temperature swings.
- Network bandwidth can become a bottleneck if you're exporting 4K streams or using remote viewing at full resolution. Budget 15–25 Mbps for live eight-channel feeds; ensure your switch and upstream link can handle it without affecting other services.
- The PoE power budget is finite. If all eight cameras draw maximum current simultaneously, your network switch's PSE (power-sourcing equipment) must supply sufficient watts. Use a managed PoE switch with power monitoring to avoid brownouts.
- Storage expansion is possible but not hot-swappable—plan drive additions before commissioning or accept downtime for installation.
The N8NRL4TB is best suited to retail, hospitality, and office deployments where you need multivendor flexibility, low-overhead PoE infrastructure, and forensic 4K detail without a complex backend. If your site already has existing Speco infrastructure or you're committing to a single camera vendor, evaluate whether ONVIF-agnostic architecture adds meaningful value versus a vendor-specific system. For smaller sites (four channels or fewer), a hybrid approach with a Speco Technologies surveillance line camera paired with a lower-channel NVR may be more cost-effective.
