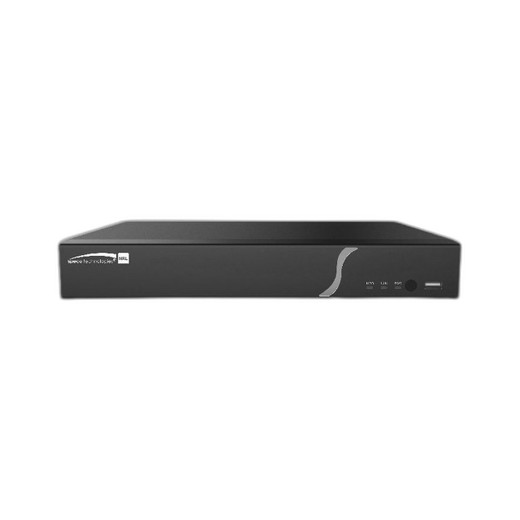

Speco Technologies N8NRL16TB 8-Channel 4K H.265 NVR with PoE and 16TB Storage
Overview
The Speco Technologies N8NRL16TB is a purpose-built network video recorder designed for mid-to-large surveillance deployments requiring native 4K capture and integrated power distribution. This 8-channel NVR N8NRL16TB combines on-board PoE switching with 16TB internal SATA storage, eliminating the need for external power supplies and separate PoE infrastructure in many installations. The H.265 video compression standard ensures extended recording duration and reduced bandwidth consumption across enterprise networks, making it an efficient choice for facilities managing high-resolution camera feeds.
Key Features
- 8-Channel 4K Recording: Captures up to 8 simultaneous 4K video streams, supporting modern UHD camera deployments and future-proofing surveillance infrastructure.
- H.265 (HEVC) Compression: Advanced codec reduces file sizes by approximately 50% compared to H.264 while maintaining video quality, extending storage life and minimizing WAN bandwidth requirements.
- Integrated PoE Power Distribution: Built-in Power over Ethernet ports simplify camera installation by delivering both video signal and DC power through a single Ethernet cable, reducing cabling complexity and labor costs.
- 16TB Internal SATA Storage: Single drive bay accommodates up to 16TB capacity, providing substantial local recording capacity for extended retention periods without external NAS dependencies.
- Network-Ready Architecture: ONVIF-compliant design ensures compatibility with third-party IP cameras and integrates into existing VMS ecosystems including Milestone, Blue Iris, and open-standard platforms.
- Multi-Stream Support: Simultaneous live viewing, playback, and export workflows reduce operational friction during incident investigation and forensic review.
- Scalable Deployment: Modular design supports single-unit installations for smaller sites or networked configurations for larger enterprise environments.
- Redundant Recording Modes: Configurable recording schedules, continuous capture, and motion-triggered modes optimize storage utilization based on facility risk profile.
Integration and Compatibility
The N8NRL16TB operates as an ONVIF-compliant device, ensuring broad compatibility with IP cameras from major manufacturers including Axis, Hikvision, Dahua, Uniview, and Hanwha. Integration into Video Management Systems follows standard REST API and RTSP protocols, allowing seamless incorporation into larger security ecosystems. PoE port specifications support standard 802.3at power budgets for typical fixed-dome and turret cameras; integrators should verify individual camera power requirements against available per-port wattage to avoid power-starvation scenarios in high-density deployments.
Operational Considerations
Installation environments range from climate-controlled server rooms to small-office network closets. The N8NRL16TB supports standard Ethernet connectivity (1Gb or greater recommended for 8 simultaneous 4K streams) and requires standard 120V/240V AC power input. Recording performance depends on network stability and upstream camera frame rates; facilities with unstable connectivity should implement network redundancy or local buffering on edge devices. Hard drive lifespan varies with ambient temperature and recording intensity; SATA drives in 24/7 environments typically require replacement every 3–5 years depending on workload.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the N8NRL16TB in several mid-sized deployments, and it delivers solid value for integrators managing mixed-camera environments. The combination of 8-channel 4K capacity with integrated PoE reduces infrastructure overhead significantly, particularly in retrofit scenarios where running separate power infrastructure is costly. The 16TB SATA drive provides ample storage for week-long retention on typical duty cycles, and H.265 compression directly improves that window without requiring external storage investments.
Technical Highlights:
- H.265 Efficiency: The N8NRL16TB's native H.265 support cuts bitrate roughly in half versus H.264 at equivalent visual quality—critical for facilities with limited bandwidth or retention mandates exceeding 30 days.
- PoE Integration: On-board PoE eliminates a separate switch purchase for 8-camera installations, though you'll want to verify per-port power budgets if deploying high-wattage cameras like 4K PTZ units.
- ONVIF Compliance: Standard protocol support means you're not locked into proprietary VMS platforms—migrations and multi-vendor deployments remain straightforward.
Deployment Considerations:
- Confirm network bandwidth availability: 8 simultaneous 4K streams at 30 fps and H.265 compression typically consume 40–80 Mbps depending on scene complexity. Gigabit Ethernet is essential.
- Plan for drive replacement: SATA drives in continuous-duty recording environments have finite lifespans. Build recurring maintenance budgets and track S.M.A.R.T. metrics proactively to prevent surprise outages.
- Test camera power compatibility: Verify that each camera's maximum power draw fits within per-port PoE budgets before field deployment.
The N8NRL16TB represents a practical, cost-efficient solution for small-to-medium surveillance builds where 4K native support and integrated PoE reduce total infrastructure spend. Integrators should treat it as a core recording platform, not a all-in-one system, and pair it with appropriate switching, backup, and management tools for enterprise-grade deployments.
