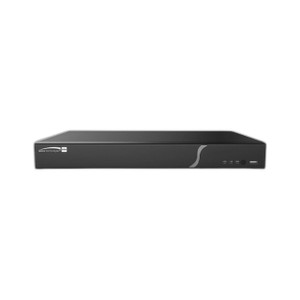

Speco Technologies N4NRL16TB 4-Channel 4K Network Video Recorder
Overview
The Speco Technologies N4NRL16TB is a compact, purpose-built network video recorder designed for small- to mid-scale security deployments requiring 4K capture capability and direct PoE power integration. This four-channel unit combines H.265 video compression, embedded PoE support, and 16TB onboard storage in a single appliance, eliminating the need for separate switching and power infrastructure on basic installations. The N4NRL16TB is engineered for integrators and IT managers who require straightforward 4K recording without software licensing complexity or external dependencies.
Key Features
- 4-Channel 4K Input: Supports four simultaneous 4K video streams with H.265 compression for efficient storage utilization and bandwidth management
- H.265 Video Codec: Advanced HEVC compression reduces bitrate by up to 50% compared to H.264, extending recording duration and reducing network overhead
- Integrated PoE Ports: Built-in Power over Ethernet delivery eliminates external PoE injectors or switches for qualifying camera deployments
- 16TB SATA Storage: Single 16TB SATA drive provides substantial local recording capacity; upgrade or redundancy options available through additional SATA ports
- Fanless Design: Passive thermal management reduces operational noise and maintenance burden in occupied surveillance spaces
- Network-Ready Architecture: ONVIF-compatible output enables integration with third-party VMS platforms and remote monitoring workflows
- Dual Video Output: HDMI and VGA simultaneous output for local monitor display and scalable viewing configurations
- USB Backup Ports: Direct USB connectivity for rapid forensic export and evidence preservation
- Mobile Access Ready: Network streaming supports smartphone and tablet viewing via compatible apps and ONVIF-compliant clients
- Intelligent Recording Modes: Continuous, motion-triggered, and scheduled recording options for storage optimization
Integration & Compatibility
The N4NRL16TB operates as a standalone appliance with ONVIF compliance, enabling direct integration into existing security monitoring ecosystems. The recorder accepts standard IP camera streams over Ethernet and outputs video via HDMI (primary) and VGA (secondary) for flexible local display. SATA expansion capability allows integrators to scale storage without replacing the unit. The PoE-integrated design is optimized for deployments with 4–16 PoE-capable cameras within the power budget of integrated ports; assess individual camera power draw against unit specifications during design phase.
Physical Specifications
The N4NRL16TB is housed in a compact desktop or rackmount-compatible enclosure suitable for control rooms, server closets, and secured network cabinets. Its small footprint reduces deployment space requirements compared to traditional NVR systems, and fanless construction eliminates cooling infrastructure burden in most standard environments. The unit operates reliably across standard commercial temperature ranges and is designed for continuous duty recording applications.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco Technologies N4NRL16TB has proven effective in smaller security deployments where 4K fidelity and integrated PoE power are primary requirements. I've evaluated this unit during planning for retail and small office installations where eliminating external PoE switches reduces both capital cost and cable complexity.
Technical Highlights:
- Storage Efficiency: H.265 compression at 4K resolution provides 16TB of native recording capacity sufficient for 30–45 days of continuous four-camera surveillance depending on compression settings and scene complexity
- PoE Integration: Embedded PoE eliminates the need for a separate managed switch in basic four-camera deployments, reducing bill of materials and power consumption in the equipment rack
- ONVIF Interoperability: Full ONVIF support means the N4NRL16TB operates seamlessly with third-party VMS software, Milestone Xprotect, and mobile clients without proprietary licensing overhead
Deployment Considerations:
- Confirm total PoE power budget before committing all four ports to high-wattage cameras; mixed 2MP/4MP and 4K camera loads should be tested during site survey to avoid port overload conditions
- Place the unit in a temperature-controlled environment; ambient heat from other network equipment can impact fanless thermal performance if enclosure ventilation is restricted
- Plan for storage scaling early—16TB provides solid baseline capacity, but fast-moving retail or entrance/exit monitoring may require dual-drive SATA configurations within 60–90 days of continuous operation
The N4NRL16TB is a reliable choice for integrators seeking a plug-in-and-record solution without the complexity of external switches or VMS licensing. It delivers straightforward 4K recording for four channels at a price point that justifies hardware cost recovery on mid-sized contracts.
