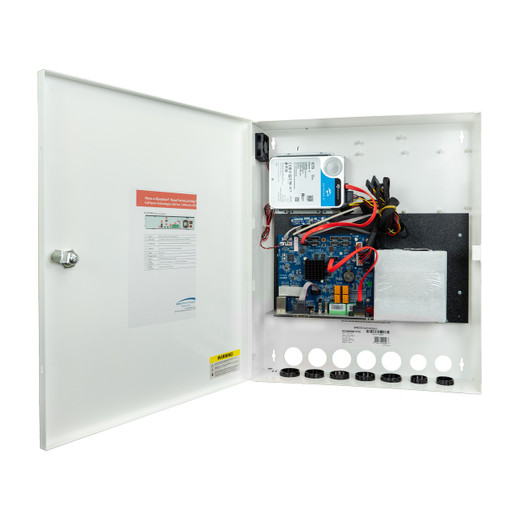

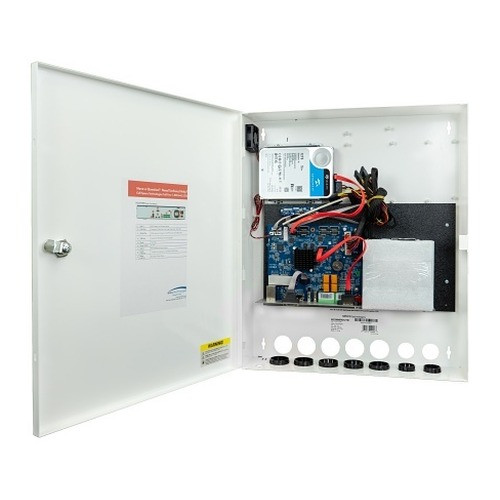

Speco Technologies N32WNRN12TB 32-Channel 4K H.265 NVR Wall Mount
Overview
The N32WNRN12TB is a 32-channel network video recorder built for wall-mounted deployment in security control rooms, monitoring centers, and enterprise SOCs. The unit ships with 12TB internal storage and H.265 video compression, which cuts storage footprint roughly in half compared to H.264 — a meaningful advantage when running 24/7 recording across three or four dozen IP cameras. Integrated facial recognition and event analytics eliminate the need for external VMS processing on smaller to mid-size camera arrays. ONVIF compatibility ensures interoperability across standard IP camera ecosystems.
Key Features
- 32-Channel 4K Recording: Handles simultaneous streams from 32 IP cameras at 4K resolution (3840×2160). On a 12TB drive, this translates to roughly 60–90 days of continuous retention depending on bitrate and scene complexity — sufficient for most enterprise retention policies without frequent offload cycles.
- H.265 Codec Support: Reduces bandwidth and storage consumption by 40–60% versus H.264 without visible quality loss in typical surveillance scenes. Matters directly when you're managing multi-camera retention on a fixed storage budget.
- 12TB Internal Storage: Onboard HDD capacity supports extended recording windows for forensic review and compliance archival. Eliminates reliance on external NAS or cloud staging for routine replay.
- Wall-Mount Form Factor: Design optimizes for control room and SOC deployment, where floor space is scarce and operator access to the interface is frequent. Mounting hardware is included in the box.
- Built-In Analytics and Facial Recognition: Edge-based detection reduces false-positive event logging and speeds forensic searches without offloading to a separate analytics server. Useful for environments where object counting, perimeter breach detection, or identity verification adds operational value.
- ONVIF Profile Support: Standardized protocol support ensures this NVR works with IP cameras from major vendors — Axis, Hikvision, Uniview, and others — without proprietary firmware lock-in. Simplifies integrator procurement and future camera upgrades.
Integration and Compatibility
The N32WNRN12TB supports any ONVIF-compliant IP camera, making it a versatile choice for integrators working with heterogeneous camera inventories. The wall-mount design suits retrofit installations in existing control rooms where rack space is unavailable or where operator proximity is essential. Setup via standard Ethernet — no specialized cabling or power conditioners required beyond basic network provisioning.
For warehouse automation and industrial environments, verify that your camera selection supports H.265 encoding if maximum storage efficiency is a priority. Older camera models may default to H.264, in which case you'll see baseline compression rather than the 40–60% savings the N32WNRN12TB is capable of delivering.
What's in the Box
- 32-Channel 4K H.265 NVR
- 12TB Internal Storage
- Wall Mount Hardware
When to Choose a Different Model
If your deployment requires more than 32 concurrent streams, consider a higher-channel-count variant in the Speco Technologies line, or evaluate a modular system architecture with multiple smaller NVRs. If you need rack-mount form factor instead of wall mount, a standard 1U or 2U enclosure from the same vendor may be more suitable. For smaller sites (8–16 cameras), a compact model with lower storage capacity will reduce idle power draw and capital cost.
Frequently Asked Questions
Q: Does the N32WNRN12TB work with non-Speco IP cameras?
A: Yes. The unit supports any ONVIF-compliant IP camera, which covers most major manufacturers including Axis, Hikvision, Uniview, and others. Verify ONVIF profile compatibility with your specific camera model before installation.
Q: How long will 12TB of storage last on a 32-channel system?
A: Retention depends on camera bitrate, resolution, and frame rate. With H.265 compression at mixed resolutions and typical surveillance scenes, expect 60–90 days of continuous 24/7 recording. High-motion scenes or maximum bitrate will reduce this window.
Q: Can I upgrade the storage in the N32WNRN12TB after purchase?
A: Check the manufacturer datasheet for HDD upgrade options and compatibility. Some NVR models support hot-swap or secondary drive bays; others do not. Contact the vendor for specific guidance on your unit.
Q: What network bandwidth does the N32WNRN12TB require for 32 4K streams?
A: Bandwidth depends on bitrate and codec. H.265 streams typically consume 4–8 Mbps per 4K camera depending on scene complexity. A 32-channel system may require 128–256 Mbps aggregate. Use a managed Gigabit switch with sufficient backplane capacity and PoE power budget for all cameras.
Q: Is the facial recognition feature compatible with third-party VMS platforms?
A: Facial recognition and analytics are integrated into the N32WNRN12TB itself. Export compatibility with external VMS platforms depends on ONVIF profile and API support. Verify with your VMS vendor whether they consume Speco analytics events via standard protocols.
Q: What warranty comes with the N32WNRN12TB?
A: Warranty terms are set by the manufacturer. Confirm the specific period with your specialty distributor or the OEM documentation included in the product package.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The N32WNRN12TB is a solid midrange recorder for integrators managing 24/7 deployments across 20–32 cameras. The combination of 12TB storage and H.265 compression gives you roughly 60–90 days of retention without external NAS — meaningful for compliance and forensic workflows. Wall-mount form factor and built-in analytics reduce hardware footprint and external processing dependencies.
Technical Highlights:
- H.265 Compression: Cuts storage footprint by 40–60% compared to H.264. On 12TB, this extends your retention window from maybe 45 days (H.264) to 70–90 days (H.265) depending on scene activity. Real money saved when you're buying and managing spinning drives.
- 32-Channel Throughput: Simultaneous 4K recording across all channels means no frame dropping on fast-moving scenes or during high-activity periods. Verify your network switch has the backplane capacity — 128–256 Mbps aggregate is typical for a full-house H.265 deployment.
- Integrated Facial Recognition: On-device analytics eliminate the need for a separate analytics VM or appliance. Useful for identity verification workflows, but test accuracy on your lighting and camera angles before committing to forensic-grade deployments.
Deployment Considerations:
- Wall-mount design assumes 24/7 operator access to the interface. If your control room is unstaffed most of the time, confirm that remote access and mobile client support meet your SLA requirements.
- Storage expansion path matters. Check whether the N32WNRN12TB supports secondary drives or external NAS failover. If you're locked to 12TB forever, plan your retention window carefully — don't discover at month 6 that you can't add capacity.
- H.265 bitrate varies with scene complexity. High-motion warehouse floors or parking lots will consume more bandwidth and storage than office hallways. Run a 48–72 hour pilot recording to calibrate your actual retention before going live on critical sites.
Right-size this unit for control rooms, command centers, and monitoring stations where operator proximity is routine and 60–90 day retention meets policy. For smaller deployments (8–16 cameras), you're paying for overkill. For larger multi-site operations (100+ cameras), architect a distributed system with multiple smaller recorders or a modular platform instead.
