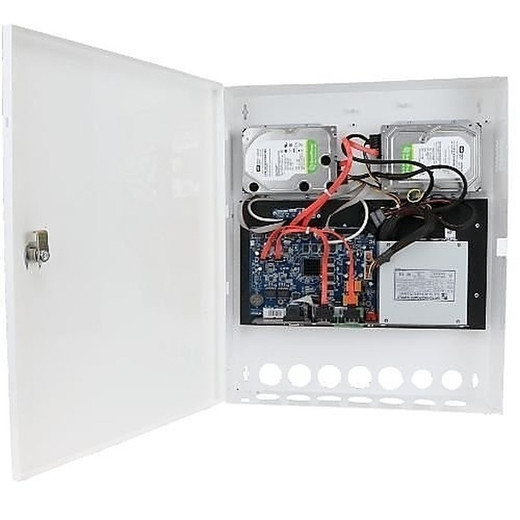

Speco Technologies N32WNRE24TB 32-Channel Wall Mount 4K NVR
Overview
The N32WNRE24TB is a 32-channel wall-mount NVR built for control room, NOC, and mid-scale multi-site surveillance deployments where you need 4K recording (up to 8MP at 30fps), H.265 compression, and integrated analytics without requiring separate processing hardware. The unit ships with 24TB onboard storage—enough for extended retention across all 32 channels depending on frame rate and resolution choices. Wall-mount form factor is optimized for space-constrained installations where monitor real estate and quick visual reference matter.
Compatibility
The N32WNRE24TB integrates with any ONVIF Profile S-compliant IP camera, including Speco IP camera lines and third-party manufacturers. The unit includes EZ Camera Discovery, which automatically detects and provisions Speco IP cameras on the local network without manual configuration. Eight SATA ports allow expansion up to 112TB total storage via standard 3.5" or 2.5" drives. Two eSATA ports support external archive or offload. Simultaneous HDMI (4K) and VGA outputs allow multi-monitor setups; remote monitoring, recording, playback, and PTZ control are available via internet-connected clients and mobile apps.
Key Specifications
Recording and Compression: H.265 cuts storage demand roughly in half compared to H.264—a critical factor when managing 24/7 recording across 32 channels. Real-time recording supports up to 8MP resolution at 30fps across all channels. Supports continuous, motion-triggered, analytics-triggered, and sensor-triggered recording modes.
Analytics and Search: Native facial recognition and object/line-crossing detection run on the NVR without external GPU or server. EZ Search 2.0 and Smart Search allow region-based event lookup from live or recorded video with instant thumbnail preview.
Audio and Monitoring: Two-way audio communication (requires external speaker) and instant playback per channel directly from live view.
Environmental: Operating temperature range -4°F to 122°F (-10°C to 50°C). Dimensions 430mm × 453mm × 89mm (16.9" × 17.8" × 3.5").
