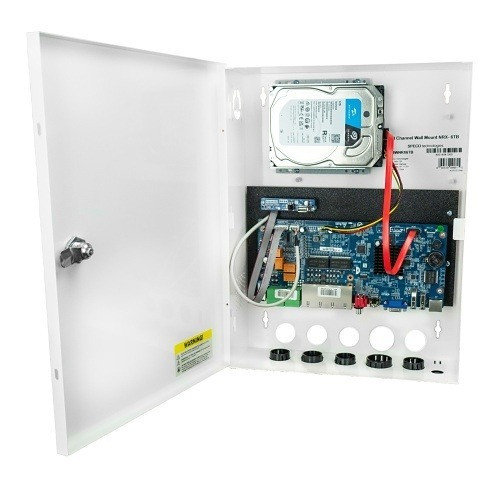

Speco Technologies N16WNRXM32TB 16-Channel Wall-Mount Network Video Recorder
Overview
The Speco Technologies N16WNRXM32TB is a wall-mounted network video recorder (NVR) engineered for space-constrained surveillance deployments where a self-contained recording and display solution reduces equipment footprint and installation complexity. Unlike traditional setups requiring separate recorder, storage expansion, and external monitor hardware, the N16WNRXM32TB integrates all three functions into a single wall-mounted unit. This approach cuts mounting points, cable runs, and power outlets — particularly valuable in retail environments, control rooms, and facilities management centers where wall real estate is premium and clean integration matters.
Key Features
- 16-Channel Recording Capacity: Manages simultaneous live feed ingestion and recording from up to 16 networked IP cameras. Multi-camera recording means you capture activity across distributed locations without bottlenecks — critical when camera density is high or when response-time decisions depend on concurrent footage from multiple zones.
- 32TB Built-In Storage: The N16WNRXM32TB ships with 32 terabytes of internal storage pre-installed, eliminating the need for external disk arrays or network-attached storage procurement. For continuous recording across 16 channels, 32TB typically provides 30–90 days of retention depending on frame rate, resolution, and compression ratio — substantially longer than small single-camera recorders. Storage sits within the same enclosure, reducing cable complexity and single points of failure from separate storage infrastructure.
- Integrated Display: Built-in monitor eliminates the need to source, mount, and power a separate display. On-unit screen supports live viewing, playback, and device configuration without requiring a separate workstation or external monitor. Reduces component count, power draw from external displays, and simplifies initial commissioning since configuration interface is immediately accessible.
- Wall-Mount Form Factor: Designed for mounting directly to wall surface, minimizing floor footprint and improving cable management overhead. Suits control rooms where desk space must remain clear, retail environments where equipment cabinets create sightlines problems, and facilities where vertical wall space is more available than horizontal.
- ONVIF Compliance: Compatible with any ONVIF-compliant IP camera from major vendors — Hikvision, Axis, Uniview, Vivotek, Dahua, and others. ONVIF standardization means camera selection is not locked to Speco proprietary models; you can source cameras based on performance, lens, and form factor requirements, then integrate them via standard protocols.
- Multi-Channel Simultaneous Playback: Supports playback of multiple channels at once, accelerating incident investigation and audit workflows. Rather than reviewing channels sequentially, operators can display 4, 9, or 16 streams concurrently and spot correlated activity across zones in real time.
Integration & Compatibility
The N16WNRXM32TB works with any standard networked surveillance environment. Network video recorders in this class assume gigabit Ethernet connectivity to camera infrastructure; confirm your network switch has sufficient PoE budget if powering cameras from the same infrastructure. Integration with PoE switches is typical for powering and transporting IP cameras over distance.
For organizations running Milestone XProtect, Genetec Security Center, or similar third-party VMS platforms, verify that your chosen management system supports ONVIF discovery and streaming from this recorder model before deployment. Most do, but confirming compatibility during the design phase prevents integration surprises at commissioning.
When to Choose a Different Model
If your deployment requires fewer than 16 channels, consider a smaller Speco NVR variant with 4, 8, or 12-channel capacity to reduce upfront storage cost. If integrated display is not a requirement and you prefer to manage the recorder via network-only interface (saving the cost of the built-in screen), a standard rackmount or desktop NVR without monitor may be more economical. For extremely high-resolution, high-frame-rate recording (4K/8MP+ across many channels), confirm that the N16WNRXM32TB's storage retention meets your forensic window — 32TB can fill rapidly under 4K continuous recording, potentially requiring external network storage supplements.
Frequently Asked Questions
Q: Is the N16WNRXM32TB compatible with my existing IP cameras?
A: Yes, provided they support ONVIF (Open Network Video Interface Forum) standards. This includes cameras from Hikvision, Axis, Dahua, Uniview, Vivotek, and most mainstream IP camera vendors. Confirm ONVIF Profile S compliance with your camera documentation before final integration.
Q: How long will 32TB store video from all 16 channels?
A: Retention depends on frame rate, resolution (1080p, 2K, 4K), and compression codec (H.264 vs. H.265). At 1080p, 30 fps, H.264, expect 30–60 days. H.265 compression can extend this 40–60% further by reducing file size. For exact retention calculations, provide your camera resolution and frame rate to the vendor.
Q: Can I expand storage beyond 32TB?
A: Storage expansion capability depends on the N16WNRXM32TB's internal architecture. Confirm with the manufacturer or your systems integrator whether the unit supports hot-swap drives, external RAID arrays, or network storage supplements before finalizing your retention plan.
Q: What is the warranty on the N16WNRXM32TB?
A: Warranty details are not included in available product documentation. Contact your specialty distributor or Speco Technologies directly for warranty term, coverage scope, and support options specific to your purchase.
Q: Does the integrated display support remote access, or is it local-only?
A: The built-in monitor is for local on-device display and configuration. Remote viewing and management typically occur through network software on workstations, mobile apps, or third-party VMS platforms connected via standard network protocols. Confirm remote software licensing and mobile app support with your distributor.
Q: What network bandwidth does the N16WNRXM32TB require?
A: Bandwidth depends on the resolution, frame rate, and codec of each camera stream. 1080p at 30 fps in H.264 typically consumes 3–8 Mbps per camera; 4K or H.265 can be lower. For 16 streams, a gigabit switch (1000 Mbps) is recommended to avoid congestion. Contact your systems engineer for bandwidth modeling specific to your camera selection.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The N16WNRXM32TB hits a specific need: you need 16-channel recording with integrated display in a space where floor-standing racks or desktop units aren't an option. The 32TB built-in storage is the real differentiator — it eliminates external NAS procurement and the bandwidth/latency management that comes with network storage. For retail chains managing multiple 16-camera zones across locations, or control rooms retrofitting older analog systems with IP infrastructure, this form factor cuts installation time and reduces component dependencies.
Technical Highlights:
- 16-Channel Simultaneous Recording: Each channel streams independently, so you're not bottlenecked by internal processing. Real-world benefit: if three incidents happen across different zones at the same time, all three are captured at full frame rate without frame dropping or quality degradation.
- 32TB Storage as Built-In Component: No separate SAN, no network overhead for storage traffic, no NAS power supply to fail independently. For 1080p@30fps H.264 across 16 cameras, expect 4–8 weeks of rolling retention. H.265 codec support (if enabled) doubles this window — material for forensic depth in retail loss prevention.
- Wall-Mount Eliminates Footprint Trade-Off: Vertical mounting means you're not surrendering desk or floor space for recorder hardware. Particularly valuable in older facilities where equipment room closets are small, or in retail environments where visible cable runs behind monitors look unprofessional.
Deployment Considerations:
- Verify gigabit network availability before commissioning. If your switch is oversubscribed or running older 100 Mbps backbone, 16-channel simultaneous recording will produce dropped frames or encoding delays. Budget for a dedicated managed switch with QoS if integrating into a congested network.
- Confirm storage expansion path early. 32TB covers standard 1080p retention windows, but if your requirements shift toward 4K, or if retention policy extends beyond 60 days, you need to know whether this unit supports external RAID, network storage failover, or hot-swap drive bays. Undersizing storage early is a common integration mistake.
- The integrated monitor is local-only. If your control room workflow requires remote viewing on workstations or mobile devices, you're dependent on a separate VMS or network software stack. This is standard practice, but budget for licensing and network bandwidth to distribute streams outside the facility.
Best fit: retail locations with fixed camera zones (checkout areas, entry/exit, stockroom) where you need a turnkey recording appliance without NAS complexity; control rooms managing 1–2 dozen camera clusters where wall mounting frees floor space; and organizations standardizing on ONVIF to avoid vendor lock-in on camera selection. Skip this if you're building a 100+ camera deployment — distributed NVR architecture or central VMS with shared storage scales better.
