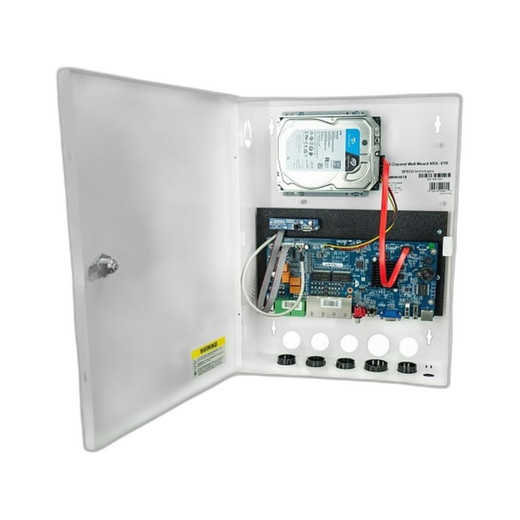

Speco Technologies N16WNRX2TB 16-Channel Wall Mount NVR with Facial Recognition
Overview
The Speco N16WNRX2TB is a 16-channel wall-mounted network video recorder built for indoor surveillance installations where facial recognition and rapid suspect identification matter. The 2TB integrated hard drive handles continuous recording across all 16 channels while the on-board deep learning engine processes video streams in real time, extracting facial data and matching against watchlists — a critical workflow in retail loss prevention, corporate security, and institutional access control. The wall-mount form factor fits control rooms and security offices where vertical space is at a premium and operator access to the UI is frequent.
Key Features
- 16-Channel Recording Capacity: Manages up to 16 simultaneous ONVIF IP camera feeds, so you can scale from smaller single-location sites to multi-wing facilities without parallel recorder hardware. Storage headroom depends on resolution and motion density — the 2TB drive handles 24/7 recording across moderate-resolution (1–2MP) streams for 7–10 days before overwriting begins, so retention planning is essential in high-motion environments.
- 2TB Integrated Storage: Pre-installed drive eliminates the field HDD swap at commissioning and reduces boot-to-operation time. The fixed capacity is not upgradeable, so overwrite behavior is fixed; audit your expected bitrate and retention window during design to confirm 2TB is sufficient. Typical playback scenarios (daily incident review, suspect matching) are comfortable here; continuous archival of all 16 channels beyond 14 days usually requires external NAS or cloud egress.
- Deep Learning Facial Recognition: The on-recorder AI processes incoming video to detect faces, extract templates, and perform database matching without exporting frames to an external server. Reduces investigative time by auto-flagging known subjects at ingest, lowers bandwidth cost (no per-frame cloud submission), and avoids unnecessary privacy exposure on third-party systems. Accuracy depends on face angle, lighting, and camera distance — frontal, well-lit faces at 3–8 feet deliver reliable matching; severe angles or low contrast degrade confidence scores.
- ONVIF Standards Compliance: Interoperates with ONVIF-compliant IP cameras from any major vendor (Axis, Hikvision, Uniview, Bosch, Hanwha, etc.), so you are not locked into a single camera brand. Integration with third-party VMS platforms (Milestone, Genetec, Exacq) is straightforward via ONVIF Profile S. This flexibility is valuable in retrofit projects or mixed-vendor environments where existing camera infrastructure must be preserved.

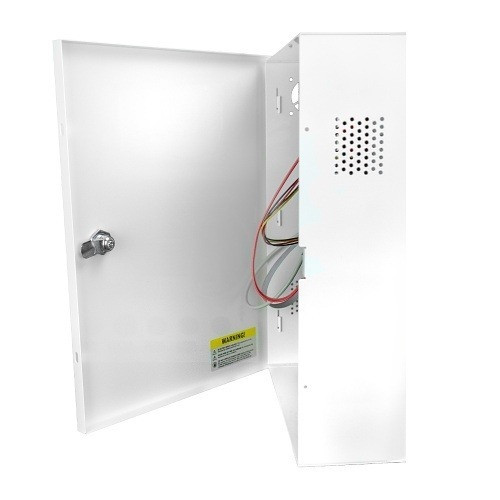

- Wall-Mount Enclosure: Compact vertical chassis designed for NOC and control-room mounting, saving desk and rack footprint. The form factor is fixed — do not expect this to fit standard 1U rack rails. Wired network and power connectivity (via included adapter) should be pre-planned before wall mounting to avoid visible cable runs.
- Network-Based Recording: Pulls video over Ethernet from IP cameras; no coaxial or analog connections. Requires adequate network planning — a fully loaded 16-channel recorder at moderate bitrate (2–5 Mbps per stream) can consume 32–80 Mbps sustained traffic. Gigabit Ethernet is standard and sufficient for most deployments; oversubscription or poor switch prioritization will cause frame drops and watchlist misses.
Integration and Compatibility
The N16WNRX2TB speaks ONVIF, so camera pairing is straightforward — add any ONVIF Profile S camera (which covers nearly all modern IP surveillance devices) via the web UI or mobile app. Facial recognition databases are loaded locally or synchronized from external directories depending on your deployment model. For large multi-site operations, consider whether a centralized VMS with federation is more cost-effective than managing separate recorders per location.
What's in the Box
- 16-Channel Network Video Recorder with 2TB HDD
- Power adapter
- Network cable
- Documentation and quick-start guide
When to Choose a Different Model
If you require more than 16 channels, Speco Technologies offers higher-channel-count recorders in the same family. If facial recognition is not a priority and you want to minimize on-device processing overhead, standard ONVIF recorders without AI analytics are lighter-weight and less expensive. For outdoor facial recognition (where environmental factors like rain, glare, and wide temperature swings affect recognition confidence), seek weather-sealed cameras with extended IR and confirm the VMS or recorder can handle lower-confidence matches gracefully.
Frequently Asked Questions
Q: Can I expand the 2TB storage or add external drives?
A: The 2TB drive is integrated and not user-replaceable in the field. Storage is fixed at 2TB. If retention requirements exceed the native capacity, you must plan for external NAS backup or cloud archival of older footage.
Q: What camera brands work with the N16WNRX2TB?
A: Any ONVIF-compliant IP camera integrates directly — Axis, Hikvision, Uniview, Bosch, Hanwha, Dahua, and others. Non-ONVIF cameras (older analog-to-IP converters, proprietary codecs) may not be supported; consult the compatibility matrix in the quick-start guide.
Q: Does the facial recognition work offline?
A: Yes. Facial detection and matching occur locally on the recorder without cloud dependency, so face detection and watchlist alerts function even if network connectivity drops.
Q: What is the typical retention for 2TB at 16 channels?
A: Retention depends on resolution, frame rate, and motion density. At 2–4 Mbps per stream (1–2MP moderate motion), expect 7–14 days of 24/7 recording before overwrite. High-motion environments (busy retail floors) consume storage faster.
Q: Is the N16WNRX2TB NDAA-compliant or manufactured in the USA?
A: Compliance certifications are not detailed in the available evidence. Contact the manufacturer or your integrator for NDAA Section 889 status if required by your procurement rules.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The N16WNRX2TB brings on-device facial recognition to a wall-mount form factor — a smart move for retail and corporate environments where speed matters more than multi-site federation. The 2TB storage paired with 16-channel capacity is a comfortable fit for single-location deployments, but the fixed drive size is a hard constraint you cannot work around in the field.
Technical Highlights:
- Deep Learning Facial Recognition: Local processing means no per-frame cloud cost, no privacy exposure on external servers, and no latency waiting for cloud inference — watchlist alerts fire as fast as the network can deliver frames to the recorder.
- 16-Channel ONVIF Flexibility: Build a mixed-vendor camera system (Axis for hallways, Hikvision for loading dock, Uniview for entry) and the recorder handles all of them transparently. ONVIF Profile S conformance is the key — confirm every camera meets that standard before purchase.
- 2TB Integrated Drive: No field replacement, no DIN-rail module swaps — commissioning is faster. But the trade-off is that you must right-size retention upfront. Miscalculate bitrate and you lose old footage sooner than expected.
Deployment Considerations:
- Network bandwidth planning is non-negotiable. Sixteen channels at average 3 Mbps each is 48 Mbps sustained — ensure your switch, upstream bandwidth, and VLAN design can handle it without drop-outs. Frame drops cause watchlist misses.
- Facial recognition accuracy is sensitive to camera angle and lighting. Expect higher confidence on frontal, well-lit faces at 3–8 feet; oblique angles or poor contrast (outdoor shadows, backlit subjects) reduce match probability. Test with your actual camera placement before full deployment.
- The wall-mount form factor is fixed — do not assume it fits existing rack or cabinet rails. Plan electrical and network runs before installation.
Position the N16WNRX2TB in retail loss prevention and corporate security scenarios where you need local AI matching without cloud dependency or multi-site VMS complexity. Single-location retail chains, warehouse access control, and institutional campuses with a central security office are the sweet spot.
