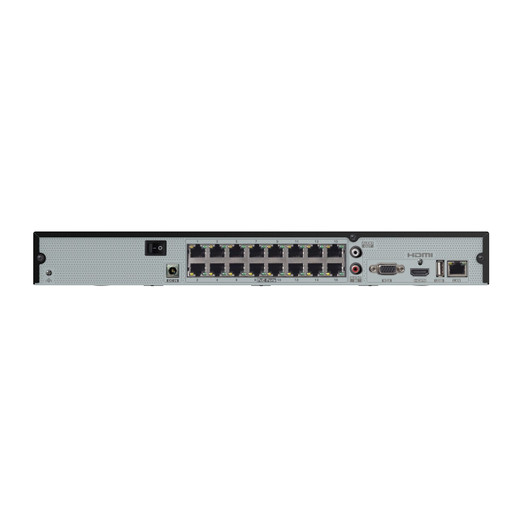

Speco Technologies N16NRM6TB 16-Channel 4K H.265 Network Video Recorder with PoE
Overview
The Speco Technologies N16NRM6TB is a professional-grade 16-channel network video recorder purpose-built for mid-to-large security deployments. This NVR combines 4K H.265 video compression, integrated PoE power delivery, and 6TB of onboard storage capacity in a single appliance, reducing infrastructure complexity and total cost of deployment. The N16NRM6TB is NDAA-compliant, meeting federal supply chain security requirements for integrators and government-facing installations.
Key Features
- 16-Channel 4K Recording: Supports simultaneous recording from 16 IP cameras at 4K resolution with H.265 compression, delivering superior image quality while reducing bandwidth and storage consumption versus H.264 workflows.
- H.265 Video Compression: Advanced codec reduces file sizes by up to 50% compared to H.264, enabling longer retention periods or higher frame rates on fixed storage.
- Integrated PoE Switch: Built-in PoE (Power over Ethernet) switch eliminates the need for separate power injectors or external switch infrastructure, streamlining installation and reducing bill of materials.
- 6TB HDD Storage: Pre-installed 6TB SATA hard drive provides substantial onboard recording capacity for extended retention periods, supporting 24/7 recording scenarios typical in commercial and institutional deployments.
- NDAA Compliance: Meets National Defense Authorization Act requirements, making the N16NRM6TB suitable for federal, state, and local government procurement, as well as critical infrastructure and higher-education deployments.
- Network-Ready Architecture: Operates as an ONVIF-compliant NVR, enabling integration with third-party IP cameras and VMS platforms for flexible system design and multi-vendor interoperability.
Integration and Deployment
The N16NRM6TB is designed to integrate into existing network infrastructure without specialized equipment. The integrated PoE switch delivers power and data to connected IP cameras over standard Cat5e/Cat6 Ethernet cabling, reducing installation time and on-site complexity. The appliance supports ONVIF Profile S and G standards, allowing seamless integration with cameras from Speco and third-party manufacturers. H.265 compression ensures efficient use of bandwidth, particularly valuable in installations where network capacity is limited or where extended retention is required on a fixed storage footprint.
Typical deployment environments include office buildings, retail chains, educational institutions, transportation facilities, and light industrial sites where 16-channel coverage is required and centralized storage is preferred over distributed edge recording. The combination of PoE integration and H.265 compression makes the N16NRM6TB particularly cost-effective for new-build projects where structured cabling is being installed.
Storage and Retention
The 6TB SATA drive enables extended recording retention. Actual retention depends on resolution, frame rate, and compression applied. H.265 encoding allows integrators to retain more footage on the same storage footprint compared to H.264 systems, reducing the need for external NAS or cloud storage in many deployments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco N16NRM6TB represents a solid mid-range appliance for integrators managing 16-channel installations in budget-conscious or government-regulated environments. During deployment evaluation, the integrated PoE switch and H.265 compression proved to be the primary value drivers—they simplify the bill of materials and extend storage retention without adding external infrastructure.
Technical Highlights:
- H.265 Efficiency: The N16NRM6TB's H.265 codec support delivers approximately 50% file size reduction versus H.264, directly extending your retention window on the 6TB drive or reducing bandwidth pressure on constrained networks.
- Integrated PoE Power: Built-in PoE switch removes the need for external injectors or separate managed switch, reducing BoM complexity and installation labor on 16-camera projects.
- NDAA Compliance: Verified NDAA compliance unlocks federal and state government procurement channels—a critical advantage for integrators targeting institutional or critical-infrastructure accounts.
Deployment Considerations:
- Verify that your network backbone has sufficient capacity for 16 simultaneous 4K streams; H.265 mitigates bandwidth demand, but oversubscribed switches will degrade performance.
- Plan PoE power budget carefully: 16 PoE cameras drawing full power (e.g., 95W each at PoE++) will exceed typical NVR PoE budgets. Confirm per-port power limits and camera wattage before final specification.
- Pre-stage ONVIF camera discovery and test camera compatibility in a lab environment to avoid field delays during installation.
- Configure H.265 frame rate and bitrate during setup; factory defaults are typically conservative to maximize retention, but may be tuned for higher quality if bandwidth permits.
For integrators handling government contracts, mid-market retail chains, or educational deployments, the N16NRM6TB offers a straightforward path to a compliant, PoE-integrated 16-channel solution with modern compression. The appliance is not positioned for high-end or outdoor weatherproofing, but excels in controlled indoor environments where centralized NVR recording is preferred over distributed edge storage.
