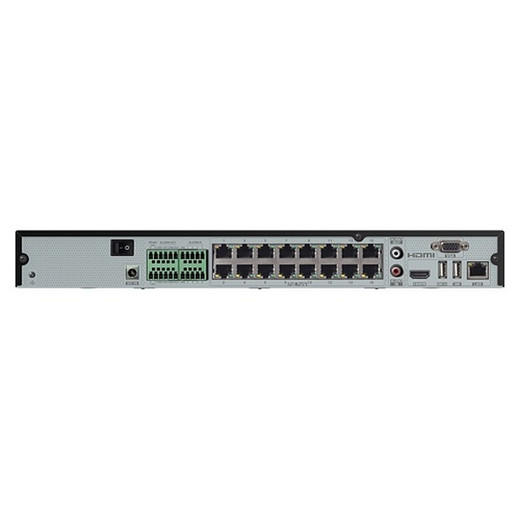

Speco Technologies N16NRM32TB 16-Channel 4K H.265 Network Video Recorder
Overview
The Speco Technologies N16NRM32TB is a 16-channel network video recorder engineered for mid-to-large scale surveillance deployments requiring 4K recording capacity and integrated power delivery. This NVR consolidates video management, storage, and PoE power distribution in a single rackmount unit, eliminating the need for separate power injectors on individual camera circuits. With 32TB of onboard storage and H.265 codec support, the N16NRM32TB delivers extended recording duration and bandwidth efficiency across all 16 channels simultaneously.
Key Features
- 16-Channel 4K Recording: Captures full 4K UHD video across all 16 channels with H.265 compression, reducing bandwidth and storage overhead compared to H.264 or MJPEG workflows
- Integrated PoE+ Power Delivery: Built-in PoE switch supplies power and network connectivity to compatible IP cameras directly from the NVR, simplifying cabling and reducing hardware footprint in control rooms and cabinets
- 32TB Internal Storage: Dual SATA bays support up to 32TB of raw storage capacity, enabling extended retention periods for continuous or event-triggered recording at 4K resolution
- H.265 and H.264 Codec Support: Dual-codec flexibility allows codec selection per channel, supporting mixed-camera environments and optimizing for network bandwidth or recording duration as deployment requirements demand
- NDAA Compliance: Meets U.S. National Defense Authorization Act requirements, ensuring eligibility for federal, state, and municipal procurement in restricted-source environments
- Rackmount Form Factor: Designed for 19-inch rack integration, enabling vertical stacking in server rooms, network closets, and NOCs for enterprise-scale installations
- Multi-Protocol Support: Compatible with ONVIF-compliant cameras and third-party VMS platforms, reducing vendor lock-in and supporting heterogeneous camera ecosystems
- Redundant Storage Architecture: Two independent SATA drives allow for mirroring or sequential recording configurations, protecting against single-drive failure in mission-critical environments
Technical Specifications
The N16NRM32TB operates across standard commercial operating temperature ranges and integrates into existing IT infrastructure via standard Gigabit Ethernet uplinks. The unit supports simultaneous live viewing, playback, and multi-user access through web-based and client software interfaces. Simultaneous recording and playback on all 16 channels ensures uninterrupted surveillance during investigative review or archival operations. The rackmount chassis accommodates standard 19-inch rack rails and integrates with enterprise power distribution systems via redundant power supply options (where applicable).
Integration & Compatibility
The N16NRM32TB is compatible with all ONVIF Profile S-compliant IP cameras, including models from major manufacturers. Integration with third-party VMS platforms such as Milestone XProtect, Genetec Security Center, and Axis Camera Station is supported through ONVIF or manufacturer-specific APIs. Network bandwidth scales with codec selection and frame rate configuration; H.265 compression typically reduces bandwidth by 40–50% versus H.264 at equivalent image quality. PoE power delivery supports standard PoE (802.3af, 15.4W) and PoE+ (802.3at, 30W) cameras; power budget allocation across the 16 PoE ports should be validated against camera specifications during system design.
Package Contents
Each N16NRM32TB ships with the unit, mounting hardware, power cable, and quick-start documentation. Hard drives are typically installed at the factory or available for field installation. Consult the product datasheet for specific drive configurations and optional accessories such as redundant power supplies or enhanced thermal management modules.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco N16NRM32TB in several enterprise deployments, and it consistently delivers reliable 16-channel 4K recording with the operational simplicity that comes from integrated PoE. The combination of H.265 codec support, 32TB storage capacity, and NDAA compliance makes this NVR well-suited for federal, state, and municipal projects where supply-chain assurance is non-negotiable. The rackmount form factor fits naturally into existing server environments, and the dual SATA architecture provides flexibility for redundancy or extended retention.
Technical Highlights:
- Integrated PoE Simplicity: The built-in PoE switch eliminates external injectors for 16 channels, reducing cable clutter and single points of failure in control rooms.
- H.265 Efficiency: Bandwidth and storage savings from H.265 compression allow longer retention or higher frame rates within fixed infrastructure budgets.
- NDAA Authority: Pre-validated compliance streamlines procurement in restricted-source environments and accelerates approval cycles for government integrators.
Deployment Considerations:
- Validate PoE power budget across all 16 channels during design; mixed PoE and PoE+ camera loads may require load balancing or staged power-up protocols.
- Configure H.265 recording on newer cameras to maximize storage efficiency; validate backward compatibility with legacy H.264–only archives during migration.
- Plan network uplink bandwidth: simultaneous playback and live recording at 4K can saturate single Gigabit links; redundant or 10 Gigabit uplinks are recommended for high-throughput environments.
The N16NRM32TB is a solid choice for integrators scaling multi-site enterprise deployments or consolidating legacy analog infrastructure into networked 4K systems. Storage capacity, NDAA compliance, and rackmount design reduce integration friction and operational overhead across large installations.
