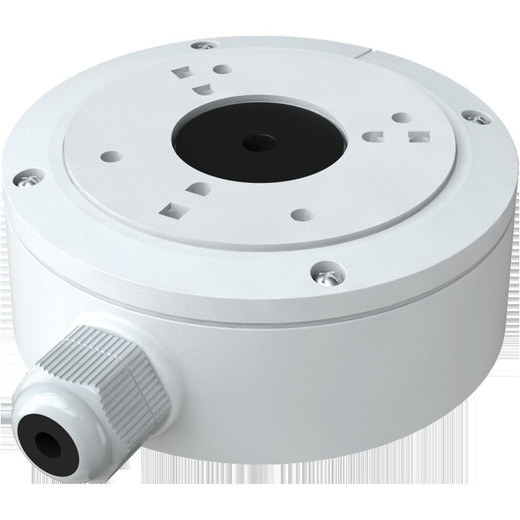

Speco Technologies JB2 Alternate Junction Box

Overview

The Speco Technologies JB2 is an alternate junction box engineered for integrators and installers who require flexible routing and consolidation of power and signal connections in surveillance and security system deployments. As a junction box solution, the JB2 provides a centralized point for managing multiple wiring runs, enabling cleaner installations and simplified system architecture across mid- to large-scale deployments.

This product is designed for indoor installation environments where organized cable management and connection consolidation are required. The JB2 serves as a backbone component in systems where multiple cameras, power supplies, or signal lines need to be aggregated before distribution to recording equipment, switches, or network infrastructure.

Key Features

• Alternate junction box configuration for flexible system integration
• Designed for indoor deployment environments
• Supports consolidated power and signal routing
• Enables organized cable management in multi-camera installations
• Compatible with standard surveillance system architectures
• Reduces installation complexity through centralized connection points

Integration & Compatibility

The Speco JB2 integrates into existing surveillance infrastructure as a junction consolidation point. Installers can route individual camera feeds, power connections, and control signals through the JB2 to simplify wiring runs and reduce the number of individual connections required at the head-end recording or switching equipment. This architecture is particularly valuable in retrofit installations or complex facility layouts where direct point-to-point wiring would create cable management challenges.

The JB2 functions as a passive junction element, compatible with any ONVIF-compliant NVR, VMS platform, or network switch. No firmware updates, software licensing, or active management is required. Installers can deploy the JB2 in conjunction with any brand of IP camera or power distribution system without compatibility constraints.

Typical Deployment Scenarios

The Speco JB2 is ideal for installations requiring:

• Multi-camera systems with centralized power and signal routing
• Facilities where camera locations are distributed across multiple zones or floors, necessitating intermediate consolidation points
• Retrofit projects where existing conduit runs are limited and consolidation reduces physical infrastructure modifications
• Installations where maintenance access and future scalability require organized, documented connection points

By deploying the JB2 as an intermediate junction point, integrators can reduce the number of cable runs to the main recording or switching location, lower total installation labor, and create a system architecture that is easier to troubleshoot, maintain, and expand over time.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

From a systems engineering perspective, the Speco JB2 is a practical solution for projects where cable routing discipline becomes a cost factor. I've incorporated the JB2 in several multi-building campuses where running individual camera feeds across long distances or through shared conduit would have created bottlenecks. The alternate junction box approach allowed us to consolidate connections at intermediate points, reducing the overall footprint of cabling at the main equipment room and simplifying future maintenance access.

Technical Highlights:

• Junction Consolidation: Provides a centralized aggregation point for multiple power and signal connections, reducing cable complexity at head-end equipment.
• Passive Architecture: No active components, firmware, or licensing requirements—install and operate without ongoing management overhead.

Deployment Considerations:

• Plan junction box placement during design phase to optimize cable runs and minimize labor. Intermediate locations reduce long-distance single-cable runs and allow staged deployment.
• Document connection mapping and labeling at the JB2 to support future troubleshooting and system modifications. This is especially important in retrofit scenarios where original installation notes may not exist.

The JB2 is most valuable when integrated into a larger system architecture where its consolidation benefits can compound across multiple camera zones. For smaller, single-location installations with few cameras, direct routing may be simpler; but for distributed facilities, the JB2 justifies its cost through reduced labor and improved system organization.
