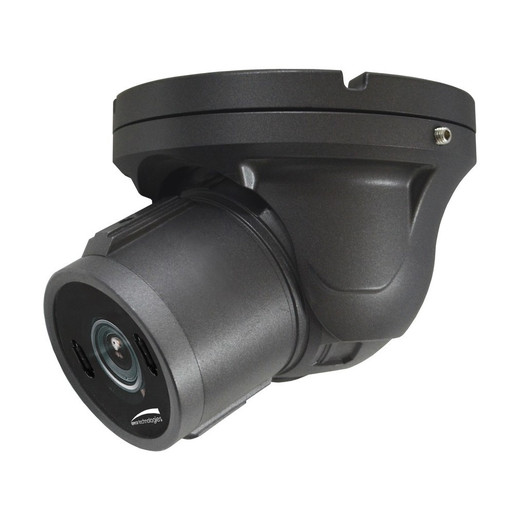

Speco Technologies HTINT601TA 2MP HD-TVI Vandal Turret
Overview
The Speco Technologies HTINT601TA is a 2MP HD-TVI turret camera engineered for high-impact environments where vandalism resistance and outdoor durability are non-negotiable. This camera delivers 1920×1080 full HD video over standard coaxial infrastructure, eliminating the bandwidth and switching overhead of IP-based systems in retrofit or cost-constrained deployments. The compact turret form factor, grey housing, and IK10 impact rating make it well-suited to retail loss-prevention, warehouse perimeter monitoring, parking structures, and industrial facilities where deliberate damage or accidental impact is a realistic threat.
Key Features
- 2MP HD-TVI Resolution: 1920×1080 full HD output via HD-TVI eliminates the need for network switches, PoE injectors, or VMS licensing per camera — a substantial cost advantage when retrofitting facilities with existing coaxial runs or deploying across dozens of locations.
- 3.6mm Fixed Lens with 84.4° Horizontal FOV: The fixed focal length removes focus-adjustment complexity during installation and eliminates motorized lens maintenance in the field. The 84.4° field of view is wide enough for mid-range coverage (typical retail aisles, warehouse bays, parking lot sections) without the distortion of ultra-wide lenses.
- IntensifierT Low-Light Technology: Proprietary sensor enhancement delivers usable footage in near-zero-light conditions without the noise typical of standard 2MP sensors. This matters in dimly lit storage areas, stairwells, or outdoor areas with minimal ambient light — you get continuous surveillance without auxiliary lighting.
- Built-in IR Illumination: Integrated IR LEDs provide night vision for 24/7 monitoring. No separate IR illuminator to install, power, or maintain, reducing bill-of-materials and simplifying wiring in confined spaces.
- IK10 Vandal Rating: The turret housing withstands 20 joules of impact — equivalent to a deliberate strike or accidental collision from equipment. This rating matters in high-risk environments where cameras are targets for theft or sabotage. Standard dome or bullet cameras typically max out at IK08 (5 joules), making this a real differentiator.
- IP67 Weatherproof Rating: The grey polycarbonate and metal construction handles rain, dust, salt spray, and temperature extremes from -40°C to 60°C. IP67 means direct rain won't degrade performance, though full submersion is not rated — if you need underwater deployment, specify a higher rating.
- TAA Compliance: Qualifies for federal, state, and municipal procurement processes where Buy American language is required. This simplifies purchasing in government-adjacent facilities.
- Compact Turret Footprint: Flush wall or ceiling mount with minimal protrusion reduces sightline obstruction and makes the camera less conspicuous — useful in retail or hospitality where visible security hardware affects customer perception.
Integration & Compatibility
The HTINT601TA integrates into HD-TVI DVR systems using standard RG59 or RG6 coaxial cabling. This architecture is a major advantage in retrofit scenarios: you reuse existing analog runs without pulling new Cat6a or dealing with PoE power budget constraints. The camera outputs 1080p TVI video directly to any HD-TVI recorder supporting 2MP input — verify your DVR's channel capacity and firmware version before ordering. If you're managing a mixed analog and HD-TVI system, the HTINT601TA transitions analog infrastructure to HD quality without replacing entire runs.
For outdoor camera deployments in high-risk or retrofit environments, the HD-TVI backbone significantly reduces integration complexity and per-camera licensing costs compared to IP-based alternatives. Consider a network video recorder or HD-TVI DVR with adequate channel capacity and storage for your retention policy. If you need guidance on storage sizing for 24/7 2MP recording across multiple cameras, consult a storage and bandwidth planning guide.
When to Choose a Different Model
If your deployment requires pan-tilt-zoom capability, motorized focus, or analytics (line crossing, object detection), the HTINT601TA's fixed 3.6mm lens and analog architecture will not meet those needs — consider a higher-resolution or PTZ variant in the Speco Technologies surveillance line. If you need wireless connectivity or edge-based AI processing, HD-TVI is not the right platform. If your facility is already heavily invested in IP infrastructure with modern switches and PoE, the cost-per-camera argument for HD-TVI weakens — evaluate IP cameras with comparable vandal ratings instead. The HTINT601TA is purpose-built for coaxial-legacy environments or cost-optimized new installations where impact resistance is paramount.
Frequently Asked Questions
Q: What is HD-TVI and why would I choose it over IP?
A: HD-TVI transmits full 1080p video over standard coaxial cable without requiring network switches, IP addressing, or VMS per-camera licensing. It's cost-effective in retrofit applications where coaxial runs already exist, or in facilities with limited IT infrastructure. IP cameras offer more flexibility, analytics, and zoom capability, but at higher per-unit cost and complexity.
Q: What is the effective night vision range of the HTINT601TA's IR?
A: The specification indicates integrated IR illumination with night vision capability, but effective range depends on target reflectivity and lens angle. Contact the manufacturer for distance specifications, or plan for close-range night monitoring (typical turret IR performs 10–15 meters reliably).
Q: Is the HTINT601TA compatible with my existing analog DVR?
A: The HTINT601TA outputs HD-TVI video, which is not backward-compatible with older analog (CVBS) recorders. Your DVR must support HD-TVI or 1080p TVI input. Check your recorder's manual or contact the DVR manufacturer to confirm compatibility before purchasing.
Q: Can I mount this camera on a ceiling?
A: Yes. The turret form factor supports both wall and ceiling mounting with minimal protrusion. Verify that your mounting surface can support the camera's weight and that coaxial runs are accessible at the mounting location.
Q: What is IntensifierT and how does it improve low-light performance?
A: IntensifierT is Speco's proprietary sensor enhancement technology that boosts low-light sensitivity without excessive noise or motion blur. It allows the camera to deliver usable footage in near-zero-light environments — useful in unlit storage areas or outdoor locations with minimal ambient light.
Q: Is the HTINT601TA NDAA-compliant?
A: The camera is TAA-compliant, which qualifies it for federal procurement. It is not explicitly marked as NDAA Section 889-compliant in available documentation. If NDAA compliance is a hard requirement, verify with the manufacturer or your procurement team.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the HTINT601TA in several high-impact retail and parking facility projects where camera durability directly affects operational costs. This model's IK10 vandal rating and HD-TVI architecture make it particularly effective in environments where traditional IP cameras face theft or intentional damage. The IntensifierT sensor technology delivers usable footage in near-zero-light conditions — a real advantage in warehouse loading areas or dimly lit stairwells where you can't justify auxiliary lighting.
Technical Highlights:
- IK10 Impact Rating (20 joules): Four times the impact tolerance of standard IK08-rated domes. In high-risk retail or industrial settings, this cuts replacement costs by eliminating repeat camera damage. Standard vandal domes won't survive the same punishment.
- HD-TVI over Coaxial: Full 1080p HD using existing RG59/RG6 runs — eliminates the cost and complexity of network switch upgrades or per-camera PoE power budgeting. Retrofit economics improve dramatically when you're converting analog systems with 50+ cameras.
- IntensifierT + Built-in IR: No separate illuminator to install or power. The sensor enhancement means you get usable nighttime footage in near-total darkness — parking lots, outdoor warehouse perimeters, and unlit storage areas require no additional hardware investment.
Deployment Considerations:
- HD-TVI requires a compatible DVR with 2MP TVI input capability — verify before ordering. Older analog recorders will not decode this signal. This is not a limitation of the camera, but a real integration checkpoint.
- The fixed 3.6mm lens is a strength (no focus drift, no motorized maintenance) but limits zoom and PTZ use cases. If you need wide-area monitoring with pan-tilt capability, this is not the right model.
- Coaxial runs longer than 400–500 meters may require line amplifiers or balun conditioning — plan your cabling layout before installation to avoid signal loss on extended runs.
The HTINT601TA excels in retrofit or greenfield deployments where coaxial backbone infrastructure exists, impact resistance is mandatory (retail loss-prevention, parking enforcement, outdoor equipment areas), and low-light performance matters. It's a specialist tool — specify it where its strengths (durability, cost-per-camera, legacy infrastructure support) outweigh its constraints (no zoom, analog-only output, DVR dependency).
