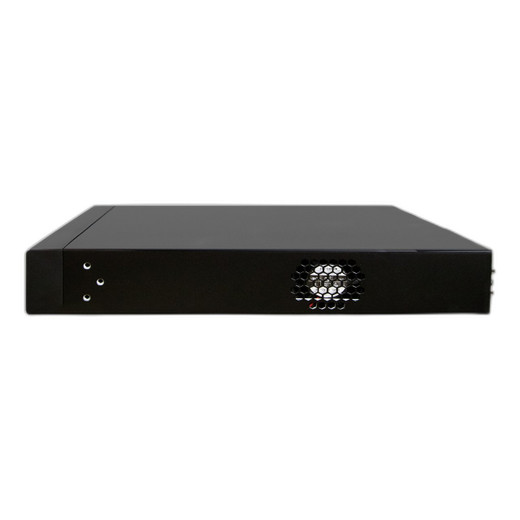

Speco Technologies H12HRN16TB 12-Channel Hybrid Recorder
The Speco Technologies H12HRN16TB is a 12-channel hybrid recorder designed for security integrators and system designers who require flexible input topology and substantial storage capacity. This model combines 8 hybrid channels (accepting either TVI or IP video inputs) with 4 dedicated IP channels, delivering a total of 12 recording channels in a single rackmount platform. With 16TB of internal storage, the H12HRN16TB supports extended retention periods for medium to large deployments.
Overview
The H12HRN16TB serves as a central recording platform for mixed analog-to-IP transition environments or IP-native systems with legacy TVI camera integration. The hybrid architecture eliminates the need for separate recorders when migrating from analog surveillance to IP video. This flexibility is particularly valuable for integrators managing multi-site deployments or phased system upgrades. NDAA compliance ensures suitability for federal, state, and local government procurement processes.
Key Features
- 8 Hybrid Channels (TVI or IP): Each channel can independently accept TVI analog video or IP network input, accommodating mixed-source surveillance infrastructure without hardware changes
- 4 Dedicated IP Channels: Additional channels for pure IP cameras, supporting network-based video without hybrid conversion
- 16TB Internal Storage: Provides extended recording duration across all 12 channels, with capacity for HD and higher-resolution video retention
- NDAA Compliant: Meets Department of Defense supply chain security requirements, critical for government and regulated institutional buyers
- Hybrid Input Flexibility: Reduces installation complexity by supporting both legacy TVI deployments and new IP camera additions on the same platform
- Rackmount Form Factor: Designed for standard 19-inch equipment racks, enabling organized deployment in control rooms and server environments
Integration & Compatibility
The H12HRN16TB's hybrid architecture is compatible with standard TVI cameras (1080p and higher resolutions) and any ONVIF-compliant IP camera. The recorder's ability to handle both input types simultaneously allows system designers to architect solutions that preserve existing TVI investments while extending into modern IP networks. This approach reduces total cost of ownership for integrators managing long-term customer retention and gradual system modernization.
Deployment Scenarios
The H12HRN16TB is well-suited for multi-location retail chains, government facilities, educational institutions, and corporate campuses where camera infrastructure spans both analog and IP sources. The 16TB storage capacity supports retention policies for locations requiring extended video archives. Government and municipal applications benefit from NDAA compliance, simplifying procurement and regulatory approval workflows.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco H12HRN16TB in pre-deployment architecture reviews for mixed-source surveillance environments, and the hybrid channel design addresses a real integration pain point: organizations transitioning from TVI to IP video infrastructure don't need to replace their recorder when adding IP cameras. The 12-channel capacity (8 hybrid + 4 IP) gives you meaningful flexibility without over-provisioning.
Technical Highlights:
- Hybrid Channel Economics: Supporting both TVI and IP inputs on the same physical channel means lower hardware cost and reduced rack space compared to parallel standalone recorders
- NDAA Compliance: Built-in compliance eliminates post-purchase certification delays for federal, state, and local government contracts—critical for institutional buyers
- Storage Density: 16TB internal capacity supports 24/7 recording across 12 channels at mainstream resolutions (720p–1080p) for 30+ days, depending on codec and resolution choices
Deployment Considerations:
- Verify network bandwidth requirements for the 4 dedicated IP channels when planning concurrent TVI recording; simultaneous high-resolution IP streams will reduce available storage duration
- Plan camera migration incrementally—hybrid channels can be converted from TVI to IP without system downtime, enabling phased upgrades without service interruption
The H12HRN16TB is a practical fit for integrators managing government accounts or organizations with multi-year surveillance infrastructure roadmaps. NDAA compliance removes a major approval barrier, and the hybrid design keeps procurement simple during the analog-to-IP transition window.
