Speco Technologies D16WVN6TB 16-Channel 4K TVI Wallmount DVR
Overview

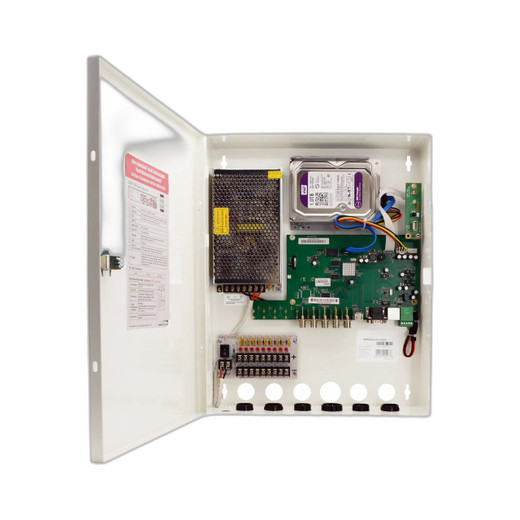

The D16WVN6TB is a 16-channel 4K TVI DVR designed for wallmount deployment in control rooms, server closets, and compact security command centers. It consolidates 16 TVI camera inputs at 4K resolution with 6TB internal storage, eliminating external NAS dependencies for standard 24/7 recording scenarios. The wallmount form factor fits tight spaces where rack enclosures or tower designs won't fit—common in retail operations, access-control offices, and small-to-medium security operations centers. TAA and NDAA certifications qualify it for federal and government-contracted integrations.
Compatibility
The D16WVN6TB accepts TVI video signals from Speco Technologies 4K TVI cameras and compatible third-party 4K TVI camera systems. It integrates directly into existing TVI infrastructures without requiring protocol conversion or hybrid management. Standard DVR workflows—live viewing, playback, export, scheduled recording—operate on the native TVI transport layer. Wallmount brackets and mounting hardware accommodate wall studs, post mounts, and compact vertical installations. Check your camera line's TVI output specification before integration; this unit does not downconvert HD or 1080p TVI sources to 4K.
Installation Notes
Wallmount installation requires secure stud-backed or reinforced drywall anchoring rated for the unit's weight and thermal load. Ensure adequate ventilation around intake and exhaust ports to prevent thermal throttling during sustained multi-channel recording. Connect TVI camera lines with shielded coaxial cable (RG6 or equivalent) to minimize signal degradation over distance. 6TB internal storage delivers extended retention for 16 channels at 4K; calculate your actual retention requirement based on frame rate, resolution, and motion-detection settings—continuous 4K recording across all 16 channels will exhaust 6TB faster than motion-triggered or lower-bitrate configurations.
